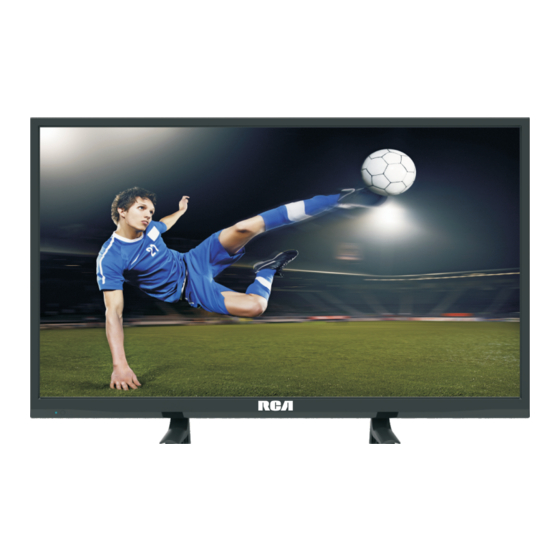

RCA RLDED3230A-RR Instruction Manual
  1. Manuals
  2. Brands
  3. RCA Manuals
  4. LCD TV
  5. RLDED3230A-RR
  6. Instruction manual

RCA RLDED3230A-RR Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Model:RLDED3230A-RR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLDED3230A-RR and is the answer not in the manual?

Questions and answers

Related Manuals for RCA RLDED3230A-RR

Summary of Contents for RCA RLDED3230A-RR

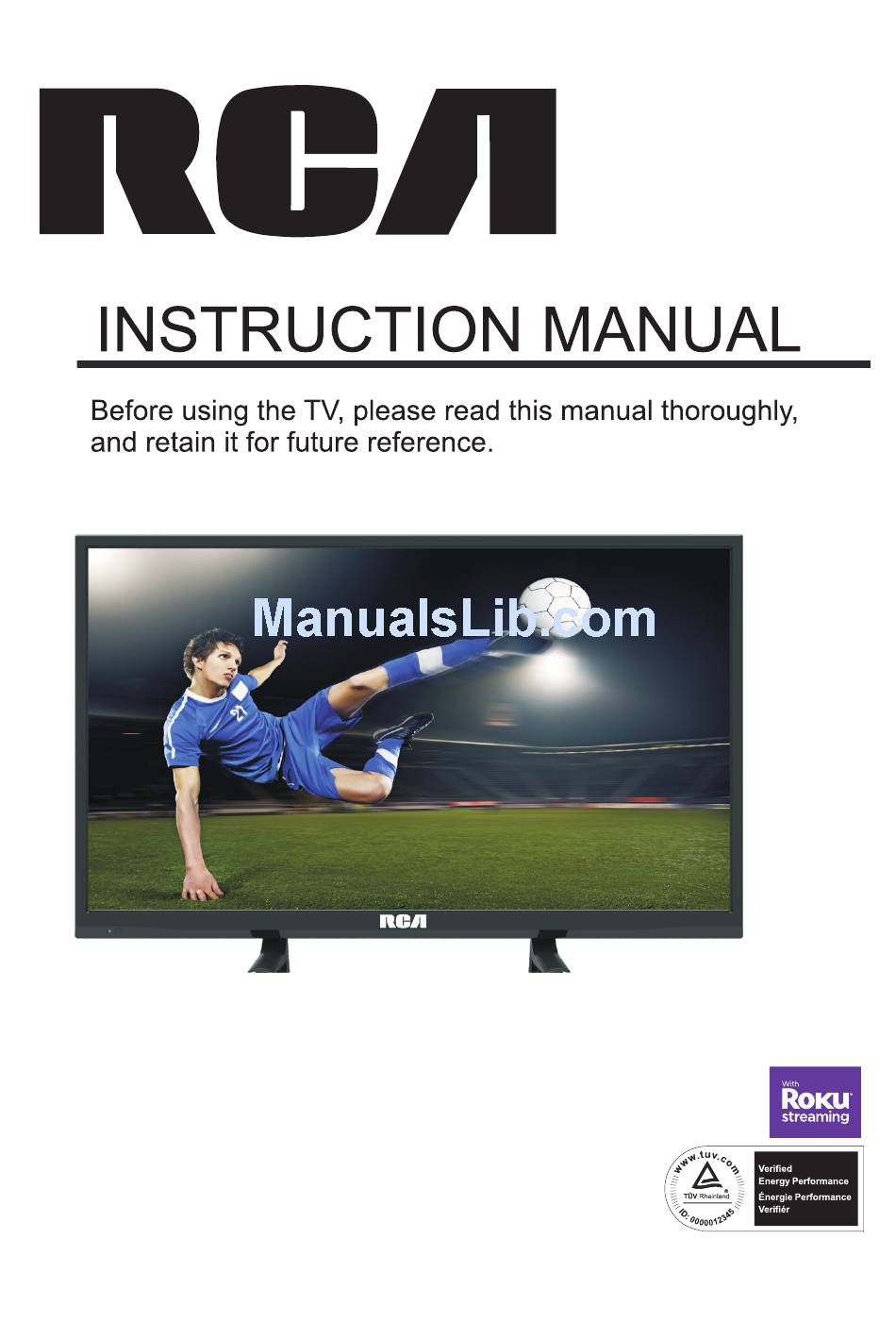

  • Page 1 Model:RLDED3230A-RR...

  • Page 4: Safety Precaution

    SAFETY PRECAUTION CAUTION MARKING WAS LOCATED AT THE REAR PLACEMENT INFORMATION OF THE APPARATUS. • Do not use this unit in places that are extremely hot, cold, dusty or humid. • Do not restrict the airflow of this unit by placing it somewhere with poor airflow, by covering it with a cloth, by placing it on bedding or carpeting.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1)Read these instructions. 12)Use only with the cart, stand, 2)Keep these instructions. tripod, bracket, or table 3)Heed all warnings. specified by the manufacturer, 4)Follow all instructions. or sold with the apparatus. 5)Do not use this apparatus near water. When a cart is used, use caution when 6)Clean only with a dry cloth.

  • Page 6: Getting Started

    ACCESSORIES Please check and identify the supplied accessories. Remote control ......................... Remote control Battery(AAA) ........................Warranty Card ........................ Instruction Manual ..................................... x 1 2 Base stands and 4 base stand screws GETTING STARTED USING THE REMOTE CONTROL ·Point the remote control at the remote sensor located on the unit. ·When there is a strong ambient light source, the performance of the infrared remote sensor ·may be degraded, causing unreliable operation.

  • Page 9: Front View

    CONTROL REFERENCE GUIDE FRONT VIEW 1.Color Screen 2.Remote Sensor Do not block this sensor or the remote control will not work. 3.Standby Indicator Indicates whether the unit is ON or in STANDBY (OFF) mode. Light in red: The unit is in STANDBY. Light in blue :The unit is turned ON.
  • Page 10 CONTROL REFERENCE GUIDE FRONT VIEW VOL- VOL+ MENU SOURCE STANDBY STANDBY Button Turn on the TV by pressing the button once. Press the button again to turn off the TV. Button 2. SOURCE Press to select the input source of the TV. Button 3.
  • Page 11 CONNECTIONS CONNECTING A TV ANTENNA / CABLE / SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system NOTE For receiving over-the-air TV broadcasts, we recommend that you use an external fixed antenna.
  • Page 12 CONNECTIONS CONNECTING A HIGH-DEFINITION (HD) SOURCE USING COMPONENT CONNECTION High-Definition (HD) Devices with component video output must be connected to the Y PbPr input. Connect the component video cable and audio cable (not included) as shown. Make sure you connect the component video cable and audio cable from the other equipment （COMPONENT OUT and AUDIO OUT）to the unit COMPONENT IN.
  • Page 13 CONNECTIONS CONNECTING A Connect the 15-pin D-SUB PC/VGA connector from your computer to the 15-pin D-SUB PC/VGA input on this unit using a monitor cable and an audio cable (not included) as shown. Make sure you connect the cable from the computer AUDIO - PC OUT ) to this unit AUDIO - PC IN...
  • Page 14 CONNECTIONS Connection to a Home Theater Audio System For BEST audio performance How To Setup Digital Output Connecting to a Home Theater System Press the MENU button on the remote control Press the right ► arrow button to select sound Dolby Digital can deliver optimal 2 channel stereo or surround sound with five discrete Press the down ▼...

  • Page 15: Wall Mount Installation

    WALL MOUNT INSTALLATION REMOVING THE BASE STAND INSTALLING : The LED D isplay i s v ery f ragile and m ust b e p rotected a t a ll t imes w hen r emoving t he b ase WARNING Stand Be sure that no hard or sharp object or anything that could scratch or damage the LED display comes into...

  • Page 16: Initial Setup

    INITIAL SETUP PUTTING THE UNIT ON A PROPER PLACE When you turn on your television set for the first time, be sure to place it on a solid stable surface. To avoid danger, do not expose the TV to water, or a heat source (e.g.

  • Page 17: Channel Menu

    TV SETUP CHANNEL MENU Press MENU button to display the main menu. Press ◄ / ► button to select CHANNEL in the main menu,it will highlight the first option. Setup Picture Sound Time LOCK CHANNEL Air /Cable Auto Scan Favorite Channel List Show Hide Channel Number...

  • Page 18: Picture Menu

    TV SETUP PICTURE MENU Press MENU button to display the main menu. Press ◄ / ► button to select PICTURE in the main menu,it will highlight the first option. Setup Picture Sound Time Picture Mode Standard Brightness Contrast Color Tint Sharpness Normal Color Temperature...

  • Page 19: Sound Menu

    TV SETUP SOUND MENU Press MENU button to display the main menu. Press ◄ / ►button to select SOUND in the main menu,it will highlight the first option. Setup Picture Sound Time Equalizer Settings Stereo Audio Language English Digital Audio Output Surround Sound Move Select...
  • Page 20 TV SETUP TIME MENU Press MENU button to display the main menu. Press ◄ / ►button to select TIME in the main menu,it will highlight the first option. Setup Picture Sound Time Sleep Timer Time Zone Pacific Daylight Saving Time Time Format 12-hour Auto Clock...

  • Page 21: Setup Menu

    TV SETUP SETUP MENU Press MENU button to display the main menu. Press ◄ / ► button to select SETUP in the main menu,it will highlight the first option. Setup Setup Picture Picture Sound Audio Time Time Lock Channel English English Menu Language Menu Language...
  • Page 22 TV SETUP LOCK MENU Press MENU button to display the main menu. Press ◄ / ► button to select LOCK in the main menu,it will highlight the first option. Press “0000” for the lock password. CHANGE PASSWORD This option allows you to change the LOCK menu password. SYSTEM LOCK This option enables parental locking and filtering for the TV.

  • Page 23: Let's Get Started

    Let’s get started.

  • Page 24: What You Need

    Roku Streaming Stick What you need Wireless Router High speed Internet...
  • Page 25 Know your Streaming Stick [MHL CONNECTOR] Plugs into the MHL port on the back of your TV. [STATUS LIGHT] Signifies it is on when lit, or activity when flashing. [RESET BUTTON] Used to reset your Streaming Stick...
  • Page 26 What to do Plug it in Plug your Roku Streaming Stick into the MHL port of your Roku Ready TV. Simple as that!
  • Page 27 Connect to network Now you can grab your remote and jump right into guided setup. Have your network name and password ready and do the following: Select your network from the list of available networks. Enter your network password, if you use one. Remember, network passwords are case sensitive.
  • Page 28 What to do (cont.) Complete guided setup It’s the final stretch and hooray—it’s on-screen instructions and you’ll: Get the latest software. Link the Roku Streaming Stick to your Roku account on your computer.
  • Page 29 Your Roku account: During setup, you’ll be prompted to create your Roku account online at roku.com/link. Your Roku Streaming Stick will generate a unique code that links your player to your new account. Roku accounts are free and secure. And while a valid credit card number is required to create your account, rest assured you will only be...

  • Page 30: Troubleshooting

    Troubleshooting Having trouble completing setup? Don’t worry: it’s usually an easy fix. If you cannot see a picture on your TV: Make sure your TV is turned on. (This tip could save you some embarrassment.) Make sure the video input on your TV or home theater receiver is set to match the output (usually HDMI or MHL)
  • Page 31 If you cannot connect to your wireless home network during guided setup: If you are not getting 3 or more signal-strength bars above your wireless network, adjust the location of your Roku Streaming Stick and/ or wireless router. Make sure there are no obstructions, like cement walls, between your Roku Streaming Stick and your...
  • Page 32 Troubleshooting (cont.) Make sure you enter the correct password, if your network is security-enabled (password is case sensitive). If you have turned o SSID broadcasting on your wireless router, you can add your network by selecting “My network is not shown” from the “Wireless”...
  • Page 33 (cont.) Make sure the volume on your TV or home theater receiver is turned up and isn’t on mute.
  • Page 34 Roku Streaming Stick Important Product Information The License Agreement The Roku and third-party software license terms can be found at: www.roku.com/ license. Use of the Roku Streaming Stick (“Streaming Stick”) constitutes acceptance of as well as agreement to those license terms. One (1) Year Limited Hardware Warranty Subject to the additional terms and conditions set forth below, Roku provides this Limited Warranty:...
  • Page 35 Important: with your request: (a) model number, (b) serial number, (c) problem description, (d) software version (located in the System Configuration menu), (e) date of purchase, (f) place of purchase (re-seller or online place of purchase), and (g) return shipping Scope of and Limitation on Warranty The warranty on the Streaming Stick is limited to the repair or replacement of defective units as described in the Limited Warranty section above.

  • Page 36: Important Note

    FCC Caution: responsible for compliance could void the user’s authority to operate this equipment. channels 1 through 11. Wireless Radio Use: band. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  • Page 37 Use and Handling of small children. Stick or accessories. humidity or direct sunlight. www.roku.com trademarks or registered trademarks of Roku, Inc.

  • Page 38: Display Mode

    DISPLAY MODE PC FORMATS Horizontal Vertical Resolution Format Scanning Frequency Scanning Frequency (KHz) (Hz) 31. 5 1024 1360 NOTE: This product does not support the display mode not listed above. In order to achieve the best display effect, please select the above-listed 5 display modes input signal.

  • Page 39: Video Formats

    DISPLAY MODE VIDEO FORMATS SUPPORTED COMPONENT / HDMI INPUT MODE Horizontal Vertical Resolution Scanning Frequency Scanning Frequency Format (Hz) 59. 94 480 i 31. 47 15. 734 59. 94 480 p 720 p 1280 37. 5 1280 720 p 1080 i 31.

  • Page 40: Specification

    G 0 7Vp p 75ohms PC RGB Input B 0 7Vp p 75ohms Input / R 0 7Vp p 75ohms Output 1.0 Vp-p, 75ohms RCA Composite Video Input Jacks Y: 1.0 Vp-p, 75ohms, 0.3V negative sync Component Y Pb Pr Input Pb: 0.7Vp-p, 75ohms Pr : 0.7Vp-p, 75ohms...

  • Page 41: Troubleshooting Guide

    TROUBLESHOOTING GUIDE SYMPTOM CAUSE AND REMEDY Bad Picture (snow, • Check the location of the antenna and adjust it if necessary. multiple images • Make sure the antenna cable is firmly connected. distortion,blurry) • Make sure all input cables are firmly connected. No sound.
