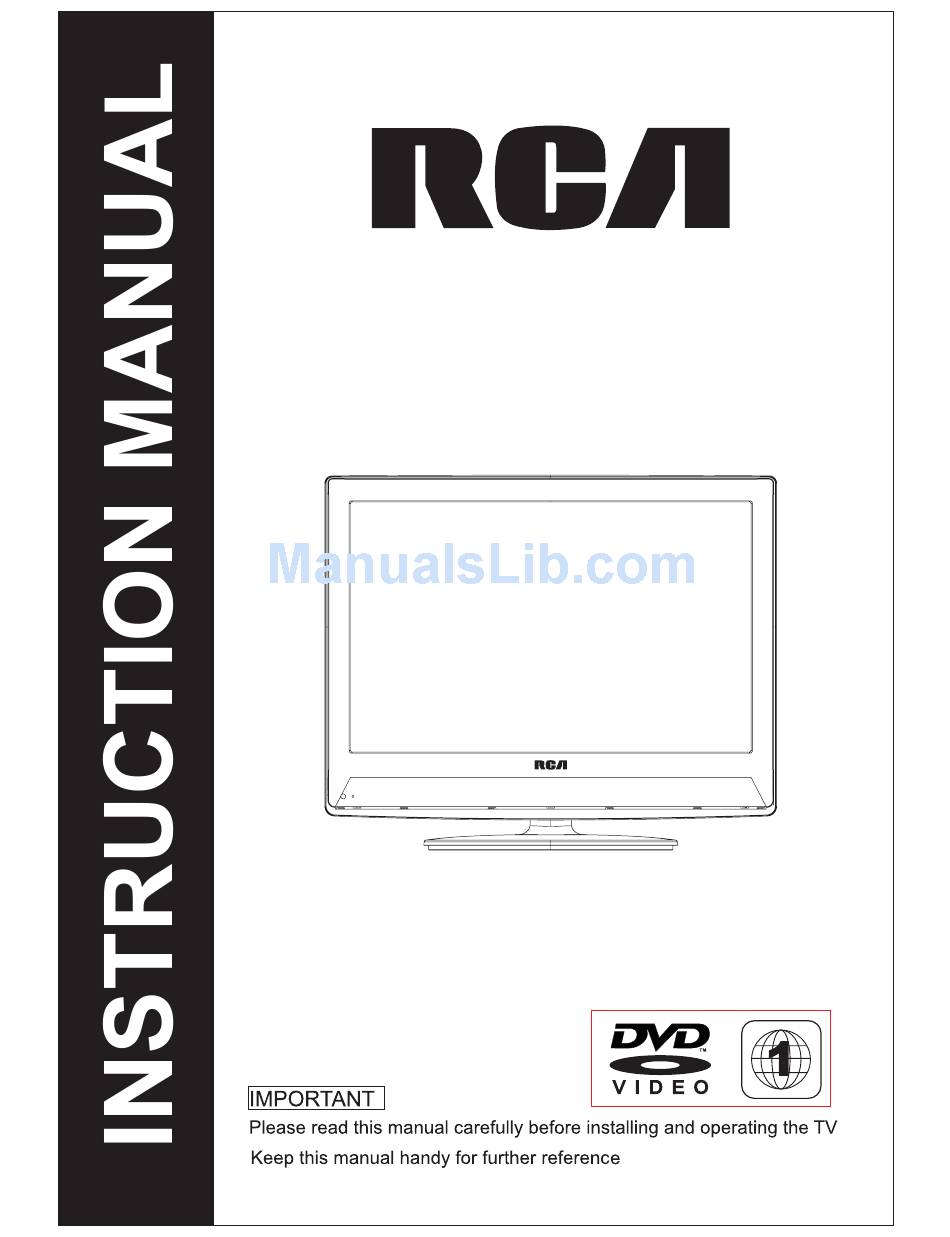

- Page 1 LCD TV RLCVD1924...
-
Page 2: Table Of Contents
Table of Contents Safety Information Important Safety Precautions INSTALLATION Front/Back panel diagram Remote Controller Battery Installation Using the Remote Control Install TV Set your TV Connect Antenna and power Turn On TV PICTURE MENU SOUND MENU TUNE MENU FUNCTION MENU PARENT CONTROL CHANGE PASSWORD TV RATOMG... - Page 4 Read these instructions Keep these instructions Heed all warnings Follow all instructions Please refer to the specification sheet on page Do not break the earth pin of the plug if the plug can not fit the electrical outlet please turn to the professional for help Please unplug the TV power cord when the following conditions occur When there is a thunder storm Please pull out the power cord and antenna When Cleaning the TV set...
-
Page 5: Installation
STANDARD INSTALLATION The TV can be installed in various ways such as on a wall, or on a desktop etc. The TV is designed to be mounted horizontally. Ensure that you connect the earth ground wire to prevent possible electric shock. if grounding methods are not possible, have a qualified electrician install a separate circuit breaker. - Page 6 STANDARD INSTALLATION b. Wall Mount: Horizontal installation (1) Secure the wall brackets with the bolts(not provided as parts of the product, must purchase separately) on the wall.Match the height of the bracket that is mounted on the wall. The wall bracket is of nomal dimension. Please see the position of the wall brackets bolts as follow picture.
- Page 7 NOTES OF WALL INSTALLATION (1) Keep the TV stand for may be future use. (2) Don’t set the TV set on shelves, carpets, beds, or closets. (3) Don’t cover the TV with curtain or paper. (4) Leave ventilation space to avoid the following: No good for ventilation No good for ventilation...
-
Page 8: Front/Back Panel Diagram
Front/Back panel diagram... - Page 9 Front/Back panel diagram INPUT VIDEO OUTPUT VIDEO YPbPr:Color difference components input and relevant video input S-VIDEO: Color and brightness difference components input. AV Output VGA/AUDIO: VGA audio input. S-VIDEO VIDEO ANT 75 ohm: Connect the antenna to the antenna input. HDMI Input: Digital signal input from HDMI video connector 14/15.
-
Page 10: Remote Controller
POWER : Sets your TV to power on or standby mode. MUTE : Press to mute the sound. Press again or press VOL+ to unmute. 3 0--9 Press 0~9 to select a TV channel directly while watching TV. The channel will change after 2 seconds.Applicable for entering page number in teletext mode and so on. -
Page 11: Battery Installation
17/19/20/21/31. When the DVD menu or system menu display on the TV screen and wait for selection, press these buttons to select an item in a menu. Moves an enlarged picture up/down/left/right. Press this button to confirm a selection. ZOOM In DVD source this buttons to adjust DVD picture size Press display button to show the information of the DVD player. - Page 12 side DC 12V Adaptor indicator...
- Page 14 Press Menu to exit sub-menu.
- Page 16 PG13 NONE NC17 Empty Empty 8 ANS + 13 ANS + 18 ANS + 16 ANS +...
-
Page 19: Osd Menu
Overview of Remote Control DVD Mode D.ENTER When in DVD mode use the arrows in the bottom section of the remote to operate the menus etc. EJECT BUTTON( ) Press the OPEN CLOSE button whenthe power is on the disc will eject Put the disc in the slot slightly with the data side facing towards you Press OPEN /CLOSE button again the disc is pulled in automatically and the unit starts playing... - Page 20 PLAY AND PAUSE BUTTON( Press this button to start playback Press this button again to pause playback. STOP BUTTON( ) STOP Press button once to stop Press to resume from where you stopped. STOP Press button Twice to stop Press to start from beginning In order to protect the disc STOP press...
- Page 21 ANGLE OF CHOICE Press “ANGLE” then you can enjoy the picture with different angle when you play multi-angle picture. Multi-angle means that take a photo from different scene. as follows: For example: the DVD discs have three different angles, Press “ANGLE”,TV will display as follows: ANGLE...
-
Page 22: Dvd Setup
DVD Setup Menu Interface Function... -
Page 25: Disc Care
Care of Disc Video disc contains high-density compressed data that needs proper handling. 1. Hold the disc with fingers by outer edge and/or the center spindle hole. Do not touch the discs surface. 2.Do not bend or press the disc. 3.Do not expose the disc to direct sunlight or heating sources, Stere discs in cabinet vertically, and in dry condition. -
Page 27: Resolution
Ripping line in Please use good quality connecting cable. RCA connecting Unplug the power cable and wait for 30 seconds, then connect.If there is Problem still some problem with our TV, do not repair it by yourself, please contact with exist the customer service center. -
Page 28: Specifications
SPECIFICATIONS Screen Size NTSC M PAL M/N TV system Video system NTSC/PAL AIR：2-69 Preset Channels VGA, A/VX2, S-VIDEO, HDMI, Y PBPR, Input/Output ANT 75 Audio output power 3Wx2 DC 12V Power requirement <48W Max. power consumption User's manual Accessories AC adaptor Supporting DVD Format This product can play the following DVD formats disc.
