  • Page 1

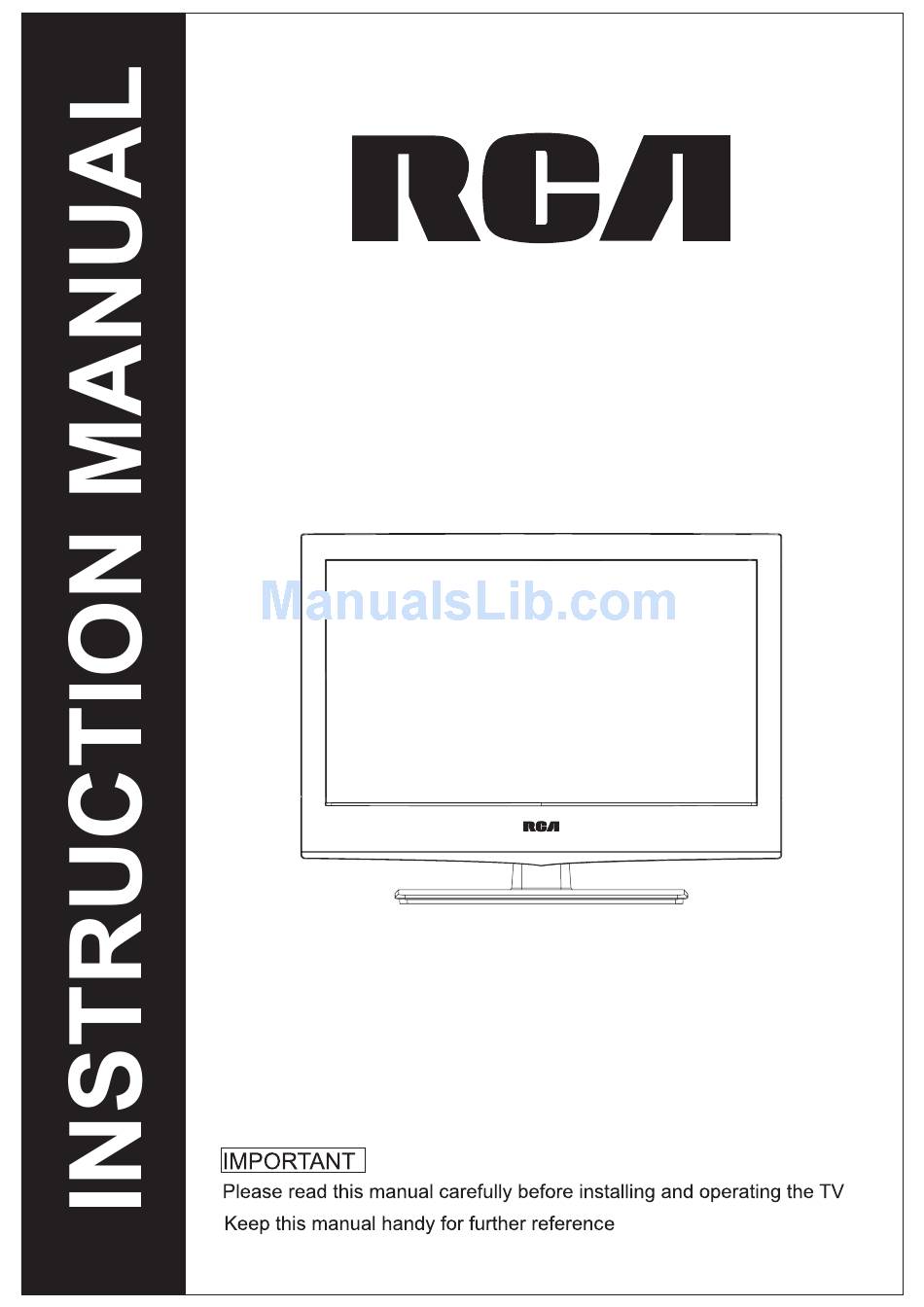

    LCD TV RLC2609...

  • Page 2: Table Of Contents

    Caution Important Safety Precautions Desktop TV Bracket Installation & Assembly Front/Back panel diagram Remote Controller Battery Installation Using the Remote Control Install TV Set your TV Connect Antenna and power Turn On TV Systems Connection AV Input S-Video Input PC Input HDMI Input Y Pb Pr Input EARPHONE Output...

  • Page 3: Caution

    Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 4

    Caution: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.2 19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). 20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

  • Page 5: Desktop Tv Bracket Installation Assembly

    Desktop TV Bracket Installation & Assembly cloth not include This products can be mounted on the plasterboard wall or other wall more better.

  • Page 6

    Side panel diagram YPbPr: Color difference components input and relevant video input S-VIDEO: Color and brightness difference components input. AV Output VGA/AUDIO: VGA audio input. ANT 75 ohm: Connect the antenna to the antenna input. HDMI1 Input: Digital signal input from HDMI video connector 14/15.

  • Page 7: Remote Controller, Battery Installation

    POWER : Sets your TV to power on or standby mode. MUTE : Press to mute the sound. Press again or press VOL+ to unmute. 0--9 Press 0~9 to select a TV channel directly while TV. The channel will change after 2 seconds.Applicable for entering page number in teletext mode and so on.

  • Page 8

    side indicator...

  • Page 9: Systems Connection, Av Input, S-video Input

    Systems Connection 1.AV INPUT/OUTPUT Video / Audio input, use the VIDEO Second DVD AV OUTPUT 2.S-VIDEO INPUT S-VIDEO input, use the SOURCE button select Second TV AV INPUT SOURCE button select S-VIDEO S-VIDEO VIDEO DVD S-VIDEO AUDIO OUTPUT on the remote control . AUDIO INPUT VIDEO...

  • Page 10: Hdmi Input

    Systems Connection 3.PC INPUT PC (VGA) input, use the VGA OUTPUT DVD VGA OUTPUT 4.HDMI INPUT HDMI input, use the SOURCE HDMI OUTPUT SOURCE button select PC AUDIO OUTPUT VGA OUTPUT button select HDMI HDMI OUTPUT on the remote control . AUDIO INPUT on the remote control .

  • Page 11: Y Pb Pr Input, Systems Connection

    Systems Connection 5.Y Pb Pr Input Y Pb Pr input, use the SOURCE button select Y Pb Pr Cb/Pb Cr/Pr Y Pb Pr Output on the remote control. AUDIO INPUT Audio Output AUDIO INPUT...

  • Page 12: Picture

    PICTURE Picture Mode: Select the picture mode. you can choose “STANDARD,DYNAMIC, SOFT,USER” Contrast: Adjust picture contrast. Brightness: Adjust picture brightness. Tint: Adjust NTSC colour signal. Saturation: Adjust picture color. Sharpness: Adjust picture sharpness. Colour Temp: Adjust picture colour temp: cool, normal, warm mode. Scale Mode: Select picture scale.

  • Page 13

    Sleep Timer: Select the sleep time to put automatically the TV in standby mode. Timer can be selected as 5min/10min/ 15min/30min/45min/60min/Off. Also you can select the sleep time by pressing SLEEP button repeatedly on the remote control CLOSE CAPTION:Select the caption and TEXT modes(CC1,CC2,CC3,CC4,TT1,TT2,TT3, TT4,OFF).

  • Page 14: Channel, Source Pip

    Multi Window Sub Source YPBPR Large Size Left Up PIP Position Blue Border Color Main Sound Source Swap :SEL :ADJ CHANNEL Auto Scan: press " then press Enter Channel Search Program. Fine Tuning: if there are something wrong with the quality of picture and sound of TV, press " to fine tune the tuner frequency, you can get the correct picture and sound.

  • Page 15: Geometry

    you can choose “STANDARD,DYNAMIC, SOFT,USER” GEOMETRY H Position: Adjust the H Position of the PC signal. V Position: Adjust the V Position of the PC signal. Clock: Adjust the clock of the PC signal. Phase: Adjust the phase of the PC signal.

  • Page 16: Resolution

    SOURCE S-Video Y Pb Pr HDMI HDMI 2 Resolution Vertical frequency Hz HD(Y Pb Pr) Resolution Vertical frequency Hz HDMI Resolution Vertical frequency Hz Press the MTS button: Usually set to stereo to provide the best reproduction, but if reception deteriorates or if the service is not Available then switch to Mono.

  • Page 17: Help

    Ripping line in Please use good quality connecting cable. RCA connecting Unplug the power cable and wait for 30 seconds, then connect.If there is Problem still some problem with our TV, do not repair it by yourself, please contact with exist the customer service center.

  • Page 18: Specifications

    SPECIFICATIONS Screen Size Viewing angle TV system Video system Preset Channels Input/Output Speaker Output Power requirement Power consumption Accessories NOTE: This user manual is for reference only. Specifications are subject to change without notice. 26” 175° (Horizontal) / 175° (Vertical) NTSC PAL/NTSC 1-200...
