RCA RLC5534A Instruction Manual

RCA RLC5534A Instruction Manual

55” lcd television
Hide thumbs
Table of Contents

Advertisement

Quick Links

55" LCD Television
MODEL: RLC5534A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLC5534A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RCA RLC5534A

Summary of Contents for RCA RLC5534A

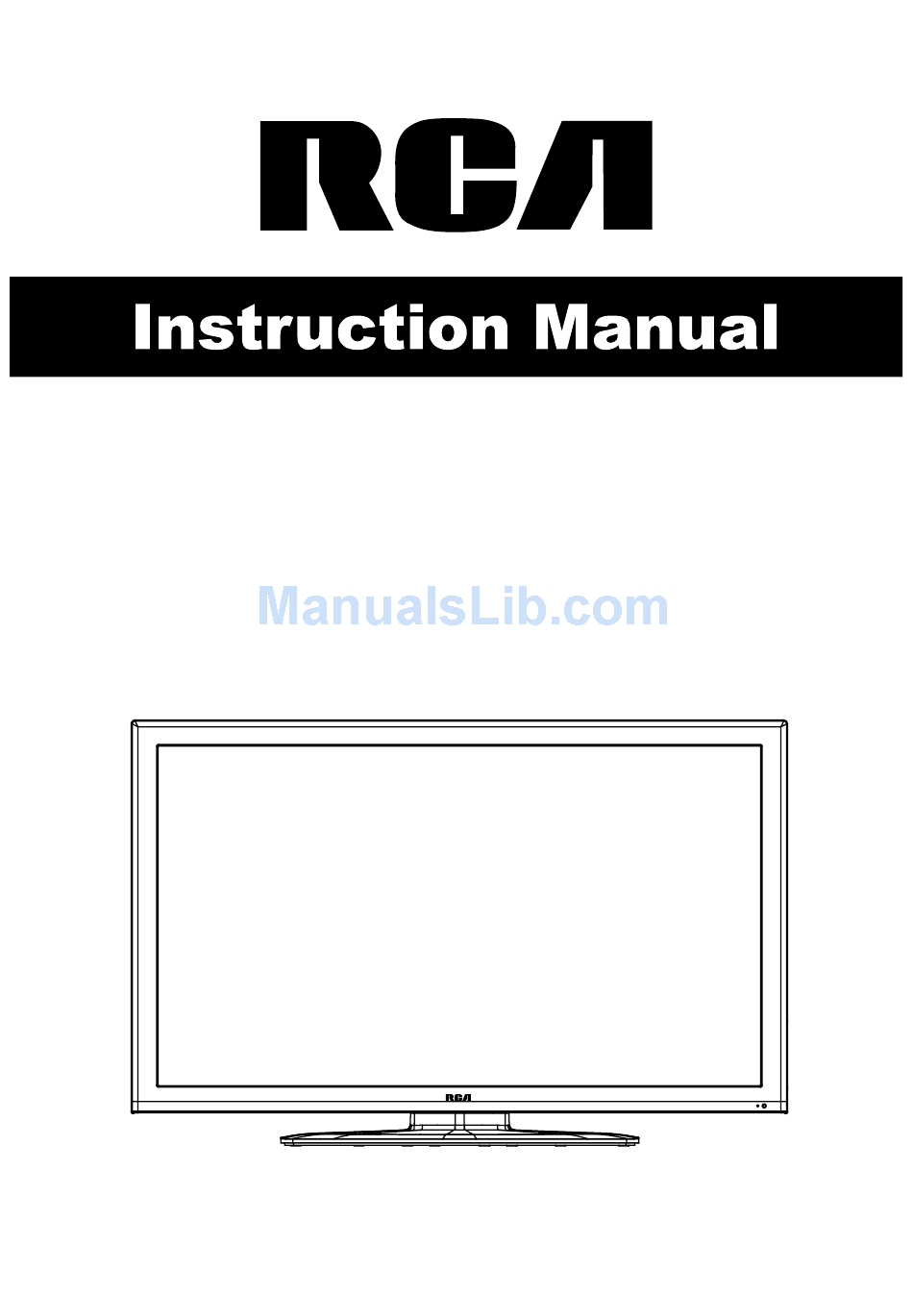

  • Page 1 55” LCD Television MODEL: RLC5534A...

  • Page 3: Table Of Contents

    Contents Contents Caution Safety Information Unit and Accessories Introduction 1. Front View 2. Rear View 3. Instruction for Wall Mount 4. Remote Control Basic Operation OSD Menu 11-18 1. Picture menu 11-12 2. Sound menu 3. Channel menu 4. Parental Control menu 15-16 5.

  • Page 4: Caution

    Caution Caution is intended to alert the user to the presence of un-insulated "dangerous to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 5: Safety Information

    Safety Information Safety Information Electrical safety power Physical safety...

  • Page 6: Unit And Accessories

    Unit and Accessories Unit and Accessories INPUT -/-- PICTURE SOUND SLEEP DISPLAY VOL+ MUTE VOL- EXIT MENU TV set Remote control Batteries: 2xAAA Instructions for fixing stand Instructions for User's manual fixing stand AC Cord...

  • Page 7: Introduction

    Introduction Introduction 1. Front View Power Indicator Remote Control window (Keep clear) 1). (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off. Indicator on(Red) Standby mode Indicator on(Green) Power on mode The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30 to the left or right side and 20...

  • Page 8: Rear View

    Introduction 2. Rear View Video R in L in Coax PC-IN HDMI1 HDMI2 HDMI3 (Service) AUDIO OUT COAX : Digital audio output. RF : Connect antenna or cable 75 Ohm coaxial to receive TV signal. HDMI1/2/3 : Connect it to the HDMI output of video device. : For service use only.

  • Page 9: Instruction For Wall Mount

    Introduction 3. Instruction for Wall Mount The wall mount kit (not included) with your purchase allows you to mount your RCA TV on the wall. For detailed information on installing the wall mount, refer to the instructions provided by the wall mount manufacturer. It is strongly recommended to contact a technician for professional assistance for wall mount installation.

  • Page 10: Remote Control

    Introduction 4. Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. INPUT INPUT: Press to display the input source menu.

  • Page 11: Introduction

    Introduction Installing Batteries 1. Open the battery compartment cover on the back of the remote control. 2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery compartment. Don’t mix different types or used batteries with new ones. 3.

  • Page 12: Basic Operation

    Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power cord and turn on the SWITCH. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control.

  • Page 13: Picture Menu

    OSD Menu OSD Menu 1. Picture menu Description Picture Settings: Press button to enter the Picture Settings menu. Picture mode: Select between Dynamic, Standard, Movie, User and Power Saving. You may select the picture mode directly by pressing the PICTURE button on the remote control. Note: when select the "Power Saving", the machine is in energy-saving status(4.1).

  • Page 14: Osd Menu

    OSD Menu OSD Menu Advanced Picture Settings: Press button to enter the Advanced Picture Settings. Dynamic Contrast: Select the dynamic contrast mode between Off, Low, Medium and High. Film Mode: Activate or deactivate the Film Mode. Noise Reduction: If the broadcast signal received is weak, you can select the DNR option to reduce the video noise level between Off, Low, Medium and High.

  • Page 15: Sound Menu

    OSD Menu OSD Menu 2. Sound menu Description Sound Settings: Press button to enter the Sound Settings menu. Sound Mode: Select your desired picture mode as follow: Dynamic, Standard, Soft and User. You may select the sound mode directly by pressing the SOUND button on the remote control.

  • Page 16: Channel Menu

    OSD Menu OSD Menu 3. Channel menu Cable Description Channel List: Display the channel list. Favorite List: Display the favorite channel list. Channel Settings: Press > button to display the Channel Settings menu. Press button to select the item, and press OK button to change the setting.

  • Page 17: Parental Control Menu

    OSD Menu OSD Menu 4. Parental Control menu You must enter the password to gain access to the Parental Control menu. The default password is 0000. You may modify the following options: Description V-CHIP: Press button to enter the V-CHIP menu. US V-CHIP: Press button to enter the US V-CHIP menu.
  • Page 18 OSD Menu OSD Menu Canada V-CHIP: Press button to enter the Canada V-CHIP menu. English Rating: Select among: C, C8+, G, PG, 14+ and 18+. French Rating: Select among: G, 8ans+, 13ans+, 16ans+ and 18ans+. Block UnRated Show: Activate or deactivate the Block UnRated Show function. Downloadable Rating: Setting the Downloadable Rating in DTV mode when the program has the rating information.

  • Page 19: Setup Menu

    OSD Menu OSD Menu 5. Setup menu Description Closed Caption: Press button to enter the Closed Caption menu. Caption Display: Activate or deactivate the Caption displaying. Analog Caption Type: Allow you to select the basic selection among: CC1, CC2, CC3, CC4, Text1, Text2, Text3 and Text4.

  • Page 20: Others Menu

    OSD Menu OSD Menu 6. Others menu Audio Only Description Blue Screen: Turn on/off the blue screen function when there’s no signal. No Signal Power Off: The TV will turn off automatically if there’s no signal after 10 minutes. No Operation Power Off: The TV will turn off automatically if there’s no operation on the TV after 3 hours.

  • Page 21: Simple Troubleshooting

    Simple Troubleshooting Simple Troubleshooting If the TV has failed or its performance has seriously deteriorated, check the TV by using the following simple troubleshooting guide. If you can not resolve the problem with this troubleshooting, please call VIORE Technical Support. No power - Check all power connections to the TV.
  • Page 22 LCD Panel Panel Size 55 inch (diagonal) Brightness 450 cd/m Contrast 6000:1 Resolution 1920x1080 Input Connector Video Audio(L/R) PC Audio HDMI YPbPr Headphone Output Connector COAX Audio (L/R) Power Source 100-240V~ 50/60Hz Maximum Power Consumption 280W * Product specifications and appearance are subject to change without notice. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

  • Page 23: Limited Product Warranty

    • A representative will troubleshoot your problem over the phone. • If it is determined that your unit requires service, the service location will be at the sole discretion of Curtis based upon the Curtis Limited Warranty statement. • At the sole discretion of Curtis, Televisions are either consumer carry-in to an Authorized Curtis Service Centre or directly exchanged for a new or refurbished/remanufactured unit.
