Sharp AH-A07BE Service Manual page 40

Split system room air conditioners
Hide thumbs

Advertisement

AH-A07BE-C/09BE-C
AH-A07BE/09BE/12BE
AY-A07BE-C/09BE-C
AY-A07BE/09BE/12BE
FOR OUTDOOR UNIT MODEL AE-A07BE/A07BE-C AND AU-A07BE/A07BE-C
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING
1 Remove the four (4) screws holding the terminal
cover and right side cover. Then take them out.
2 Remove the three (3) screws holding the left side
cover and take it out.
Propeller fan
3
Fan guard
2
Left side cover
Condenser
Fan motor
Cabinet

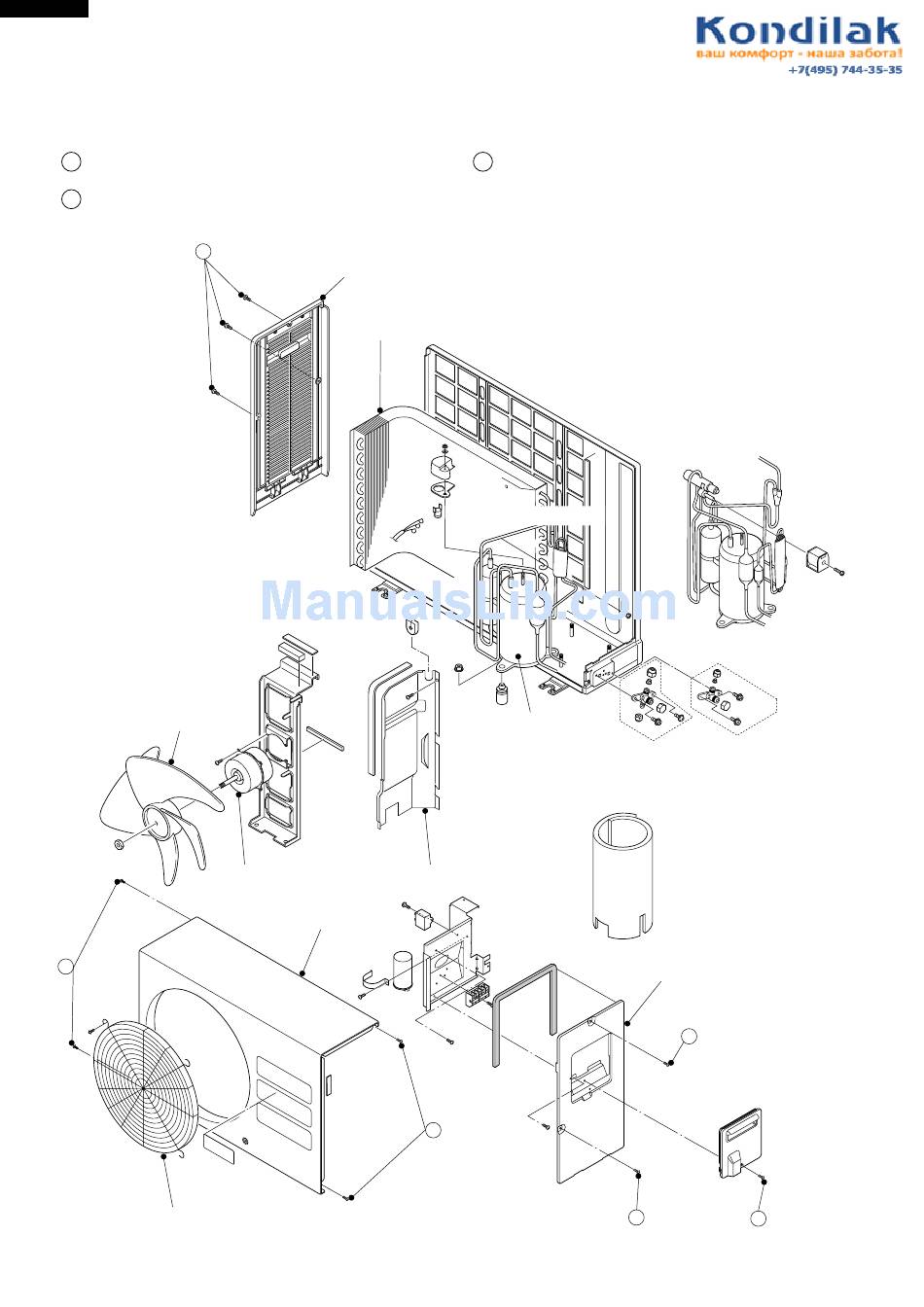

Fig. D-1. OUTDOOR UNIT
3 Remove the another screws holding the cabinet
and take it out.
AU-A07BE/A07BE-C
Compressor
Bulkhead
3
40
NOTE: Number as shown in following
figure is the moval order.
AE-A07BE/A07BE-C
Right side cover
1
1
1
