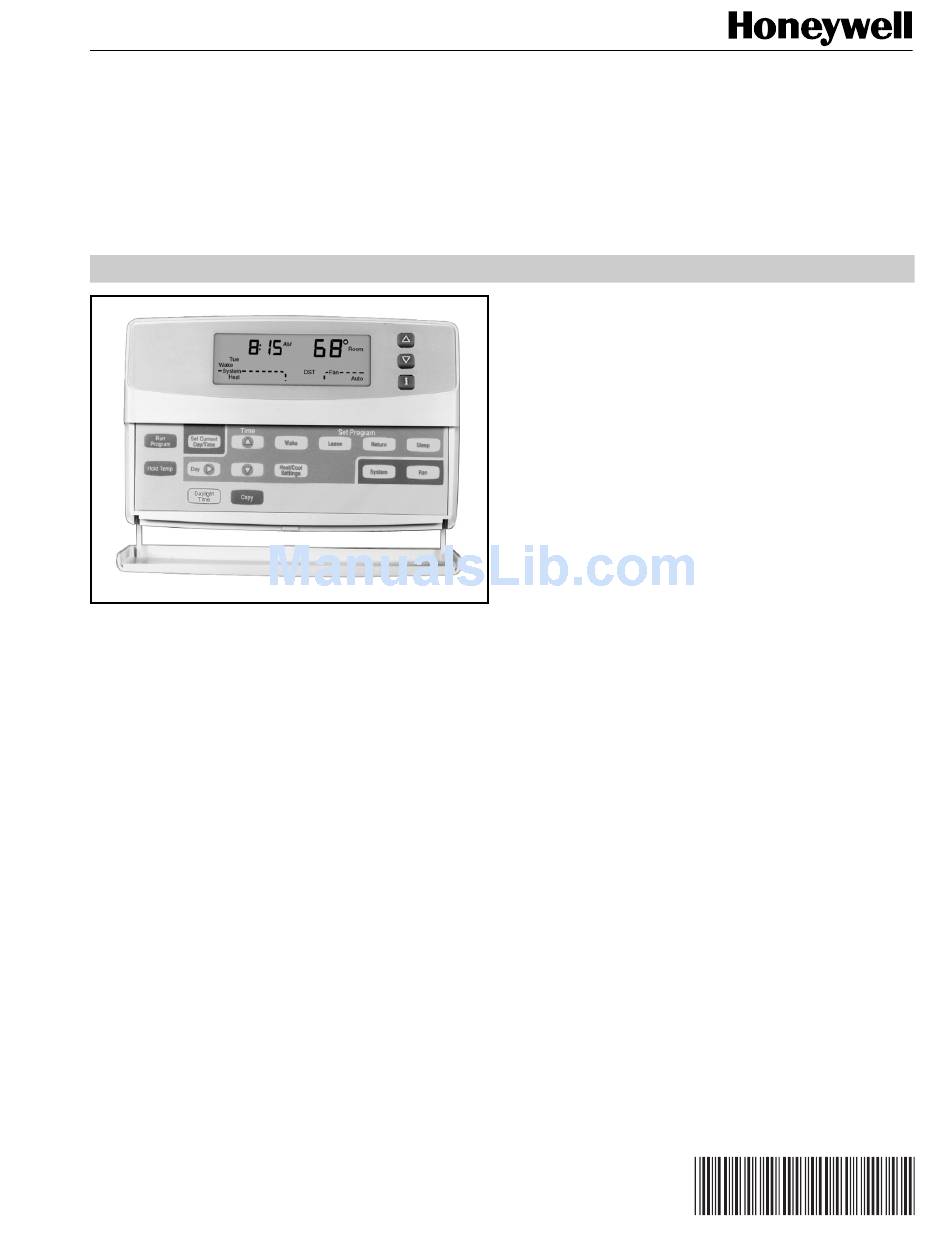

Honeywell T8611G Chronotherm IV Deluxe Manual

Programmable Heat Pump Thermostat

APPLICATION

The T8611G Chronotherm® IV Deluxe Programmable Heat
Pump Thermostat provides electronic control of 24 Vac
single-zone heat pump systems.

FEATURES

• Full seven-day program capability; different schedules
and temperature setpoints may be selected for
everyday to match the homeowner's flexible schedule.
• Copy key makes programming easier and faster for
the installer and homeowner.
• Daylight Savings Time (DST) key for quick change in
and out of Daylight Savings Time.
• Models available with programmable fan operation for
added homeowner comfort.
• Easy temporary temperature setpoint changes for
current period, vacation hold (1 to 255 days) or
indefinite hold adds to the homeowner comfort and
energy savings.
• Frequently used keys are located by the Liquid Crystal
Display (LCD) for quick and easy access to
information.
• Attractive styling complements any decor to the
homeowner's delight.
® U.S. Registered Trademark
Copyright © 1997 Honeywell Inc. • All Rights Reserved
T8611G Chronotherm
• Back lighting the large display makes the LCD very
easy to read.
• Models available with outdoor temperature sensor
capability for homeowner convenience. The sensor is
also more accurate than a thermometer.
• Configurable features allows one model to be used to
replace many different models (less inventory, no
longer need to carry separate models to get these
features).
- °F or °C temperature display;
- automatic or manual changeover;
- adjustable heating cycle rate.
• Minimum off time protects the equipment and extends
the equipment life.
• Easy installation, setup and system test saves
installer time and increases productivity.
• System test simplifies troubleshooting and saves time
by overriding the time delays.
• Models available with defrost control for more efficient
heat pump operation.
• Adaptive Intelligent Recovery® control brings the
room temperature to temperature setpoint at the
programmed time, maximizing comfort and energy
savings.
• Setpoints are permanently held in memory (no
batteries used) and retained during power outages for
increased installer and homeowner convenience.
• Universal Versaguard™ Thermostat guards available
for added security.
Application ........................................................................... 1
Features .............................................................................. 1
Specifications ...................................................................... 2
Ordering Information ........................................................... 2
Installation ........................................................................... 3
Wiring .................................................................................. 4
Settings ............................................................................... 6
Installer Setup ..................................................................... 7
Installer System Test ........................................................... 10
Thermostat Information ....................................................... 11
Programming ....................................................................... 12
Operation ............................................................................ 17
Troubleshooting Guide ........................................................ 19
Cross Reference ................................................................. 20
Wiring Diagrams .................................................................. 23
®
IV Deluxe
PRODUCT DATA
Contents
68-0165-1
