S
UPER
®
S
S
UPER
ERVER
®
6018R-TDW
UID
USER'S MANUAL
1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPERSERVER 6018R-TDW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero SUPERSERVER 6018R-TDW

Summary of Contents for Supero SUPERSERVER 6018R-TDW

  • Page 1 UPER ® UPER ERVER ® 6018R-TDW USER’S MANUAL...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Manual

    SuperServer 6018R-TDW. Installation and maintainance should be performed by experienced technicians only. The SuperServer 6018R-TDW is a 1U rackmount server based on the SC815TQ- 600WB chassis and the X10DDW-i serverboard. Manual Organization...
  • Page 4 UPER ERVER 6018R-TDW User's Manual Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X10DDW-i serverboard, including the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfiguring the serverboard.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER ERVER 6018R-TDW User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 SATA ......................1-2 Rear I/O Ports ....................1-2 Server Chassis Features ................1-2 System Power ....................1-2 Hard Drive Subsystem ..................
  • Page 7 Table of Contents UID ........................3-1 Reset ....................... 3-1 Power ......................3-1 Control Panel LEDs ..................3-2 Information LED ....................3-2 NIC2 ........................ 3-2 NIC1 ........................ 3-2 HDD ......................... 3-3 Power ......................3-3 Hard Drive Carrier LEDs ................. 3-3 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............
  • Page 8 UPER ERVER 6018R-TDW User's Manual Memory Support ....................5-8 Adding PCI Expansion Cards ............... 5-10 Mezzanine Card Installation ................5-11 Serverboard Details ..................5-12 X10DDW-i Quick Reference ................. 5-13 Connector Definitions ..................5-15 5-10 Jumper Settings .................... 5-21 5-11 Onboard Indicators ..................5-24 5-12 SATA Ports ....................

  • Page 9: Chapter 1 Introduction

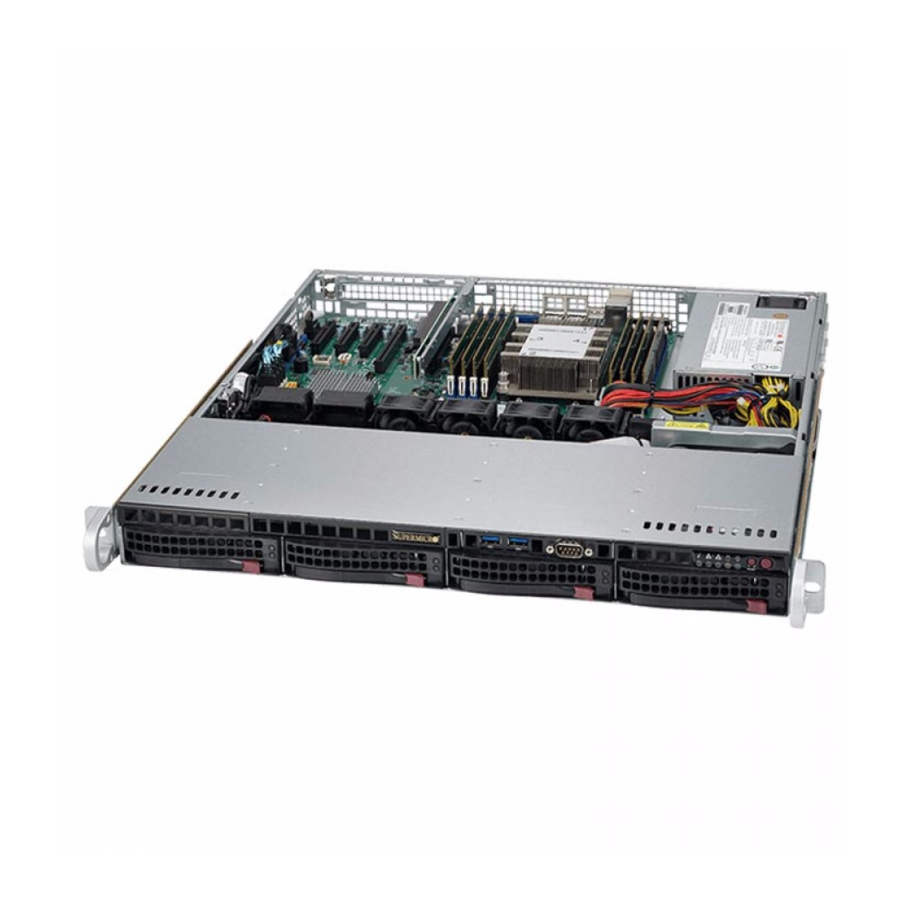

    Chapter 1 Introduction Overview The SuperServer 6018R-TDW is a 1U server comprised of two main subsystems: the SC815TQ-600WB chassis and the X10DDW-i serverboard. Please refer to our web site for information on operating systems that have been certified for use with the system (www.supermicro.com).

  • Page 10: Serverboard Features

    ERVER 6018R-TDW User's Manual Serverboard Features At the heart of the SuperServer 6018R-TDW lies the X10DDW-i, a dual processor serverboard based on the Intel® C612 chipset. Below are the main features of the X10DDW-i. (See Figure 1-1 for a block diagram of the chipset).

  • Page 11: Hard Drive Subsystem

    Chapter 1: Introduction Hard Drive Subsystem The SC815TQ-600WB chassis was designed to support four hot-swap SATA hard drives. PCI Expansion Slots Two riser cards (RSC-R1UW-2E16-O-P and RSC-R1UW-E8R-O-P) on the left side of the chassis can support two PCI-E x16 and one PCI-E x8 expansion cards, respectively.
  • Page 12 UPER ERVER 6018R-TDW User's Manual Figure 1-1. Intel C612 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. SXB2 RIGHT SLOT PCIE 3.0 x16 SXB1B (lower) Left SLOT WIO Slots PCIE 3.0 x16 SXB1A SXB2 PCIE x16...

  • Page 13: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 14 UPER ERVER 6018R-TDW User's Manual Notes...

  • Page 15: Chapter 2 Server Installation

    Precautions in the next section. Preparing for Setup The box the SuperServer 6018R-TDW was shipped in should include two sets of rail assemblies, two rail mounting brackets and the mounting screws you will need to install the system into the rack. Follow the steps in the order given to complete the installation process in a minimum amount of time.

  • Page 16: Rack Precautions

    UPER ERVER 6018R-TDW User's Manual • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units. Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them.

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 18: Installing The System Into A Rack

    UPER ERVER 6018R-TDW User's Manual Installing the System into a Rack This section provides information on installing the 6018R-TDW into a rack unit with the rack rails provided. If the system has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 19: Installing The Outer Rails

    Chapter 2: Server Installation Installing the Outer Rails Begin by measuring the distance from the front rail to the rear rail of the rack. Attach a short bracket to the front side of the right outer rail and a long bracket to the rear side of the right outer rail.

  • Page 20: Installing The Server Into The Rack

    UPER ERVER 6018R-TDW User's Manual Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. Do this by lining up the rear of the chassis rails with the front of the rack rails.

  • Page 21: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Installing the Server into a Telco Rack To install the 6018R-TDW into a Telco type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far follow the server will extend out the front of the rack.
  • Page 22 UPER ERVER 6018R-TDW User's Manual Notes...

  • Page 23: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the hard drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 24: Control Panel Leds

    UPER ERVER 6018R-TDW User's Manual Control Panel LEDs The control panel located on the front of the SC815TQ-600WB chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 25: Hdd

    Chapter 3: System Interface Indicates IDE channel activity. On the SuperServer 6018R-TDW, this light indicates HDD and/or DVD-ROM drive activity when flashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
  • Page 26 UPER ERVER 6018R-TDW User's Manual Notes...

  • Page 27: About Standardized Warning Statements

    Chapter 4: Warning Statements for AC Systems Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 28 UPER ERVER 6018R-TDW User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 29 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 30: Installation Instructions

    UPER ERVER 6018R-TDW User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 31: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 32: Power Disconnection Warning

    UPER ERVER 6018R-TDW User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 33 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 34: Equipment Installation

    UPER ERVER 6018R-TDW User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 35: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 36: Battery Handling

    UPER ERVER 6018R-TDW User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬...
  • Page 37 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 38: Redundant Power Supplies

    UPER ERVER 6018R-TDW User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 39: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 40: Comply With Local And National Electrical Codes

    UPER ERVER 6018R-TDW User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 41: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 42: Hot Swap Fan Warning

    UPER ERVER 6018R-TDW User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 43 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 44: Power Cable And Ac Adapter

    UPER ERVER 6018R-TDW User's Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.
  • Page 45 Chapter 4: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
  • Page 46 UPER ERVER 6018R-TDW User's Manual Notes 4-20...

  • Page 47: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the X10DDW-i serverboard, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 48: Processor And Heatsink Installation

    UPER ERVER 6018R-TDW User's Manual Processor and Heatsink Installation Notes • Always connect the power cord last and always remove it before adding, re- moving or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink. •...
  • Page 49 Chapter 5: Advanced Serverboard Setup 3. With the second lever fully Open the load plate. retracted, gently push down on the "Open 1st" lever to loosen the load plate. Lift the load plate with your fingers to open it completely. 4.
  • Page 50 UPER ERVER 6018R-TDW User's Manual Gently close the load plate. 7. With the "Close 1st" lever fully retracted, gently close the load plate. Push down and lock the lever labeled "Close 1st". 8. Make sure the locking mechanism on the "Close 1st" lever catches the lip of the load plate.

  • Page 51: Installing A Cpu Heatsink

    Chapter 5: Advanced Serverboard Setup Installing a CPU Heatsink 1. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the retention mechanism. 2. Screw in two diagonal screws (i.e. the #1 and the #2 screws) until just snug (do not over-tighten the screws, which may damage the CPU.) 3.

  • Page 52: Connecting Cables

    UPER ERVER 6018R-TDW User's Manual Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfigured systems to prevent them from blocking the flow of cooling...

  • Page 53: I/O Ports

    Chapter 5: Advanced Serverboard Setup Figure 5-1. Front Control Panel Header Pins (JF1) Ground 3.3 V FP PWRLED HDD LED UID LED NIC1 Link LED NIC1 Activity LED NIC2 Activity LED NIC2 Link LED OH/Fan Fail/ Blue LED Cathode PWR Fail LED) Power Fail LED 3.3V Reset...

  • Page 54: Installing Memory

    UPER ERVER 6018R-TDW User's Manual Installing Memory Installing Memory 1. Insert each memory module vertically into its slot, paying attention to the notch along the bottom of the module to prevent inserting the module incor- rectly (see Figure 5-2). 2. Install starting with slot P1-DIMMA1. Push the release tabs outwards on both ends of the DIMM slot to unlock it.
  • Page 55 Chapter 5: Advanced Serverboard Setup Processor & Memory Module Population Configuration For memory to work properly, follow the tables below. Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules CPU 1 DIMMA1 DIMMB1 DIMMC1 DIMMD1 DIMMA2 DIMMB2 DIMMC2 DIMMD2 CPU2 DIMME1 DIMMF1...

  • Page 56: Adding Pci Expansion Cards

    UPER ERVER 6018R-TDW User's Manual  DDR4 RDIMM/ LRDIMM ECC Memory Module Support for E5-2600 (V3) Processors Speed (MT/s)  Voltage (V)                   ...

  • Page 57: Mezzanine Card Installation

    Chapter 5: Advanced Serverboard Setup Mezzanine Card Installation For optional SAS 3.0 support, follow the instructions below to install the AOM- S3108M-H8 Rev. 2.00 mezzanine card into the AOM PCI-E 3.0 slot (JMEZ1). Mezzanine Card 1. With the serverboard in the chassis, align the mezzanine card with slot JMEZ1.

  • Page 58: Serverboard Details

    UPER ERVER 6018R-TDW User's Manual Serverboard Details Figure 5-4. SUPER X10DDW-i Layout USB0/1(2.0) LAN2 LAN1 USB4/5(3.0) COM1 I-SGPIO2 JSTBY1 JOH1 IPMI_LAN JWD1 JSXB1_2 BIOS JBT1 BIOS LICENSE X10DDW-iN P1_NVME0 P1_NVME1 Rev. 1.10 CLOSE 1st CLOSE 1st CPU1 CPU2 OPEN 1st OPEN 1st FAN8 FAN6...

  • Page 59: X10Ddw-I Quick Reference

    Chapter 5: Advanced Serverboard Setup X10DDW-i Quick Reference Jumper Description Default Setting JBT1 Clear CMOS See Section 5-10 C1/JI C2 SMB to PCI-E Slots Enable/Disable Pins 2-3 (Disabled) JPB1 BMC Enable/Disable Pins 1-2 (Enabled) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPLAN1 GLAN1/GLAN2 Enable/Disable Pins 1-2 (Enabled)
  • Page 60 UPER ERVER 6018R-TDW User's Manual T-SGPIO1/2 Serial ATA (SATA) General Purpose I/O Headers for I-SATA0-5, T-SGPIO1: I-SATA0-3, T-SGPIO2: I-SATA4/5 Description State Status PWR LED Green: On MB PWR On UID LED Blue: On Unit Identified LEM1 BMC Heartbeat LED Green: Blinking BMC Normal 5-14...

  • Page 61: Connector Definitions

    Chapter 5: Advanced Serverboard Setup Connector Definitions ATX Power 24-pin Connector Pin Definitions ATX Power Connector Pin# Definition Pin # Definition +3.3V +3.3V The 24-pin main power connector -12V +3.3V (J24) is used to provide power to the serverboard. Two 8-pin power con- PS_ON nectors (JPWR1/2) are also required for processor power (below).
  • Page 62 UPER ERVER 6018R-TDW User's Manual NIC1/NIC2 LED Indicators NIC1/2 LED The NIC (Network Interface Control- Pin Definitions (JF1) ler) LED connections for LAN ports 1 Pin# Definition and 2 are located on pins 11 and 12 NIC2 Activity LED and 9 and 10 of JF1, respectively. At- NIC2 Link LED tach NIC LED cables here to display NIC1 Activity LED...
  • Page 63 Chapter 5: Advanced Serverboard Setup Power Button The Power Button connection is located on pins 1 and 2 of JF1. Mo- Power Button Pin Definitions (JF1) mentarily contacting both pins will Pin# Definition power on/off the system. To turn off Signal the power when set to suspend mode, Ground...
  • Page 64 UPER ERVER 6018R-TDW User's Manual Internal Speaker Internal Buzzer Pin Definition The Internal Speaker (SP1) can be Pin# Definitions used to provide audible indications for Pin 1 Pos. (+) Beep In various beep codes. See the table on Pin 2 Neg.

  • Page 65: Chassis Intrusion

    Chapter 5: Advanced Serverboard Setup LAN Ports Pin Definition Pin# Definition Pin# Definition Ethernet Ports P2V5SB SGND TD0+ Act LED Two Ethernet ports (LAN1/LAN2) are TD0- P3V3SB located next to the VGA port.A dedi- cated IPMI LAN port is also located TD1+ Link 100 LED (Yellow, +3V3SB)
  • Page 66 UPER ERVER 6018R-TDW User's Manual IPMB I IPMB I Pin Definitions (IPMB) A System Management Bus header Pin# Definition for the IPMI slot is located at JIPMB. Data Connect the appropriate cable here Ground to use the IPMB I C connection on Clock your system.

  • Page 67: 5-10 Jumper Settings

    Chapter 5: Advanced Serverboard Setup 5-10 Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used Connector to choose between optional settings. Pins Jumpers create shorts between two pins to change the function of the Jumper connector.
  • Page 68 UPER ERVER 6018R-TDW User's Manual LAN1/2 Enable/Disable LAN Enable/Disable Change the setting of jumper JPLAN1 Jumper Settings to enable or disable the onboard Jumper Setting Definition Ethernet (RJ45) ports LAN1 and Pins 1-2 Enabled LAN2. See the table on the right for Pins 2-3 Disabled jumper settings.
  • Page 69 Chapter 5: Advanced Serverboard Setup Manufacture Mode Select Close pin 2 and pin 3 of jumper JPME2 to bypass SPI flash security ME Mode Select Jumper Settings and force the system to operate in Jumper Setting Definition the Manufacture Mode, allowing the Pins 1-2 Normal user to flash the system firmware...

  • Page 70: 5-11 Onboard Indicators

    UPER ERVER 6018R-TDW User's Manual 5-11 Onboard Indicators LAN Port LEDs LAN LED Connection Speed Indicator The Ethernet ports (located beside LED Color Definition the VGA port) have two LEDs. One No connection or 10 Mb/s LED indicates activity when blinking Green 100 Gb/s while the other LED may be green,...

  • Page 71: 5-12 Sata Ports

    Chapter 5: Advanced Serverboard Setup 5-12 SATA Ports SATA Port Pin Definitions SATA Ports Pin # Definition Ten SATA ports are provided on the Ground serverboard. I-SATA0-3, I-SATA4 and I-SATA5 are supported by the Intel PCH and the S-SATA ports Ground 0-3 are supported by Intel SCU.

  • Page 72: 5-13 Installing Software

    UPER ERVER 6018R-TDW User's Manual 5-13 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your serverboard.

  • Page 73: Superdoctor® 5

    Chapter 5: Advanced Serverboard Setup SuperDoctor® 5 The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program moni- tors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 74: 5-14 Onboard Battery

    UPER ERVER 6018R-TDW User's Manual 5-14 Onboard Battery Care must be taken to assure that the chassis cover is in place when the system is operating to assure proper cooling. Out of warranty damage to the system can occur if this practice is not strictly followed. Figure 5-7.

  • Page 75: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform main- tenance on the SC815TQ-600WB chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the next step.

  • Page 76: Control Panel

    UPER ERVER 6018R-TDW User's Manual Figure 6-1. Chassis: Front and Rear Views DVD-ROM Drive (Optional) Control Panel Hot-Swap Drive Bays (4) Power Supply PCI Expansion Slot (w/ Riser Card) I/O Ports Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the serverboard to provide you with system status indications.

  • Page 77: System Fans

    Chapter 6: Advanced Chassis Setup System Fans Five 4-cm heavy duty counter-rotating fans provide the cooling for the SuperServer 6018R-TDW. Each fan unit is made up of two fans joined back-to-back, which rotate in opposite directions. This counter-rotating action generates exceptional airflow and works to dampen vibration levels.

  • Page 78: Drive Bay Installation/Removal

    UPER ERVER 6018R-TDW User's Manual Figure 6-2. System Cooling Fans Drive Bay Installation/Removal Removing the Front Bezel If your system has a front bezel (optional) attached to the chassis, you must first remove it to gain access to the drive bays. To remove the bezel, first unlock the front of the chassis then press the release knob (see Figure 6-3).

  • Page 79: Accessing The Drive Bays

    Chapter 6: Advanced Chassis Setup Figure 6-3. Removing the Front Bezel 1. Unlock 2. Press release knob 3. Remove bezel assembly Accessing the Drive Bays SATA Drives: Because of their hot-swap capability, you do not need to access the inside of the chassis or power down the system to install or replace SATA drives. Proceed to the next section for instructions.

  • Page 80: Hard Drive Installation

    UPER ERVER 6018R-TDW User's Manual Hard Drive Installation The hard drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the drive bays. For this reason, even empty carriers without drives installed must remain in the chassis.
  • Page 81 Chapter 6: Advanced Chassis Setup Installing/Removing a Hard Drive 1. To remove a carrier, push the release button located beside the drive LEDs. 2. Swing the colored handle fully out and use it to pull the unit straight out (see Figure 6-5).

  • Page 82: Dvd-Rom Drive Installation

    UPER ERVER 6018R-TDW User's Manual DVD-ROM Drive Installation The top cover of the chassis must be opened to gain full access to the DVD-ROM drive bay. The 6018R-TDW accomodates only slim DVD-ROM drives. Side mounting brackets are needed to mount a slim DVD-ROM drive in the 6018R-TDW server. You must power down the system before installing or removing a DVD-ROM drive.

  • Page 83: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The SuperServer 6018R-TDW has a single 600 watt power supply, which is auto- switching capable. This enables it to automatically sense and operate with a 100v - 240v input voltage. Power Supply Failure If the power supply module fails, the system will shut down and you will need to replace the module.
  • Page 84 UPER ERVER 6018R-TDW User's Manual Figure 6-6. Removing/Replacing the Power Supply 6-10...

  • Page 85: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS setup utility for the X10DDW-i/iN. The ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter de- scribes the basic navigation of the AMI BIOS setup utility screens. Note: For AMI BIOS recovery, please refer to the UEFI BIOS Recovery Instructions in Appendix C.

  • Page 86: Main Setup

    UPER ERVER 6018R-TDW User's Manual How to Start the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the AMI BIOS setup utility. From the main menu, you can access the other setup screens.
  • Page 87 Chapter 7: BIOS The following Main menu items will be displayed: System Date/System Time Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the <Tab>...

  • Page 88: Advanced Setup Configurations

    UPER ERVER 6018R-TDW User's Manual Advanced Setup Configurations Use the arrow keys to select Advanced setup and press <Enter> to access the submenu items: Warning: Take Caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction.

  • Page 89: Power Configuration

    Chapter 7: BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture"...

  • Page 90: Cpu Configuration

    UPER ERVER 6018R-TDW User's Manual CPU Configuration  This submenu displays the following CPU information as detected by the BIOS. It also allows the user to configure CPU settings. • Processor Socket • Processor ID • Processor Frequency • Processor Max Ratio •...
  • Page 91 Chapter 7: BIOS codes to overwhelm the processor to damage the system during an attack. This feature is used in conjunction with the items: "Clear MCA," "VMX," "Enable SMX," and "Lock Chipset" for Virtualization media support. The options are Enable and Disable.

  • Page 92: Advanced Power Management Configuration

    UPER ERVER 6018R-TDW User's Manual Intel Virtualization Technology Select Enable to use Intel Virtualization Technology support for Direct I/O VT-d sup- port by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI tables. This feature offers fully-protected I/O resource sharing across Intel platforms, providing greater reliability, security and availability in networking and data-sharing.
  • Page 93 Chapter 7: BIOS  CPU C State Control (Available when Power Technology is set to Custom) Package C State limit Use this item to set the limit on the C-State package register. The options are C0/1 state, C2 state, C6 (non-Retention) state, and C6 (Retention) state. CPU C3 Report Select Enable to allow the BIOS to report the CPU C3 State (ACPI C2) to the operating system.

  • Page 94: Chipset Configuration

    UPER ERVER 6018R-TDW User's Manual Chipset Configuration Warning! Please set the correct settings for the items below. A wrong configuration setting may cause the system to malfunction. North Bridge This feature allows the user to configure the settings for the Intel North Bridge. IIO Configuration EV DFX (Device Function On-Hide) Feature When this feature is set to Enable, the EV_DFX Lock Bits that are located on a...
  • Page 95 Chapter 7: BIOS IIO2 Configuration IIO 2 IOU1 - PCIe Port This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4, x8, and Auto. Port 1A Link Speed Use this item to configure the link speed of a PCI-E device installed on the PCI-E slot specified by the user.
  • Page 96 UPER ERVER 6018R-TDW User's Manual  Intel VT for Directed I/O (VT-d) Intel VT for Direct I/O (VT-d) Intel VT for Directed I/O (VT-d) ® Select Enable to use Intel Virtualization Technology support for Direct I/O VT-d support by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI Tables.

  • Page 97: Memory Configuration

    Chapter 7: BIOS Link L0p Enable Select Enable for Link L0p support. The options are Enable and Disable. Link L1 Enable Select Enable for Link L1 support. The options are Enable and Disable. COD Enable (Available when the OS and the CPU support this feature) Select Enabled for Cluster-On-Die support to enhance system performance in cloud computing.

  • Page 98: Dimm Information

    UPER ERVER 6018R-TDW User's Manual Socket Interleave Below 4GB Select Enabled for the memory above the 4G Address space to be split between two sockets. The options are Enable and Disable. A7 Mode Select Enabled to support the A7 (Addressing) mode to improve memory per- formance.

  • Page 99: South Bridge Configuration

    Chapter 7: BIOS Demand Scrub Demand Scrubbing is a process that allows the CPU to correct correctable memory errors found on a memory module. When the CPU or I/O issues a demand-read command, and the read data from memory turns out to be a correctable error, the error is corrected and sent to the requestor (the original source).
  • Page 100 UPER ERVER 6018R-TDW User's Manual USB 3.0 Support Select Enabled for USB 3.0 support. The options are Smart Auto, Auto, Enabled, Disabled and Disabled. EHCI1 Select Enabled to enable EHCI (Enhanced Host Controller Interface) support on USB 2.0 connector #1 (-at least one USB 2.0 connector should be enabled for EHCI support.) The options are Disabled and Enabled.

  • Page 101: Sata Configuration

    Chapter 7: BIOS SATA Configuration  When this submenu is selected, AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the fol- lowing items: SATA Controller This item enables or disables the onboard SATA controller supported by the Intel PCH chip.
  • Page 102 UPER ERVER 6018R-TDW User's Manual *If the item above "Configure SATA as" is set to IDE, the following items will display: SATA Port 0~ Port 5 This item indicates that a SATA port specified by the user is installed (present) or not. SATA Port 0 ~ Port 5 SATA Device Type (Available when a SATA port is detected) Use this item to specify if the SATA port specified by the user should be con-...
  • Page 103 Chapter 7: BIOS Port 0 ~ Port 5 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device. The options are Enabled and Disabled. Port 0 ~ Port 5 SATA Device Type Use this item to specify if the SATA port specified by the user should be con- nected to a Solid State drive or a Hard Disk Drive.
  • Page 104 UPER ERVER 6018R-TDW User's Manual sSATA Port 0 ~ Port 3 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device. The options are Enabled and Disabled. sSATA Port 0 ~ Port 3 Device Type Use this item to specify if the sSATA port specified by the user should be con- nected to a Solid State drive or a Hard Disk Drive.
  • Page 105 Chapter 7: BIOS • Software Preserve Support sSATA Port 0~ Port 3 Select Enabled to enable an sSATA port specified by the user. The options are Disabled and Enabled. sSATA Port 0 ~ Port 3 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device.
  • Page 106 UPER ERVER 6018R-TDW User's Manual PCIe/PCI/PnP Configuration PCI Devices Common Settings PCI PERR/SERR Support Select Enabled to support PERR (PCI/PCI-E Parity Error)/SERR (System Error) runtime error reporting for a PCI/PCI-E slot. The options are Enabled and Disabled. Above 4G Decoding (Available if the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address.

  • Page 107: Super Io Configuration

    Chapter 7: BIOS PCI Device Option ROM Setting CPU1 JMEZ1 AOM PCI-E x8 (Option ROM) Select Enabled to enable Option ROM support to boot the computer using a de- vice installed on the slot specified by the user. The options are Disabled, Legacy and EFI.

  • Page 108: Serial Port Console Redirection

    UPER ERVER 6018R-TDW User's Manual Change Port 1 Settings/Change Port 2 Settings This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1 or Serial Port 2. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified.
  • Page 109 Chapter 7: BIOS Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits). Parity A parity bit can be sent along with regular data bits to detect data transmission errors.
  • Page 110 UPER ERVER 6018R-TDW User's Manual Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400. Redirection After BIOS Post Use this feature to enable or disable legacy Console Redirection after BIOS POST (Power-On Self-Test).
  • Page 111 Chapter 7: BIOS Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd.
  • Page 112 UPER ERVER 6018R-TDW User's Manual Redirection After BIOS Post Use this feature to enable or disable legacy Console Redirection after BIOS POST (Power-On Self-Test). When this feature is set to Bootloader, legacy Console Redirection is disabled before booting the OS. When this feature is set to Always Enable, legacy Console Redirection remains enabled upon OS boot.
  • Page 113 Chapter 7: BIOS Flow Control Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop data-sending when the receiving buffer is full. Send a "Start" signal to start data-sending when the receiving buffer is empty.

  • Page 114: Acpi Settings

    UPER ERVER 6018R-TDW User's Manual ACPI Settings  WHEA Support Select Enabled to support the Windows Hardware Error Architecture (WHEA) plat- form and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment to reduce system crashes and to enhance system recovery and health monitoring.

  • Page 115: Event Logs

    Chapter 7: BIOS Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.

  • Page 116: View Smbios Event Log

    UPER ERVER 6018R-TDW User's Manual Erasing Settings Erase Event Log Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at bootup. The options are No, Yes, Next reset, and Yes, Every reset. When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full.

  • Page 117: Ipmi

    Chapter 7: BIOS IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. Status of BMC This item indicates the status of the onboard BMC (Baseboard Management Con- troller).

  • Page 118: Bmc Network Configuration

    UPER ERVER 6018R-TDW User's Manual When SEL is Full This feature allows the user to determine what the AMI BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.

  • Page 119: Security Settings

    Chapter 7: BIOS Security Settings This menu allows the user to configure the following security settings for the system. Administrator Password Use this feature to set the administrator password which is required before the user entering the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.

  • Page 120: Boot Settings

    UPER ERVER 6018R-TDW User's Manual Boot Settings Use this feature to configure Boot Settings: Boot Configuration Boot Mode Select Use this item to select the type of device to be used for system boot. The options are Legacy, UEFI, and Dual. Fixed Boot Order Priorities This option prioritizes the order of bootable devices from which the system will boot.
  • Page 121 Chapter 7: BIOS • Boot Option #9 • Boot Option #10 • Boot Option #11 • Boot Option #12 • Boot Option #13 • Boot Option #14 • Boot Option #15  Add New Boot Option Use this item to select a new boot device to add to the boot priority list. Add Boot Option Select the target boot device to add to the boot priority list.
  • Page 122 UPER ERVER 6018R-TDW User's Manual  UEFI Application Boot Priorities • UEFI Boot Option #1 7-38...

  • Page 123: Save & Exit

    Chapter 7: BIOS Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below. Discard Changes and Exit Select this option to quit the BIOS setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>.
  • Page 124 UPER ERVER 6018R-TDW User's Manual Restore Optimized Defaults To set this feature, select Restore Optimized Defaults from the Exit menu and press <Enter>. These are manufacture default settings designed for maximum system performance but not for maximum stability. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>.

  • Page 125: Appendix A Bios Error Beep Codes

    Appendix A: BIOS POST Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 126 UPER ERVER 6018R-TDW User's Manual Notes...

  • Page 127: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processors Dual Intel® Xeon E5-2600 v3 series processors in an R3-LGA2011 sockets Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C612 chipset BIOS 128 MB Award® SPI Flash ROM Memory Capacity Sixteen DIMM sockets that support up to 1024 GB of DDR4- 2133/1866/1600/1333 LRDIMM (Load Reduced DIMMs), or 512 GB of RDIMM...

  • Page 128: System Cooling

    UPER ERVER 6018R-TDW User's Manual Weight Gross: 42 lbs. (19.05 kg.) System Cooling Five 4-cm heavy-duty counter-rotating fans System Input Requirements AC Input Voltage: 100-240V AC auto-range Rated Input Current: 7.5 - 3.1A Rated Input Frequency: 50 to 60 Hz Power Supply Rated Output Power: 600W (Part# PWS-605P-1H) Rated Output Voltages: +3.3V (15A), +5V (18A), +12V (49A), -12V (0.5A), +5Vsb...
  • Page 129 Appendix B: System Specifications Notes...
