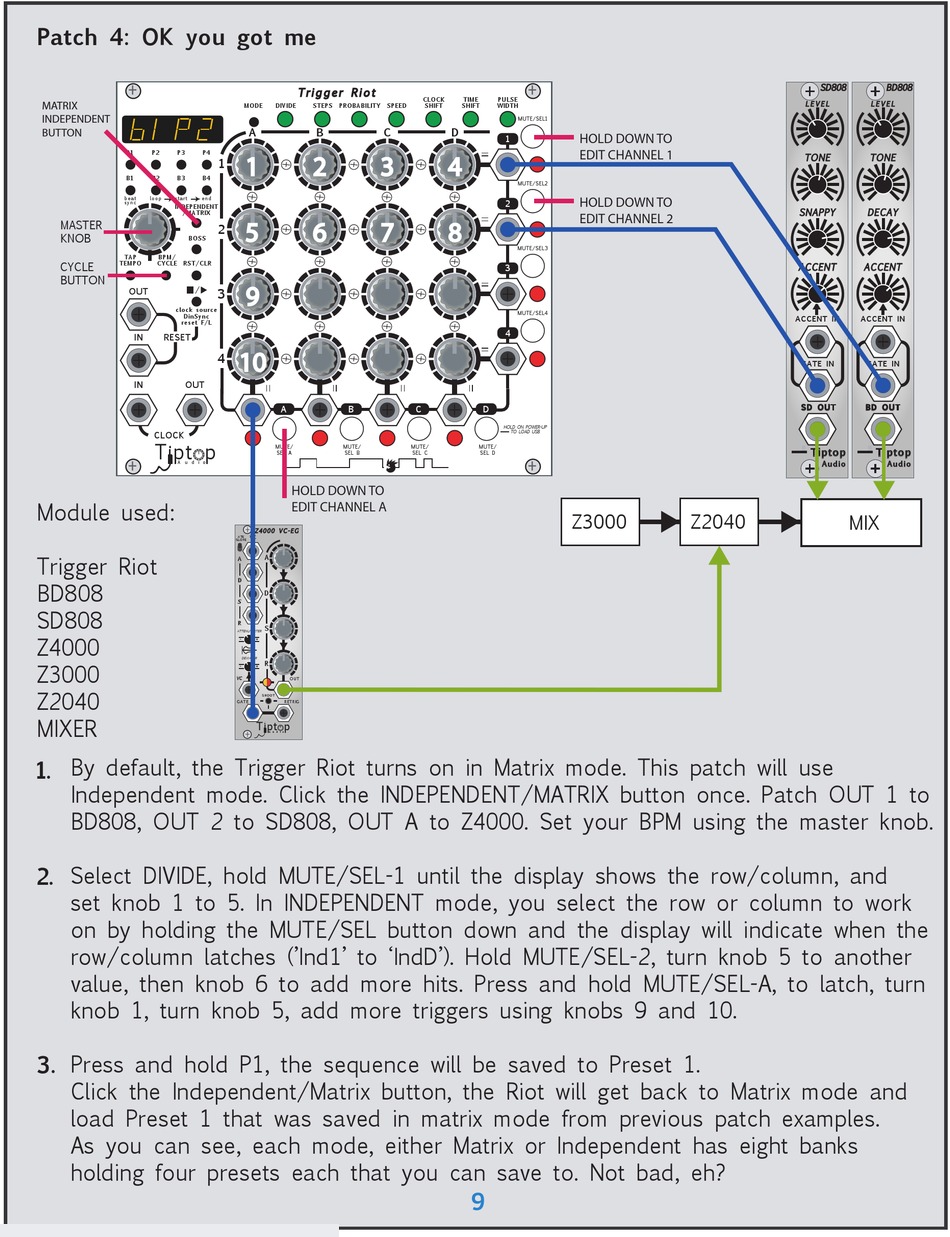

Patch 4: OK you got me
+
MATRIX
INDEPENDENT
BUTTON
P1
P2
P3
P4
B1
B2
B3
B4
beat
loop
start
end
sync
INDEPENDENT
/MATRIX
MASTER
KNOB
BOSS
TAP
BPM/
CYCLE
TEMPO
CYCLE RST/CLR
BUTTON
OUT
clock source
DinSync
reset F/L
IN
RESET
IN
OUT
CLOCK
Tipt p
+
A u d i o
Module used:
Trigger Riot
BD808
SD808
Z4000
Z3000
Z2040
MIXER
By default, the Trigger Riot turns on in Matrix mode. This patch will use
1.
Independent mode. Click the INDEPENDENT/MATRIX button once. Patch OUT 1 to
BD808, OUT 2 to SD808, OUT A to Z4000. Set your BPM using the master knob.
Select DIVIDE, hold MUTE/SEL-1 until the display shows the row/column, and
2.
set knob 1 to 5. In INDEPENDENT mode, you select the row or column to work
on by holding the MUTE/SEL button down and the display will indicate when the
row/column latches ('Ind1' to 'IndD'). Hold MUTE/SEL-2, turn knob 5 to another
value, then knob 6 to add more hits. Press and hold MUTE/SEL-A, to latch, turn
knob 1, turn knob 5, add more triggers using knobs 9 and 10.
3.
Press and hold P1, the sequence will be saved to Preset 1.
Click the Independent/Matrix button, the Riot will get back to Matrix mode and
load Preset 1 that was saved in matrix mode from previous patch examples.
As you can see, each mode, either Matrix or Independent has eight banks
holding four presets each that you can save to. Not bad, eh?
