Thanks for joining the Riot: get ready to sequence in a whole new way. The
Trigger Riot is a deep machine that combines a great deal of functionality with an
intuitive interface. In this manual we begin with a few simple "quick start" patch
examples to get you used to working with the Riot, followed by a deeper function
by function explanation. We are doing our best to provide the Riot with as minimal
bugs as possible but if you do come across a strange behavior, please report this
to us (contact@tiptopaudio.com) so we can keep updating the intelligence built into
the Riot.
Let the Riot begin!
In the following patch examples we will use the 808 Drum Modules and Z4000
Envelope Generators for clarity, obviously any other module with a gate/trigger
input should work. Lets get straight to the fun part:
LOAD AND SAVE
PRESET IN BANKS,
SET PRESET CHANGE
QUANTIZED TO THE
BEAT, LOOP PRESETS.
MASTER KNOB USE
TO SET BPM, CYCLE
LENGTH AND OTHER
GLOBAL SETTINGS
TAP TEMPO, CYCLE LENGTH
SETTINGS, MATRIX ON OFF,
ASSIGN A BOSS FOR SYNC BUS,
MANUAL RESET AND CLEAR
ALL, START STOP WITH
GLOBAL SETTINGS
RESET IN
AND OUT

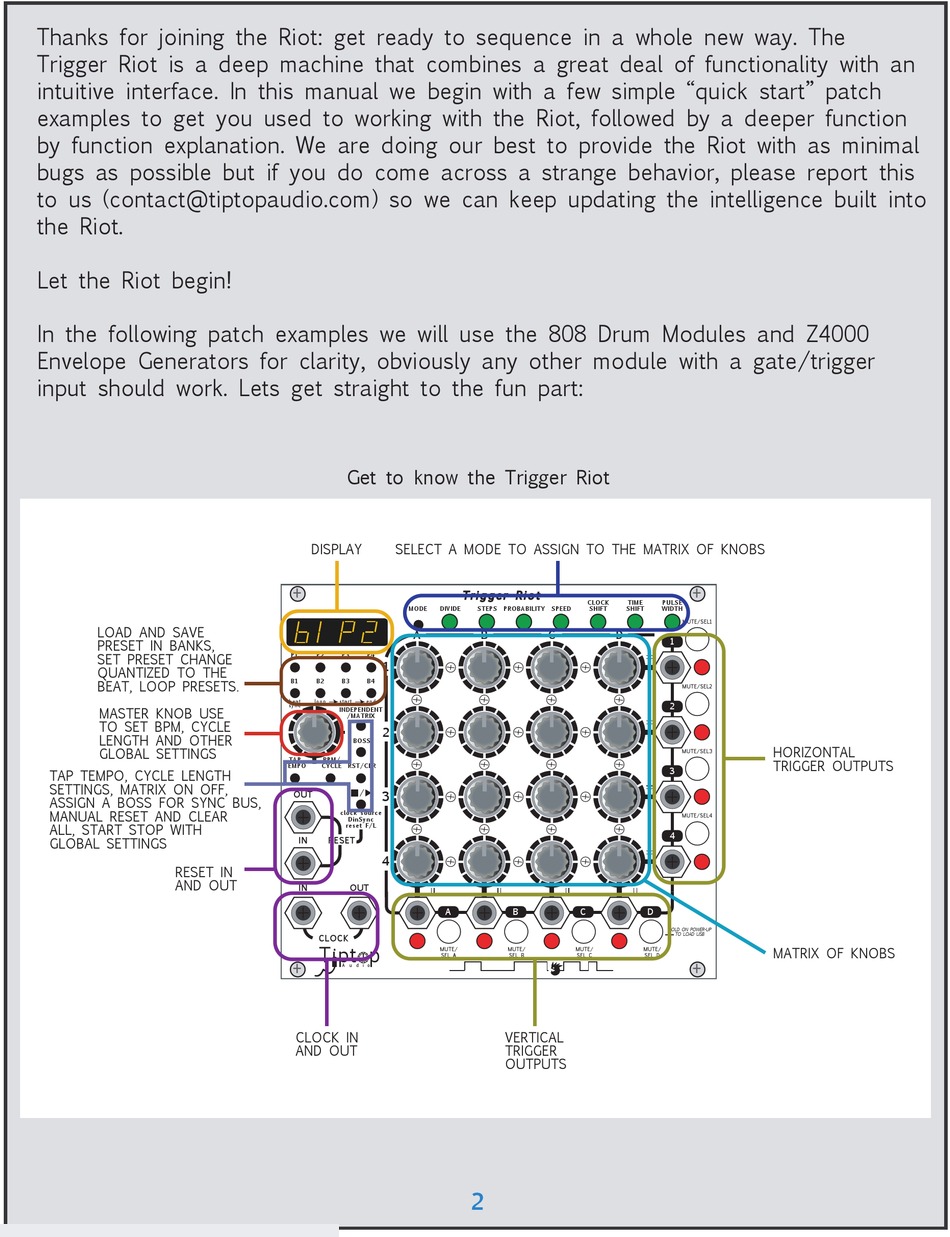

Get to know the Trigger Riot
DISPLAY SELECT A MODE TO ASSIGN TO THE MATRIX OF KNOBS
+
T r i g g e r R i o t
MODE DIVIDE
A
P1 P2 P3 P4
1
B1 B2 B3 B4
beat loop start end
sync
INDEPENDENT
/MATRIX
2
BOSS
TAP BPM/
TEMPO CYCLE RST/CLR
OUT 3
clock source
DinSync
reset F/L
IN RESET
4
IN OUT
A
CLOCK
Tipt p
MUTE/
SEL A
+
A u d i o
CLOCK IN
AND OUT
CLOCK TIME
STEPS PROBABILITY SPEED SHIFT SHIFT
B C D
B C D
MUTE/ MUTE/ MUTE/
SEL B SEL C SEL D
VERTICAL
TRIGGER
OUTPUTS
2
+
PULSE
WIDTH
MUTE/SEL1
1
MUTE/SEL2
2
HORIZONTAL
MUTE/SEL3
TRIGGER OUTPUTS
3
MUTE/SEL4
4
HOLD ON POWER-UP
TO LOAD USB
MATRIX OF KNOBS
+
