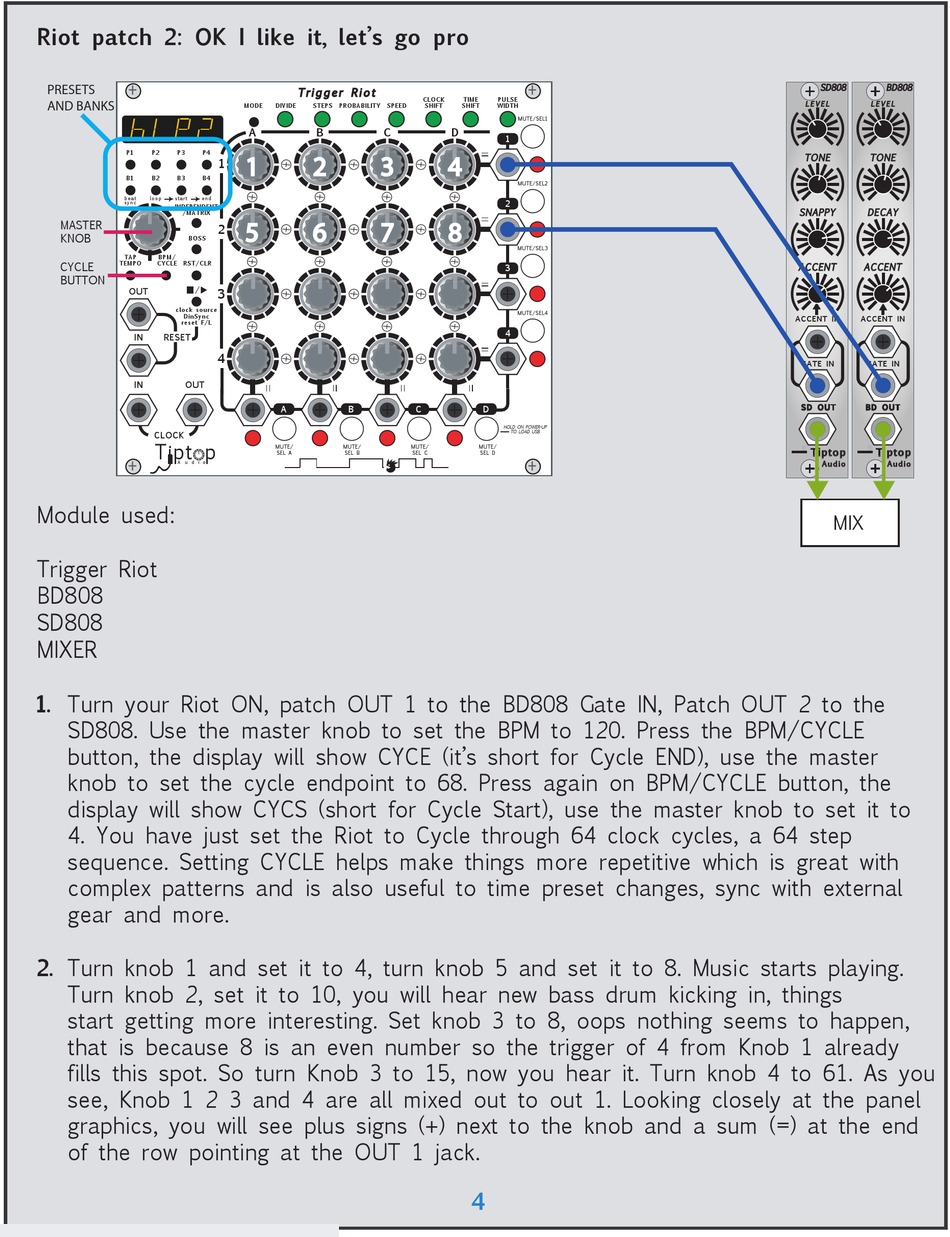

Tiptop Audio Trigger Riot User Manual page 4

Riot patch 2: OK I like it, let's go pro
+
PRESETS
AND BANKS
P1 P2 P3 P4
B1 B2 B3 B4
beat loop start end
sync
INDEPENDENT
/MATRIX
MASTER
KNOB
BOSS
TAP BPM/
CYCLE TEMPO CYCLE RST/CLR
BUTTON
OUT
clock source
DinSync
reset F/L
IN RESET
IN OUT
CLOCK
Tipt p
+
A u d i o
Module used:
Trigger Riot
BD808
SD808
MIXER
1. Turn your Riot ON, patch OUT 1 to the BD808 Gate IN, Patch OUT 2 to the
SD808. Use the master knob to set the BPM to 120. Press the BPM/CYCLE
button, the display will show CYCE (it's short for Cycle END), use the master
knob to set the cycle endpoint to 68. Press again on BPM/CYCLE button, the
display will show CYCS (short for Cycle Start), use the master knob to set it to
4. You have just set the Riot to Cycle through 64 clock cycles, a 64 step
sequence. Setting CYCLE helps make things more repetitive which is great with
complex patterns and is also useful to time preset changes, sync with external
gear and more.
2. Turn knob 1 and set it to 4, turn knob 5 and set it to 8. Music starts playing.
Turn knob 2, set it to 10, you will hear new bass drum kicking in, things
start getting more interesting. Set knob 3 to 8, oops nothing seems to happen,
that is because 8 is an even number so the trigger of 4 from Knob 1 already
fills this spot. So turn Knob 3 to 15, now you hear it. Turn knob 4 to 61. As you
see, Knob 1 2 3 and 4 are all mixed out to out 1. Looking closely at the panel
graphics, you will see plus signs (+) next to the knob and a sum (=) at the end
of the row pointing at the OUT 1 jack.
