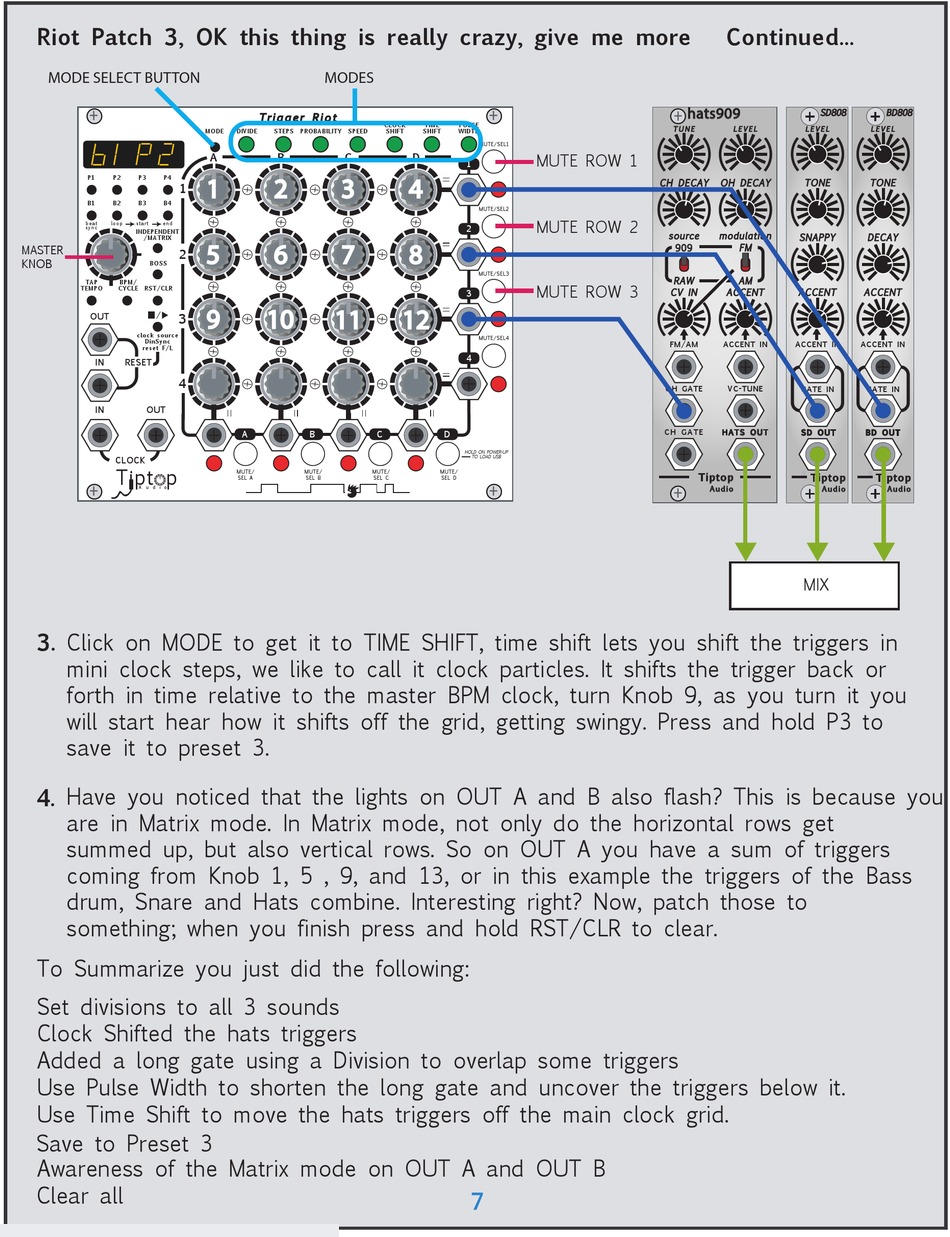

Riot Patch 3, OK this thing is really crazy, give me more
MODE SELECT BUTTON
+
P1
P2
P3
P4
1
B1
B2
B3
B4
beat
loop
start
end
sync
INDEPENDENT
/MATRIX
MASTER
2
KNOB
BOSS
TAP
BPM/
TEMPO
CYCLE RST/CLR
OUT
3
clock source
DinSync
reset F/L
IN
RESET
4
IN
OUT
CLOCK
Tipt p
+
A u d i o
3.
Click on MODE to get it to TIME SHIFT, time shift lets you shift the triggers in
mini clock steps, we like to call it clock particles. It shifts the trigger back or
forth in time relative to the master BPM clock, turn Knob 9, as you turn it you
will start hear how it shifts off the grid, getting swingy. Press and hold P3 to
save it to preset 3.
Have you noticed that the lights on OUT A and B also flash? This is because you
4.
are in Matrix mode. In Matrix mode, not only do the horizontal rows get
summed up, but also vertical rows. So on OUT A you have a sum of triggers
coming from Knob 1, 5 , 9, and 13, or in this example the triggers of the Bass
drum, Snare and Hats combine. Interesting right? Now, patch those to
something; when you finish press and hold RST/CLR to clear.
To Summarize you just did the following:
Set divisions to all 3 sounds
Clock Shifted the hats triggers
Added a long gate using a Division to overlap some triggers
Use Pulse Width to shorten the long gate and uncover the triggers below it.
Use Time Shift to move the hats triggers off the main clock grid.
Save to Preset 3
Awareness of the Matrix mode on OUT A and OUT B
Clear all
MODES
T r i g g e r R i o t
CLOCK
MODE
DIVIDE
STEPS
PROBABILITY
SPEED
A
B
C
1
2
3
5
6
7
9
10
11
A
B
C
MUTE/
MUTE/
MUTE/
SEL A
SEL B
SEL C
+
TIME
PULSE
SHIFT
SHIFT
WIDTH
MUTE/SEL1
D
MUTE ROW 1
1
4
MUTE/SEL2
MUTE ROW 2
2
8
MUTE/SEL3
MUTE ROW 3
3
12
MUTE/SEL4
4
D
HOLD ON POWER-UP
TO LOAD USB
MUTE/
SEL D
+
7
Continued...
+
