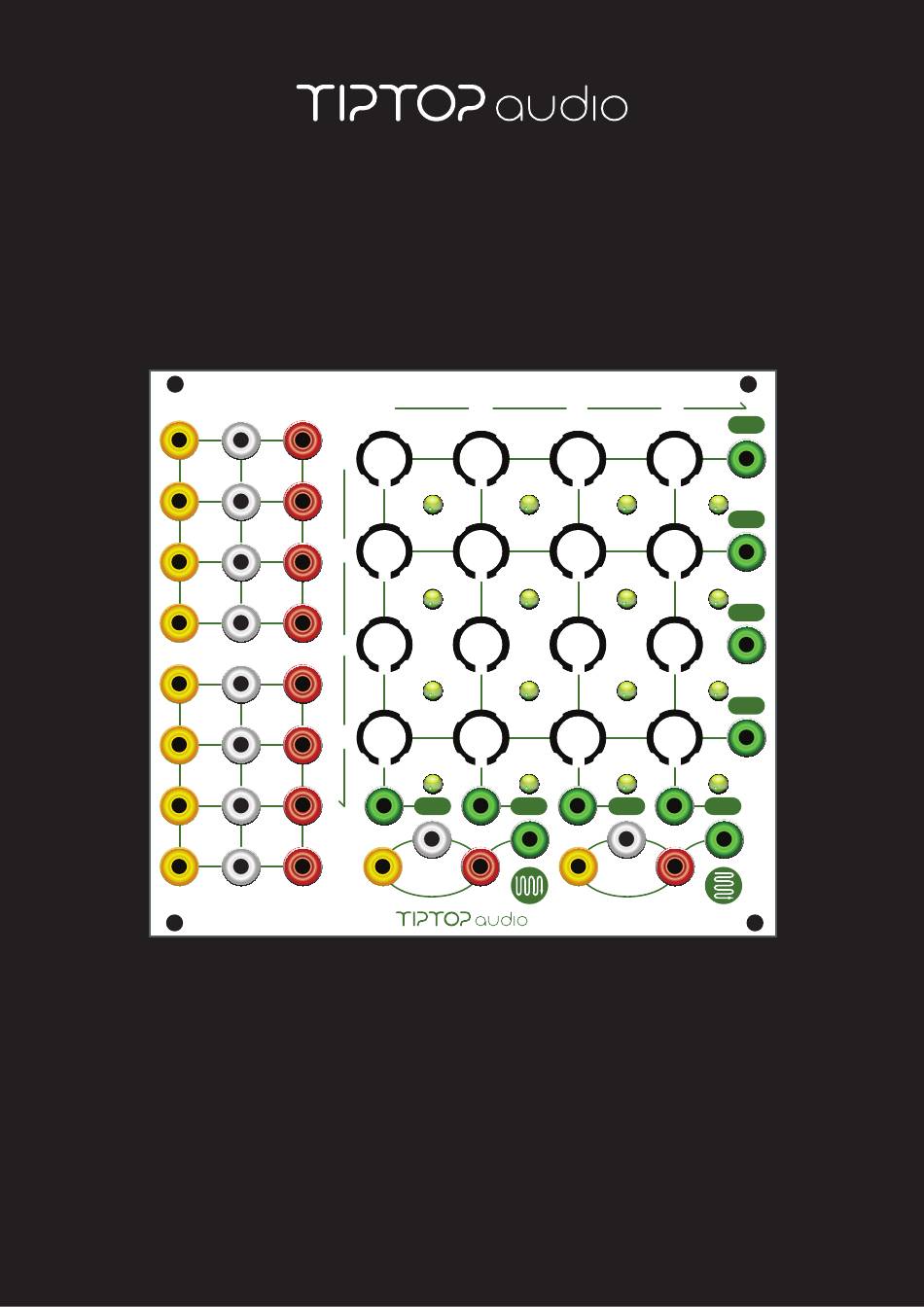

- Page 1 Z8000 MATRIX SEQUENCER/PROGRAMMER RE S E T D I R E CT IO N C LOCK D IR DI R R E S E T D IR E C T ION C LOCK www,tiptopaudio..com...
- Page 2 Direction works so that with a gate low the sequencer travels forward. A gate high signal dictates the sequencer travels backwards. The Z8000 has a very fast response time and will be triggerd by long and even very short pulses. The electrical noise caused by inserting a plug into a normalized clock input might cause some of the sequencers to step, this behavior is normal.
- Page 3 LEDs The Z8000 uses multicolored LEDs to help with visual feedback. The red lights are assigned to the eight 4 steps, the green lights are assigned to the two 16 steps & lastly the yellow lights engage when a 4 step red light & 16 step green light intersect that specific LED.
- Page 4 CV OUT RANGE Changing the CV out range. On the back of the Z8000 are jumpers that are used to set the CV out range of each sequencer in the Z8000, they are labeled CV RANGE. When the jumpers are set on both pins the range is 0-10V and when are removed the range is 0-5V.
