Tiptop Audio Trigger Riot User Manual page 6

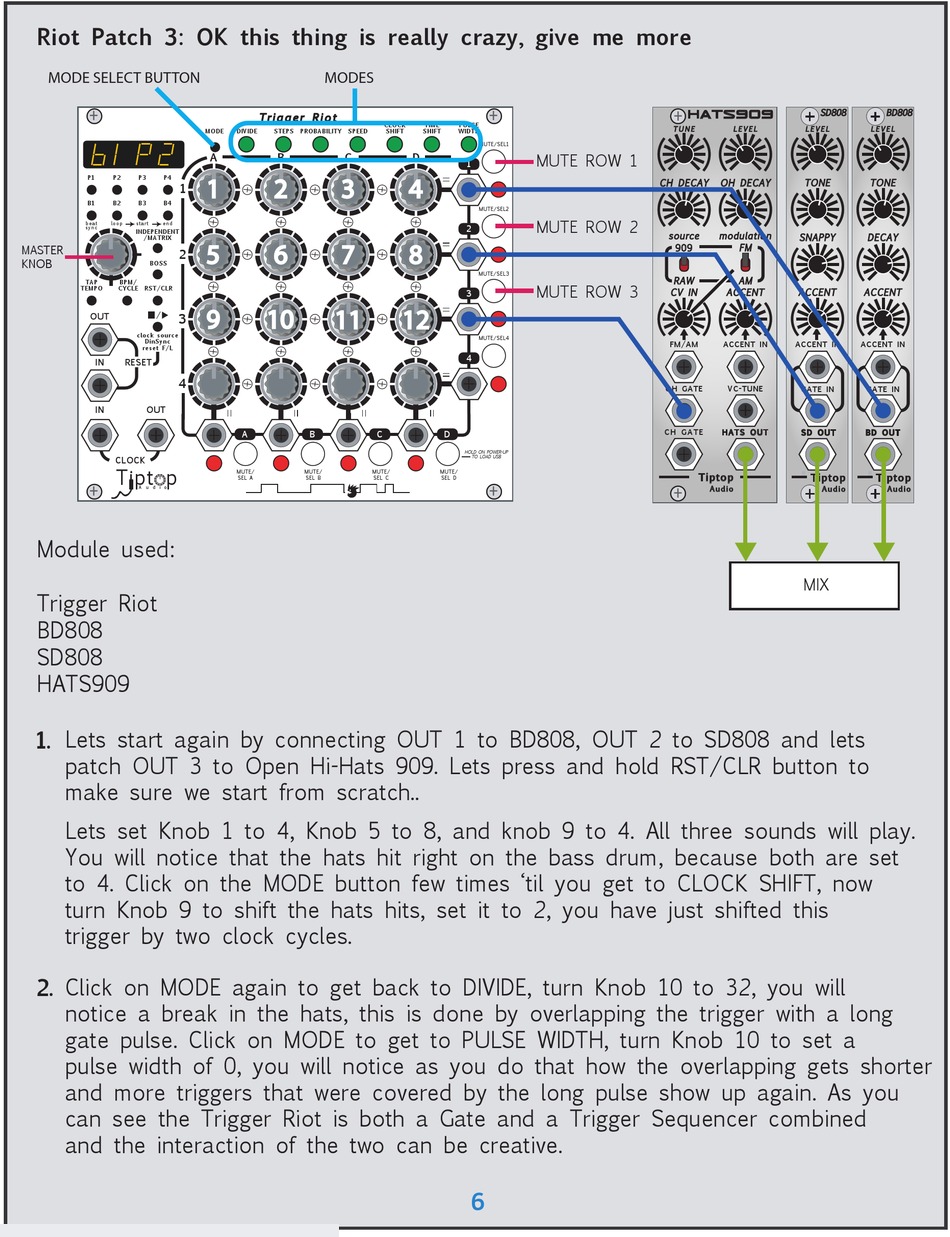

Riot Patch 3: OK this thing is really crazy, give me more
MODE SELECT BUTTON
+
P1 P2 P3 P4
1
B1 B2 B3 B4
beat loop start end
sync
INDEPENDENT
/MATRIX
MASTER
2
KNOB
BOSS
TAP BPM/
TEMPO CYCLE RST/CLR
OUT 3
clock source
DinSync
reset F/L
IN RESET
4
IN OUT
CLOCK
Tipt p
+
A u d i o
Module used:
Trigger Riot
BD808
SD808
HATS909
Lets start again by connecting OUT 1 to BD808, OUT 2 to SD808 and lets
1.
patch OUT 3 to Open Hi-Hats 909. Lets press and hold RST/CLR button to
make sure we start from scratch..
Lets set Knob 1 to 4, Knob 5 to 8, and knob 9 to 4. All three sounds will play.
You will notice that the hats hit right on the bass drum, because both are set
to 4. Click on the MODE button few times 'til you get to CLOCK SHIFT, now
turn Knob 9 to shift the hats hits, set it to 2, you have just shifted this
trigger by two clock cycles.
2. Click on MODE again to get back to DIVIDE, turn Knob 10 to 32, you will
notice a break in the hats, this is done by overlapping the trigger with a long
gate pulse. Click on MODE to get to PULSE WIDTH, turn Knob 10 to set a
pulse width of 0, you will notice as you do that how the overlapping gets shorter
and more triggers that were covered by the long pulse show up again. As you
can see the Trigger Riot is both a Gate and a Trigger Sequencer combined
and the interaction of the two can be creative.
MODES
T r i g g e r R i o t
CLOCK
MODE DIVIDE STEPS PROBABILITY SPEED
A B C
1 2 3
5 6 7
9 10
11
A B C
MUTE/ MUTE/ MUTE/
SEL A SEL B SEL C
+
TIME PULSE
SHIFT SHIFT WIDTH
MUTE/SEL1
D MUTE ROW 1
1
4
MUTE/SEL2
MUTE ROW 2
2
8
MUTE/SEL3
MUTE ROW 3
3
12
MUTE/SEL4
4
D
HOLD ON POWER-UP
TO LOAD USB
MUTE/
SEL D
+
6
+
SD808
hats909
T U N E L E V E L L E V E L
CH DECAY OH DECAY TONE
source modulation
SNAPPY
909 FM
RAW AM
CV IN ACCENT ACCENT
FM/AM ACCENT IN ACCENT IN
OH GATE VC-TUNE GATE IN
CH GATE HATS OUT SD OUT
Tiptop Tiptop
+
Audio Audio
MIX
BD808
L E V E L
TONE
DECAY
ACCENT
ACCENT IN
GATE IN
BD OUT
Tiptop
Audio
