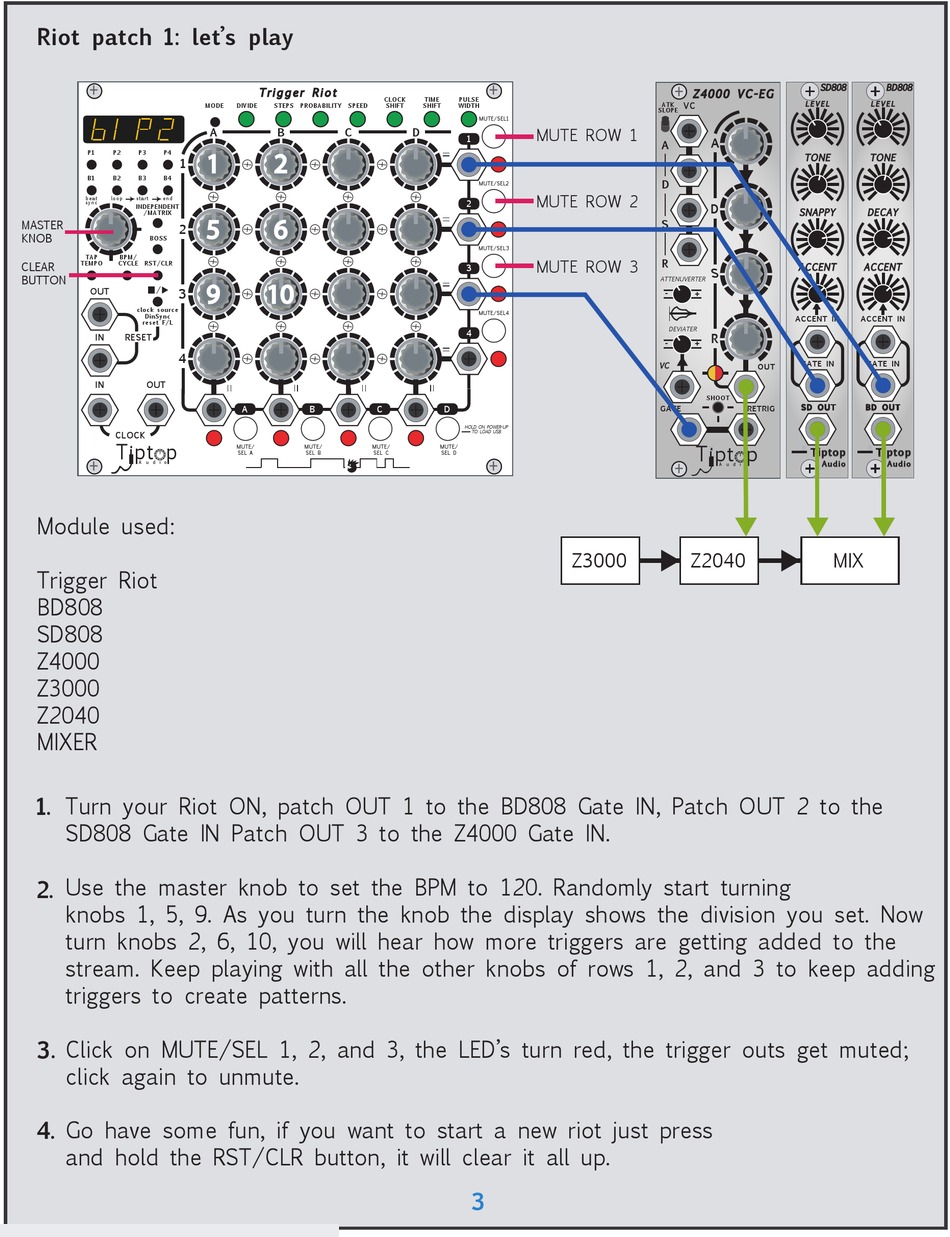

Riot patch 1: let's play
+
P1 P2 P3 P4
1
B1 B2 B3 B4
beat loop start end
sync
INDEPENDENT
/MATRIX
MASTER
2
KNOB
BOSS
TAP BPM/
CLEAR TEMPO CYCLE RST/CLR
BUTTON
OUT 3
clock source
DinSync
reset F/L
IN RESET
4
IN OUT
CLOCK
Tipt p
+
A u d i o
Module used:
Trigger Riot
BD808
SD808
Z4000
Z3000
Z2040
MIXER
1. Turn your Riot ON, patch OUT 1 to the BD808 Gate IN, Patch OUT 2 to the
SD808 Gate IN Patch OUT 3 to the Z4000 Gate IN.
Use the master knob to set the BPM to 120. Randomly start turning
2.
knobs 1, 5, 9. As you turn the knob the display shows the division you set. Now
turn knobs 2, 6, 10, you will hear how more triggers are getting added to the
stream. Keep playing with all the other knobs of rows 1, 2, and 3 to keep adding
triggers to create patterns.
Click on MUTE/SEL 1, 2, and 3, the LED's turn red, the trigger outs get muted;
3.
click again to unmute.
4. Go have some fun, if you want to start a new riot just press
and hold the RST/CLR button, it will clear it all up.
