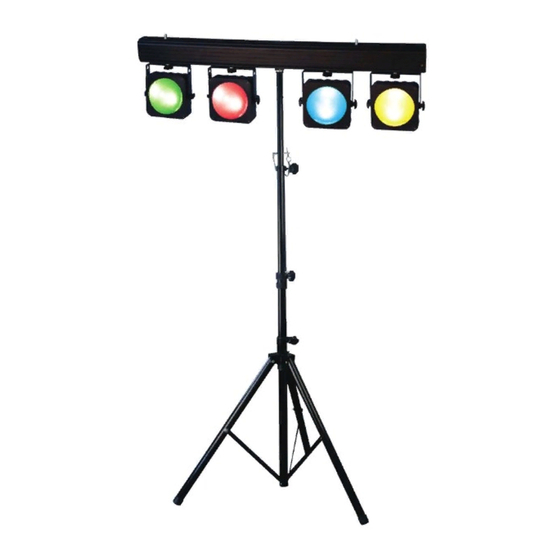

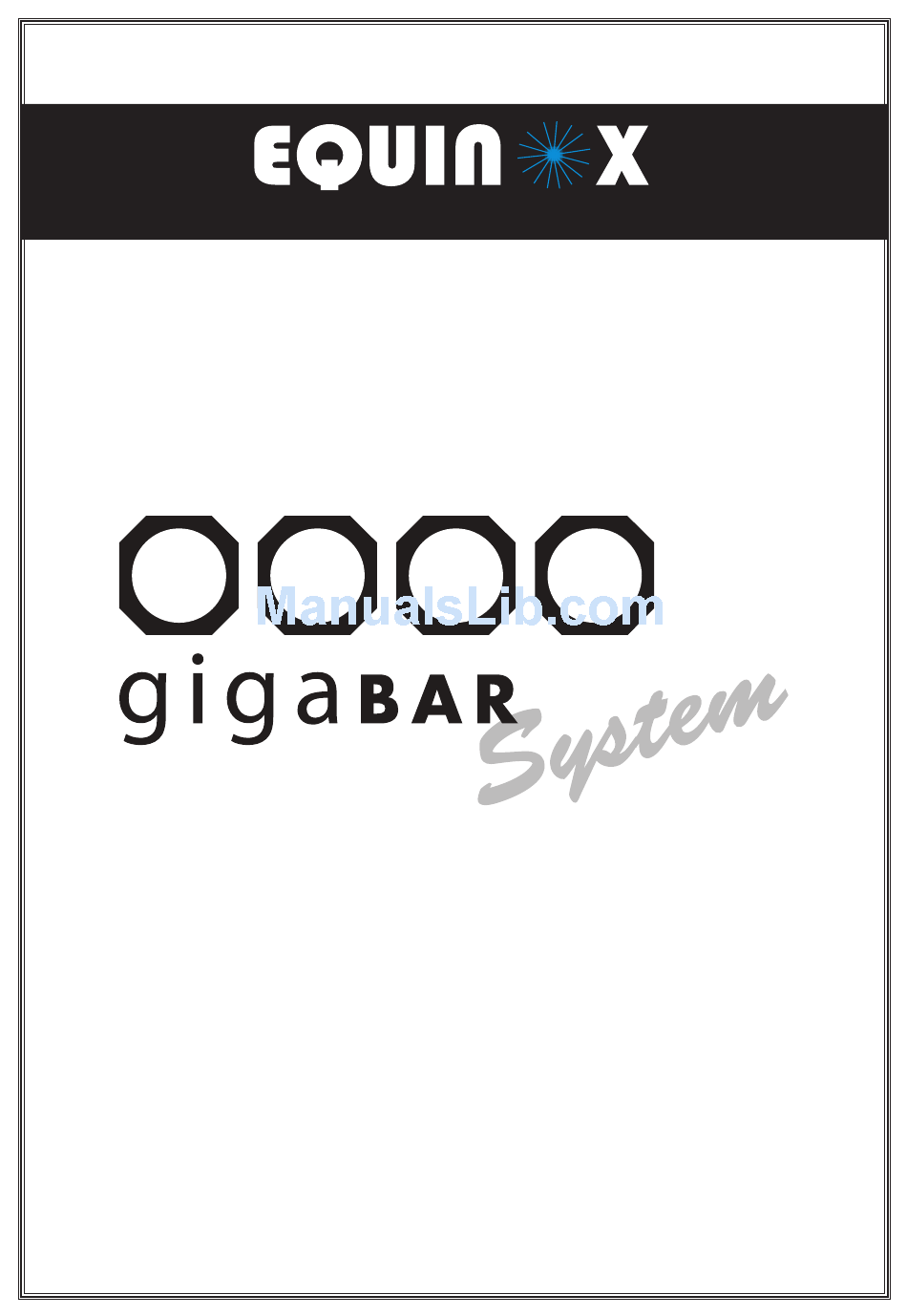

Page 1: User Manual
w w w . p r o l i g h t . c o . u k O R D E R C O D E : E Q L E D 6 5 USER MANUAL... -
Page 2: Safety Instructions
Equinox Giga Bar Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
Equinox Giga Bar Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 Technical Specifications You should find inside the carton the following items: 1, Equinox Giga Bar and bag 2, Power cable 3, User manual 4, Stand and bag 5, I.R remote 6, GB-1 foot controller 7, 4 pcs 25 degree lense kit...
- Page 5 Equinox Giga Bar Operation Modes Setup: 1, Setting dimmer curves To set the dimmer curves, press the “MODE” button to show “DIM CURVE” in the LCD display window. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select LED or halogen.
- Page 6 Equinox Giga Bar Operation Modes 3, Auto Run mode To select the Auto run mode, press the “MODE” button to show “AUTO RUN” in the LCD display window. Now press the “ENTER” button to adjust the frequency level (FQN01-99). Finally press the “ENTER”...
- Page 7 Equinox Giga Bar Operation Modes 6 channel mode: R1, R2 0-255 Dimming 0-100% G1, G2 0-255 Dimming 0-100% B1, B2 0-255 Dimming 0-100% R3, R4 0-255 Dimming 0-100% G3, G4 0-255 Dimming 0-100% B3, B4 0-255 Dimming 0-100% 7 channel mode:...
- Page 8 Equinox Giga Bar Operation Modes 8 channel mode: 0-15 (0-255) (0-255) (0-255) 16-23 R 24-31 G 32-39 B 40-47 48-55 56-63 0-127: 0-127: Light Light 64-71 1 OFF 2 OFF Master (add light (add light 72-79 Dimmer to aux to aux...
- Page 9 Equinox Giga Bar Operation Modes 176-183 Flow2 184-191 Flow3 192-199 Flow4 200-207 Flow5 208-215 Flow6 216-223 Flow7 224-231 0-255 0-255 Flow8 Select 8 Select 8 colours colours 232-239 Flow9 240-255 Sensitivity Sound (0-255) Active 12 channel mode: CH10 CH11 CH12...
- Page 10 Equinox Giga Bar Operation Modes 17 channel mode: CH15 CH16 CH17 0-15 (0-255) (0-255) (0-255) (0-255) 16-23 R 24-31 G 32-39 B 40-47 48-55 56-63 0-127: 0-127: Light Light 64-71 1 OFF 2 OFF Master (add light (add light 72-79...
- Page 11 Equinox Giga Bar Operation Modes 176-183 Flow2 184-191 Flow3 192-199 Flow4 200-207 Flow5 208-215 Flow6 216-223 Flow7 224-231 0-255 0-255 Flow8 Select 8 Select 8 colours colours 232-239 Flow9 240-255 Sensitivity Sound (0-255) Active 5, Slave mode To select Slave mode, first link the units together via 3-Pin XLR cable(s), press the “MODE”...
- Page 12 Equinox Giga Bar Operation Modes Built-in programme chart Static Colour Red, Greeen, Blue, Yellow, Cyan, Purple, White Flash speed adjustable CL:RGB Flash00-99 Dream 7 colour dreaming Speed00-99 Flash00-99 Speed & Flash adjustable Meteor 7 colour flow Speed00-99 Flash00-99 Speed & Flash adjustable...
- Page 13 Equinox Giga Bar Remote Function I.R. remote function To control the Giga Bar via the I.R remote, first please make sure that the Giga Bar has been switched into wireless mode. Press “MODE” until the LCD display shows “IR ACTIVE”, press “ENTER”...
- Page 14 DATA Cable (DMX cable) requirements (for DMX operation): • The Equinox Mighty Bar can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 15 Equinox Giga Bar DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 16 Equinox Giga Bar Foot Controller Operation Overview (top) STATIC SOUND PROG Overview (back) GB-1 POWER Operations This foot controller is made specially for the Giga Bar system. Many of the built-in programmes can be accessed via the 4 foot switches. To control the Mighty Bar using the foot switch controller, you must first set the bar systems into “SLAVE”...
- Page 17 Equinox Giga Bar English Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with seperate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
