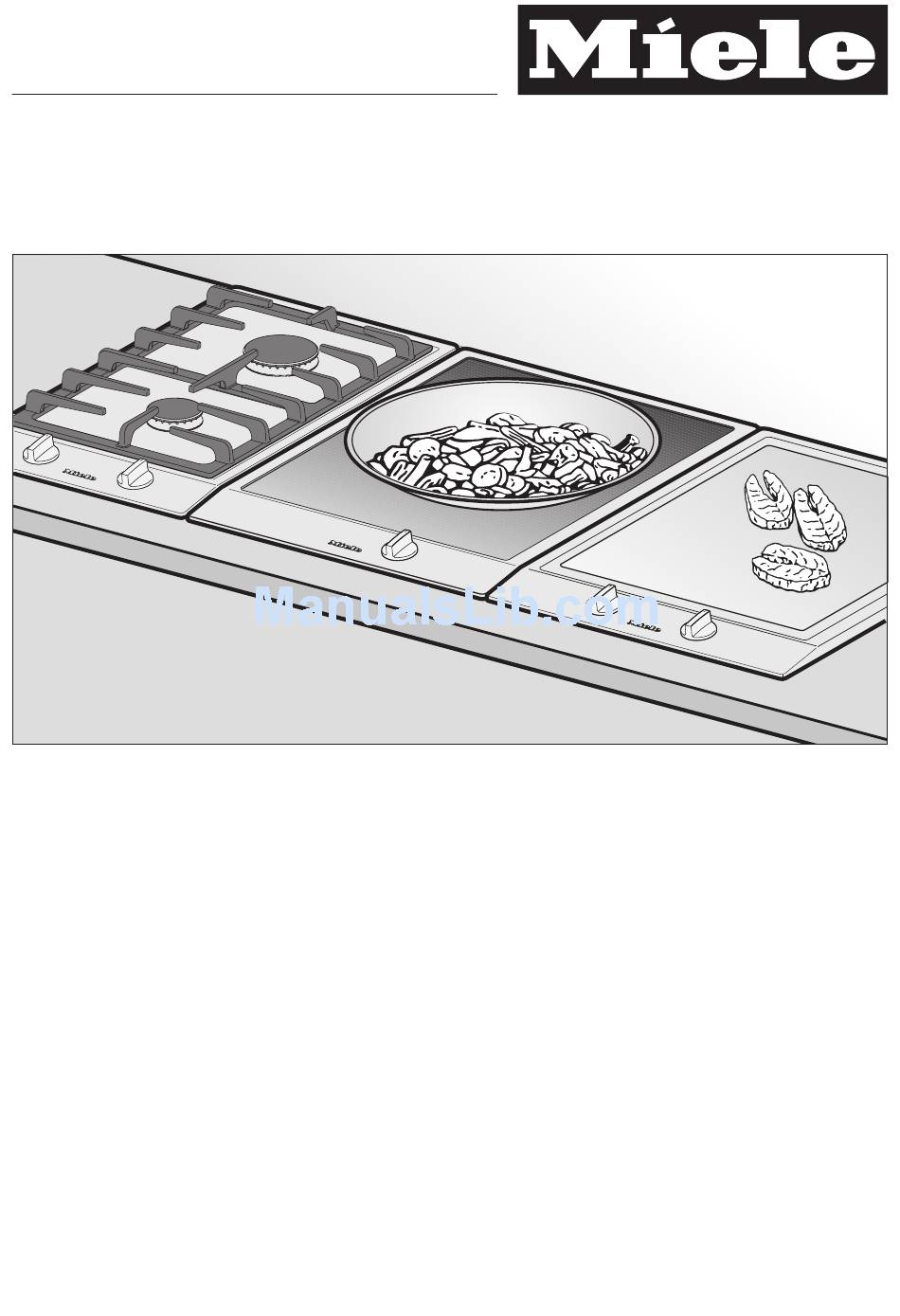

Operating and Installation
Instructions
Tepan Yaki
CS 1326
en - US
To prevent accidents and
appliance damage,
read these instructions
before
installation or use.
M.-Nr. 07 346 960

Advertisement

   Also See for Miele CS 1326

   Summary of Contents for Miele CS 1326

  • Page 1

    Operating and Installation Instructions Tepan Yaki CS 1326 en - US To prevent accidents and appliance damage, read these instructions before installation or use. M.-Nr. 07 346 960...

  • Page 2: Table Of Contents

    Contents IMPORTANT SAFETY INSTRUCTIONS....... . . 3 Guide to the Tepan Yaki ..........7 Before using for the first time.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Correct usage WARNING- When using your Only use the Tepan Yaki for appliance follow basic residential cooking, and for the precautions, including the purposes described in this manual. following: Other uses are not permitted and can be dangerous. Read all instructions before installation or use to prevent Persons who lack physical, sensory...

  • Page 4

    Install the appliance so that the power cord does not come into contact Installation, repair and maintenance with any portion of the cooktop which work should be performed by a Miele may become hot during use. authorized service technician. Work by unqualified persons could be Before servicing, disconnect the dangerous and may void the warranty.

  • Page 5

    IMPORTANT SAFETY INSTRUCTIONS Safety Do not store aerosols, combustibles or any other easily flammable materials The appliance is hot during use and underneath or adjacent to the remains so for some time after being appliance. switched off. Be careful not to touch the appliance if it may still be hot.

  • Page 6

    IMPORTANT SAFETY INSTRUCTIONS When wiping spills on a hot appliance with a wet sponge or cloth, be careful to avoid steam burns. Do not let flammable materials, i.e. cooking grease, accumulate on the appliance. Do not use a steam cleaner to clean this appliance.

  • Page 7: Guide To The Tepan Yaki

    Guide to the Tepan Yaki Rear heated area Indicators Front heated area Cooking zone indicators Display On/Off indicator Control knob, rear cooking zone Temperature control light Control knob, front cooking zone "Residual Heat" indicator Standard accessory Stainless steel spatula...

  • Page 8: Before Using For The First Time

    Before using for the first time Clean the appliance Heat the appliance ^ Before using for the first time, clean Metal components of the appliance the appliance with a damp cloth and have a protective coating which may dry with a soft cloth. give off a slight odor the first time the appliance is heated.

  • Page 9: Use

    The Tepan Yaki is divided into two When the appliance is switched on, the heating areas, which can be used and On/Off indicator and temperature control light %come on. The temperature adjusted separately. For large quantities, you can use the entire control light "responds"...

  • Page 10: Settings

    Settings Cooking Setting Range Keep cooked foods warm 1 - 2 Sauté fruit, e. g. diced apples, halved peaches, 2 - 4 sliced bananas, etc. Sauté vegetables, e. g. sliced mushrooms, onions, 5 - 7 peppers, etc. Gently pan-fry fish 7 - 9 Quickly pan-fry meat, firm fish, eggs, pancakes, 9 - 11...

  • Page 11: Grilling Tips

    Grilling tips Before each use, wipe the griddle with a damp cloth, to remove dust or other residue. – It is best to pre-heat the appliance for 8-10 minutes, at the preferred cooking temperature. For power settings 9 to 12, pre-heat at level 12. –...

  • Page 12: Cleaning And Care

    – Do not use any sharp or pointed objects which could damage the seal a few drops of stainless steel cleaner between the frame and the (available from Miele) using a damp countertop. cloth. ^ Wipe off the cleaner with water and –...

  • Page 13: Frequently Asked Questions

    Unauthorized repairs could cause injury or appliance damage. What if the appliance does not heat up after it is turned on? Possible fault Solution The circuit breaker has tripped. Check whether a fuse is blown. If the problem persists contact Miele.

  • Page 14: Technical Service

    Technical Service In the event of a fault which you cannot easily fix yourself, please contact the Miele Technical Service Department at the address on the back of this booklet. When contacting Technical Service please quote the serial number and model of the appliance.

  • Page 15

    Miele Service department, Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele. Our goal is to prevent unauthorized (and untrained) service personnel from working on your Miele products, possibly doing further damage to them, you and/or your home.

  • Page 17: Installation Instructions

    Installation Instructions IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE To prevent accidents and appliance damage read these instructions before installation or use.

  • Page 18: Important Installation Safety Instructions

    The minimum distances given in installation in these applications. Please these Installation Instructions must contact the Miele Technical Service be observed in order to ensure safe Department with specific requirements. operation. Failure to do so increases The electrical connection should be the risk of fire.

  • Page 19

    IMPORTANT INSTALLATION SAFETY INSTRUCTIONS Safety distances above the appliance The minimum safety distance given by the hood manufacturer must be maintained between the cooktop and the hood above it. See the installation instructions of the hood for these safety measurements. If the hood manufacturers instructions are not available or if flammable objects are installed over the cooktop (e.g.

  • Page 20

    2" (50mm) 2" (50 mm) for CS 1112 CS 1122 CS 1212 CS 1221 CS 1223 CS 1326 CS 1411 not recommended 6" (150 mm) CS 1312 CS 1322 CS 1421 10" (250 mm) for CS 1011...

  • Page 21: Installation

    Installation Safety distance from the wall covering If a wall covering is installed, a minimum safety distance must be maintained between the countertop cut-out and the covering, since high temperatures can damage these materials. If the covering is made of a combustible material (such as wood), the distance between the countertop cut-out and the wall covering must be a minimum of 2"...

  • Page 22

    Installation Installation dimensions Spring clips Appliance front Installation height Power supply box with connection cable, L = 78 3/4" (2000 mm) Rating label...

  • Page 23

    Installation Cut out If during installation the seal around ^ Make the countertop cut-out for the the frame does not sit flush with the desired number of appliances. countertop in the corners, the corner Remember to maintain a minimum radius, maximum "...

  • Page 24: Installation Of Multiple Appliances

    Installation Installation of multiple appliances When installing more than one combiset appliance, a support bar must be installed between the appliances. Countertop cut-out Countertop cut-out two appliances three appliances For the installation of three appliances For the installation of two appliances the width of the countertop cut-out D is the width of the countertop cut-out D is the sum of A and B and C.

  • Page 25

    Installation Sample calculations for a countertop cut-out for three appliances appliance width appliance width appliance width Countertop minus 5/16" minus 5/16" cut-out (8 mm) (8 mm) 11" (280 mm) 11 5/16" (288 mm) 11" (280 mm) 33 3/8" (848 mm) 11"...

  • Page 26

    Installation Spring clips Support bars Space between support bar and countertop Sealing strip The illustration represents the attachment of spring clips and support bars for 3 appliances. An additional support bar is required for each additional appliance. The position for attachment of an additional support bar depends on the width of appliance B.

  • Page 27: Attach The Spring Clips And Support Bars

    Installation Attach the spring clips and support bars Wood or solid surface countertops ^ Place the supplied spring clips and the support bars at the marked positions as shown above, by laying them on the upper edge of the cut-out and then securing them with the "...

  • Page 28

    Installation Granite countertop The screws are not needed for granite countertops. 3 / 1 6 " 1 " - 1 m m ) ( 2 5 - 3 0 ^ Coat the edges of the spring clips ^ and the space between the support bars and the countertop...

  • Page 29

    Installation ^ Place the front edge of the next Installing the appliance / appliance into the cut-out. appliances ^ Connect the appliance / appliances ^ Feed the power cord down through to the main power supply (see the cut-out. "Electrical connection"). ^ Place the front edge of the appliance ^ Turn the appliance / appliances on into the cut-out.

  • Page 30: Sealing

    Installation Sealing Tiled surfaces The grouting and shaded area under The appliance must not be permanently the appliance frame must be flat and sealed into the countertop when even so that the frame will lie evenly installed. The sealing strip under the and the sealing strip under the edge of edge of the appliance provides a the upper part of the appliance can...

  • Page 31: Electrical Connection

    Electrical connection Power supply CAUTION: Before installation or ^ Be sure your electrical supply servicing, disconnect the power matches the rating label. supply by either removing the fuse, shutting off the main power or The rating label is located on the manually "tripping"...

  • Page 32: Help Protect Our Environment

    Help protect our environment Disposal of packing materials Disposal of an old appliance The cardboard box and packing Old appliances contain materials that materials are biodegradable and can be recycled. Please contact your recyclable. Please recycle. local recycling authority about the possibility of recycling these materials.

  • Page 36

    Alteration rights reserved / 2609 M.-Nr. 07 346 960 / 03 M.-Nr. 07 346 960 / 03 For the most updated manual see the Miele web site.
