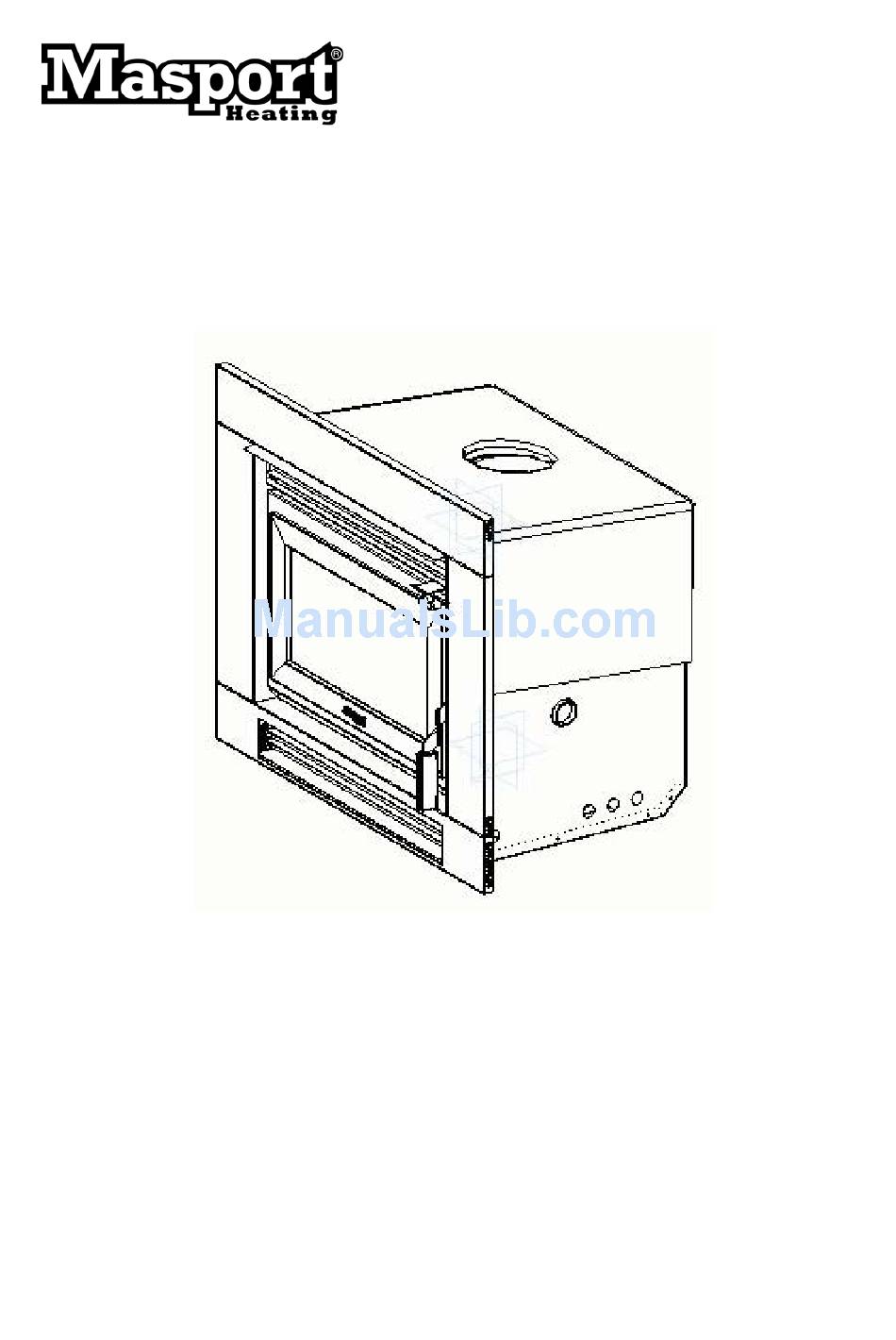

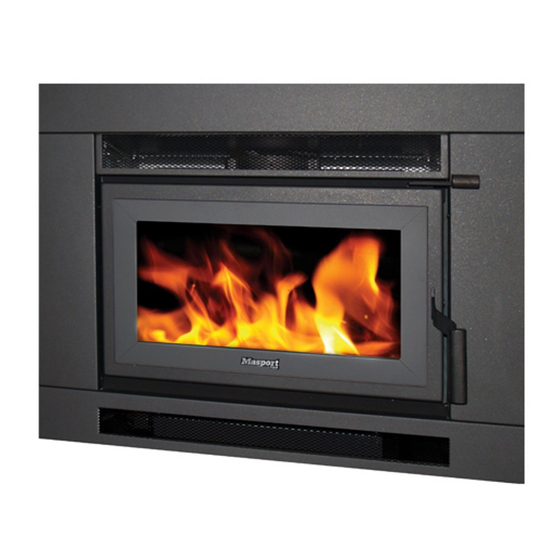

MASPORT I5000 INSERT FIRE, NEW ZEALAND MODEL

INSTALLATION INSTRUCTIONS

25.03.2011
Manufactured in New Zealand by:
GLEN DIMPLEX AUSTRALASIA LIMITED
PO Box 58-473 Botany
Auckland 2163
Ph: 0800 666 2824
Fax: 09274 8472
Email: sales@glendimplex.co.nz
Web: www.glendimplex.co.nz
Part. No. 593675
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Masport I5000

Summary of Contents for Masport I5000

  • Page 1: Installation Instructions

    MASPORT I5000 INSERT FIRE, NEW ZEALAND MODEL INSTALLATION INSTRUCTIONS Manufactured in New Zealand by: GLEN DIMPLEX AUSTRALASIA LIMITED PO Box 58-473 Botany Auckland 2163 Ph: 0800 666 2824 Fax: 09274 8472 Email: sales@glendimplex.co.nz Web: www.glendimplex.co.nz 25.03.2011 Part. No. 593675...
  • Page 2 The model I5000 has been tested to demonstrate compliance with current general emission re- quirements in Australia and New Zealand, but some areas have stricter limits. So check before...
  • Page 3 INSTALLATION UNSAFE. NOTE The following instructions cover the installation of the model I5000 Insert Fire into a sound masonry fireplace which has an integral masonry chimney. Where such a chimney is not available, the heater can be installed into a timber framed structure provided that it is mounted in a special ‘build in’...

  • Page 4: Installation Requirements

    INSTALLATION REQUIREMENTS FIREPLACE PREPARATION For a safe installation the following matters must be attended to: The masonry fireplace and chimney must be thoroughly cleaned and checked for soundness. The chimney must not connect to a second fireplace. The joint between the chimney face and the fireplace surround must be checked and sealed to prevent leakage if necessary.
  • Page 5 HEARTH REQUIREMENTS: You need an insulating floor protector (hearth). The minimum requirement for an insulating floor protector (hearth) is one layer of 12mm thick ‘PROMATECT H’, SUPALUX, or ETERPAN LD (or simi- lar with a heat transition coefficient of 5 W/m³ K), and a layer of tiles or slate. This will give a thick- ness of approximately 20mm, and the extension from the face of the glass must be at least 470mm (or 471mm from fireplace surround) if the floor protector is flush with the surrounding heat sensitive material.

  • Page 6: Installing The Firebox And Flue

    INSTALLING THE FIREBOX AND FLUE Remove the door from the fire by opening it and lifting it up until the top pivot comes free and then lower the door until the bottom pivot comes free. Fit the additional Insulating Blanket (supplied with the fire) over the factory fitted insulating blanket. See drawing on page 7.
  • Page 7 PLEASE REFERE TO PAGE 8 FOR DETAILS ON HOW TO INSTALL THE FLUE CASINGS.
  • Page 8 GDFLU003 FLUE CASING 170mm, INSTALLATION INSTRUCTIONS THESE SPECIAL FLUE CASINGS MUST BE USED WHEN A MASPORT I5000 WOOD FIRE IS INSTALLED IN A CHIMNEY RECESS. PLEASE REFER ALSO TO THE SPECIFIC INSTALLA- TION MANUAL SUPPLIED WITH THE FIRE. • CLAMP CENTRALISING BRACKET TO FLUE PIPE 500mm ABOVE THE FLUE SPIGOT OF THE FIREBOX (TAPERED BRACKETS FACING UPWARDS).

  • Page 9: Installing The Fascia

    INSTALLING THE FASCIA Move fascia to the front of fire and gently slide the assembly inwards. Secure with 4 screws to the cabinet. The screws are positioned either side of the door opening. Fit the air slide extension bracket to the air slide using two 8 gauge x 10mm black screws. Push the air slide knob over the air slide extension bracket.
