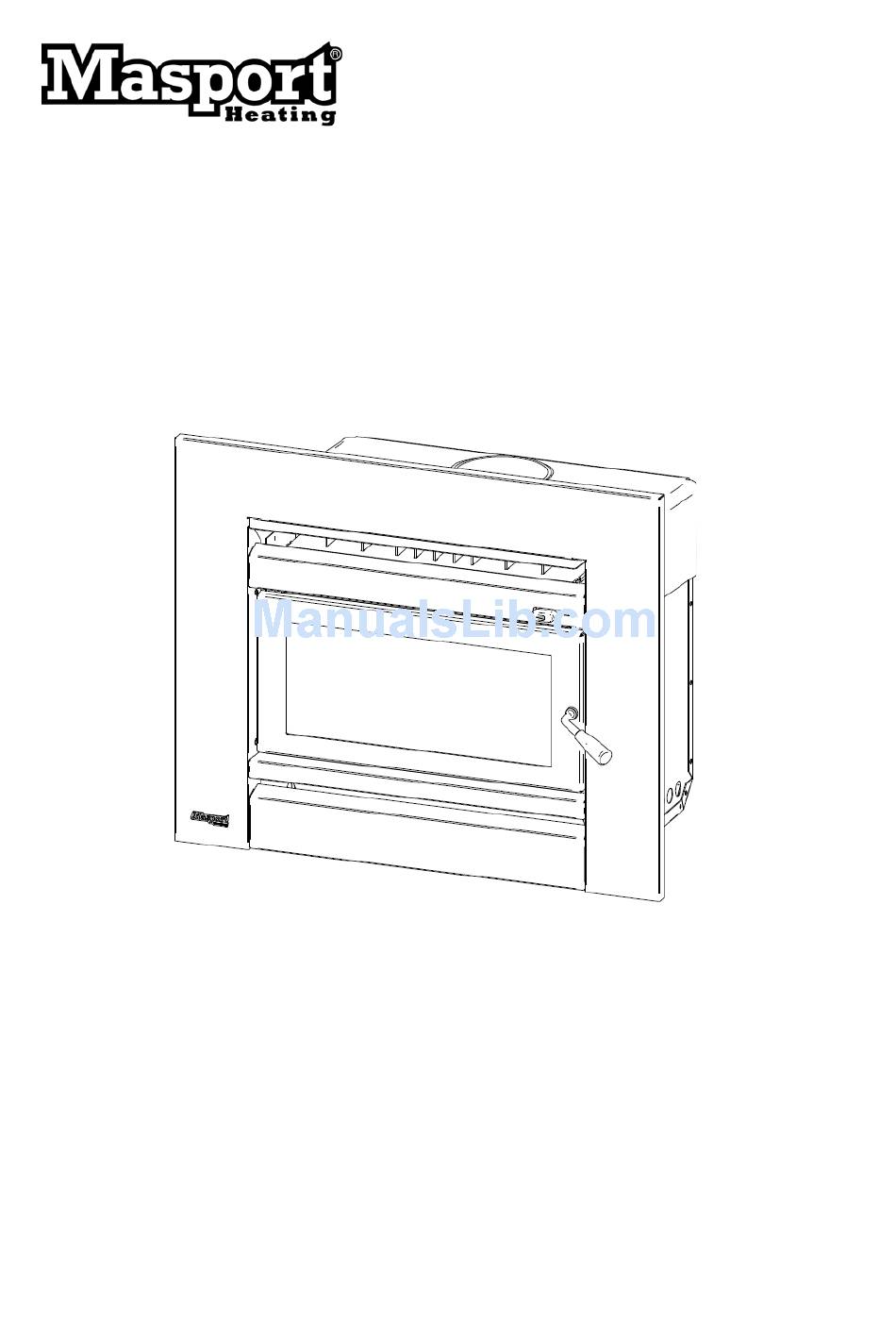

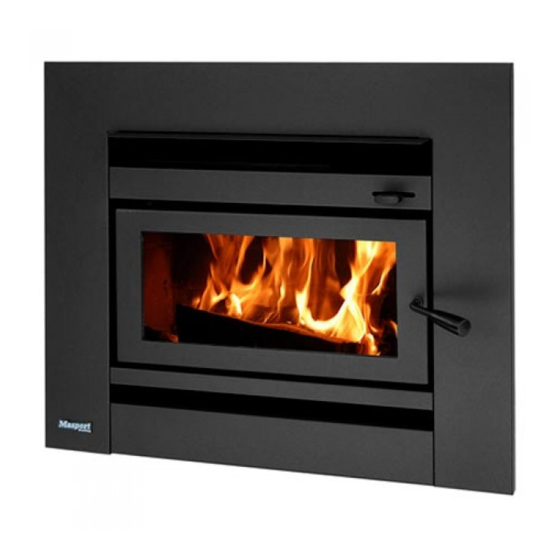

MASPORT I2000 INSERT FIRE, AUSTRALIAN MODEL INSTALLATION INSTRUCTIONS Distributed in Australia by: Manufactured in New Zealand by: GLEN DIMPLEX AUSTRALIA PTY LIMITED GLEN DIMPLEX NEW ZEALAND LIMITED Unit 1, 21 Lionel Road, Mount Waverley PO Box 58-473 Botany Victoria, 3149...
Page 2
The model I2000 has been tested to demonstrate compliance with current general emission re- quirements in Australia, but some areas have stricter limits. So check before purchasing or in-...
Page 3
FACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE. CAUTION: CRACKED OR BROKEN COMPONENTS, E.G. GLASS PANELS, MAY RENDER THE INSTALLATION UNSAFE. NOTE The following instructions cover the installation of the model I2000 Insert Fire into a sound masonry fireplace which has an integral masonry chimney.
INSTALLATION REQUIREMENTS FIREPLACE PREPARATION For a safe installation the following matters must be attended to: The masonry fireplace and chimney must be thoroughly cleaned and checked for soundness. The chimney must not connect to a second fireplace. The joint between the chimney face and the fireplace surround must be checked and sealed to prevent leakage if necessary.
Page 5
HEARTH REQUIREMENTS: You need an insulating floor protector (hearth). The minimum requirement for an insulating floor protector (hearth) is 24mm thick ‘PROMATECT H’, SUPALUX, or ETERPAN LD (or similar with a heat transition coefficient of 5 W/m³ K), and a layer of 8mm tiles or slate. This will give a thickness of approximately 32mm, and the extension from the face of the glass must be at least 420mm (or 432mm from fireplace surround) if the floor protector is flush with the surrounding heat sensitive ma- terial.
INSTALLING THE FIREBOX AND FLUE Remove the door from the fire by opening it and lifting it up until the top pivot comes free and then lower the door until the bottom pivot comes free. You require a 150mm diameter flue. We recommend the use of the GDA flue kit for insert fires. Measure the fireplace recess and remove bricks as necessary to accept the firebox outer case.
Page 7
Bring the fascia in its upright position close to the fire and connect the earth lead to the tag on the lower end of the left hand fascia bracket. This is a quick connect push-on connection. Connect the three terminals at the end of the loom to the switch. See sketch for position of wires. Ensure the wiring loom rests in the notch behind the left hand fascia.
