Replacing the Pick Roller Assembly

Replace the pick roller assembly in the following procedure:
1.
Unplug the power connection cable (power cable or USB bus power cable)
from the power supply source (AC outlet or computer).
2.
Remove any documents from the ADF paper chute (cover).
3.

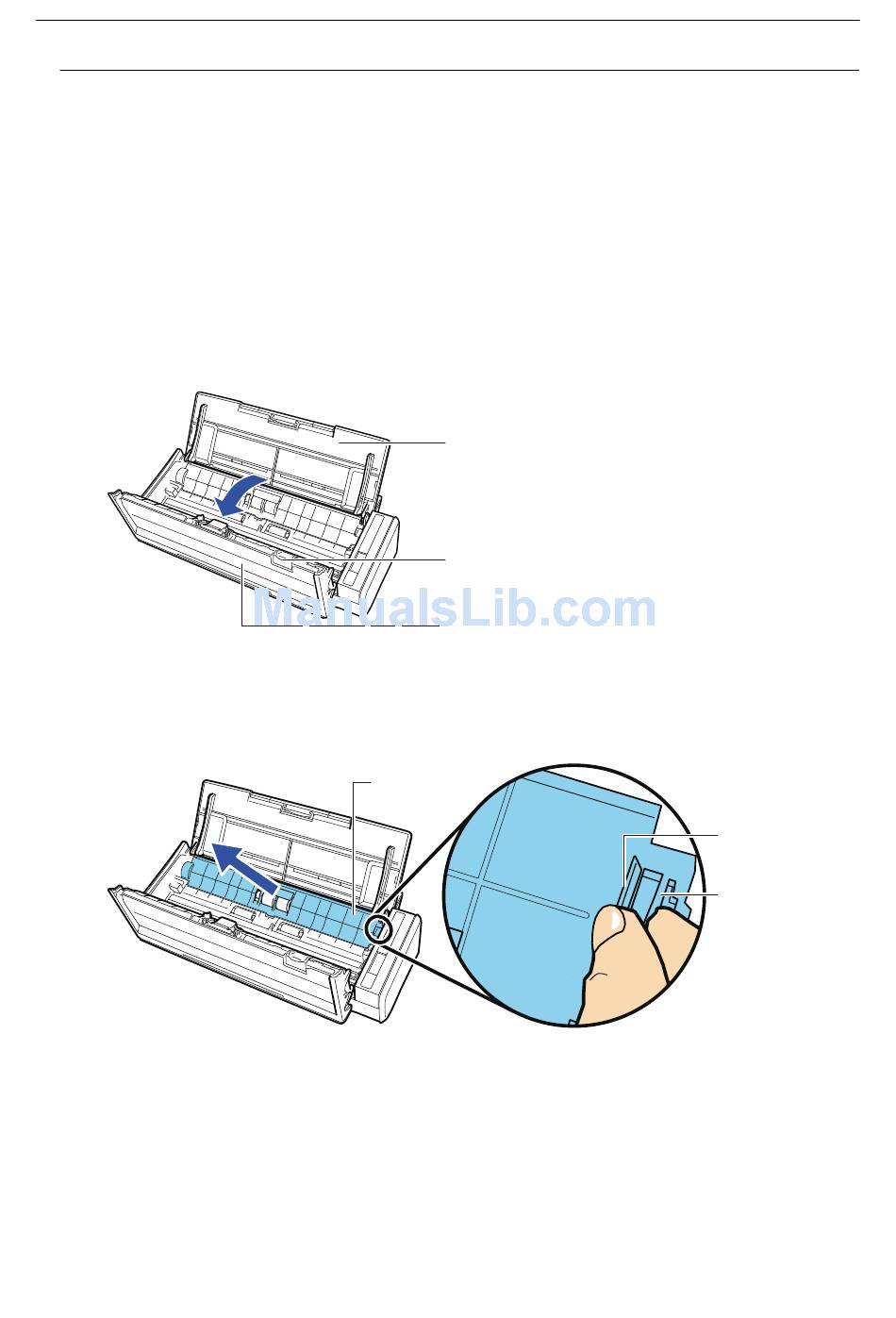

Pull the ADF release tab to open the ADF top section.
4.
Remove the sheet guide.
While holding the squeeze clip on the right end and pressing it inward, lift the sheet guide to
remove it.
5.
Turn the bushing that is on the left.
ADF Paper Chute (Cover)
ADF Release Tab
ADF Top Section
Sheet Guide
108
Replacing Consumables
Squeeze
Clip
Squeeze
Clip
