AT&T DEFINITY 8101 User Manual page 11

Dial pad
Handset jack
Speaker button (on the 8110
only)
Flash button
Program button (on the 8102
and 8110 only)
The SIDE VIEW shows the following features:
Mode Selector (Tone or Pulse)
(on the 8101 only)
Positive Disconnect
(ON or OFF) (on the 8101 only)
Tone Selector (HI or LO) (on
the 8102 and 8110 only)
Tone Selector (FAST or SLOW)
(on the 8102 and 8110 only)
Ringer Volume
control
Speaker volume control
(On the 8110 only)
The standard 12-button pad for dialing telephone
numbers. The dial pad is also used with the PROGRAM
button to store numbers on the programmable dialing
buttons or to store dialing access codes in the Redial
Auto-Pause feature.
For connecting the handset to your telephone.
For accessing the built-in speakerphone and microphone
combination.
For using features such as Conference with business
communications systems, and for custom calling
features if you are using your telephone at home.
For storing telephone numbers on the programmable
dialing buttons and dialing access codes in the Auto-
Pause feature of Redial
For selecting one of two dialing modes (tone or pulse).
For selecting positive disconnect or turning it off
(on or off).
For selecting one of two tone ringer frequencies
(high or low).
For selecting one of two tone ringer modulation rates
(fast or slow).

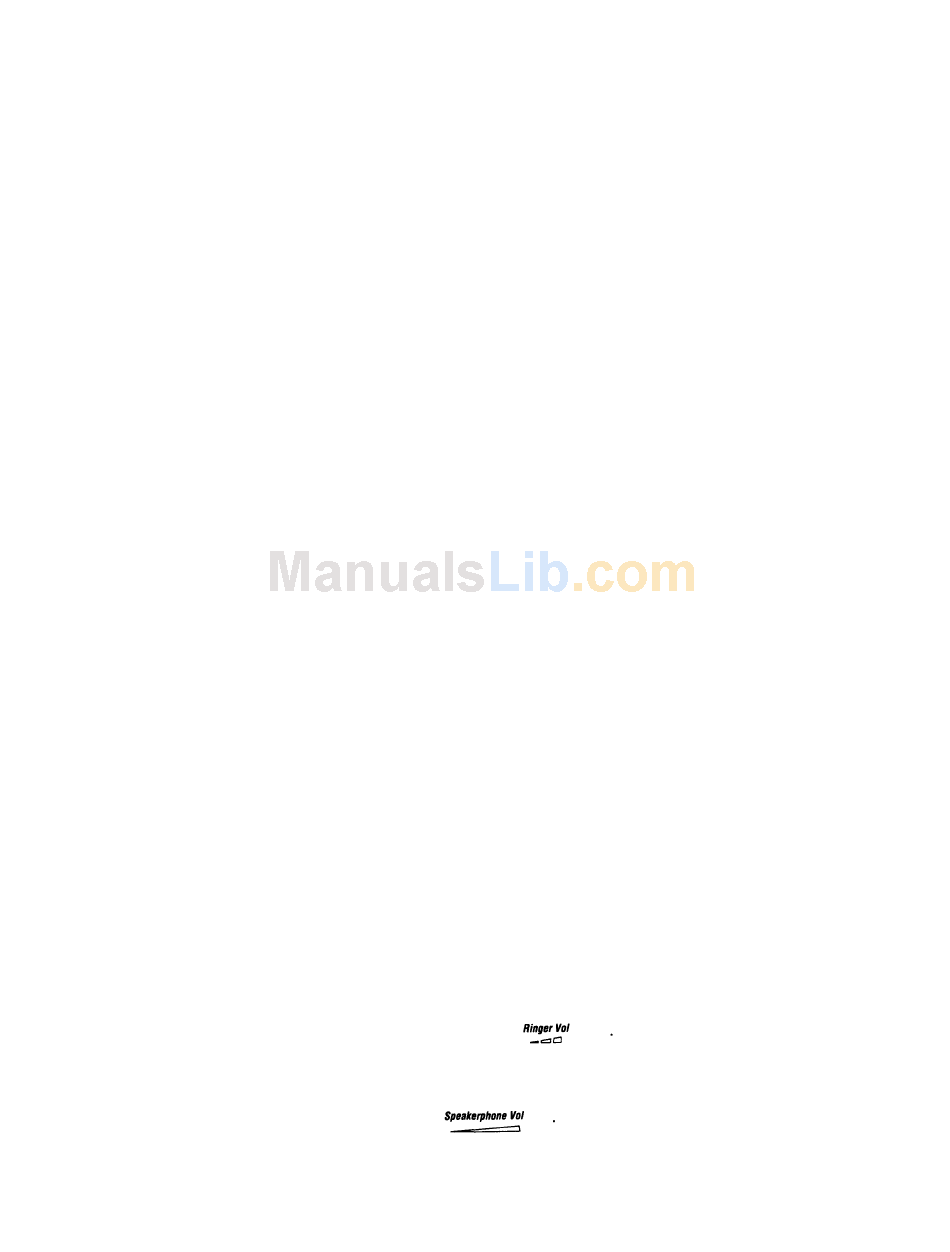

A 3-position switch to control the volume for the tone
ringer. Slide it up (away from you) for a louder ring,
down (toward you) for a quieter ring. The volume
control is labeled
For raising or lowering the volume of the built-in
speakerphone. The volume control is
labeled
6
