Pro-Form PFTL01299.0 User Manual page 8

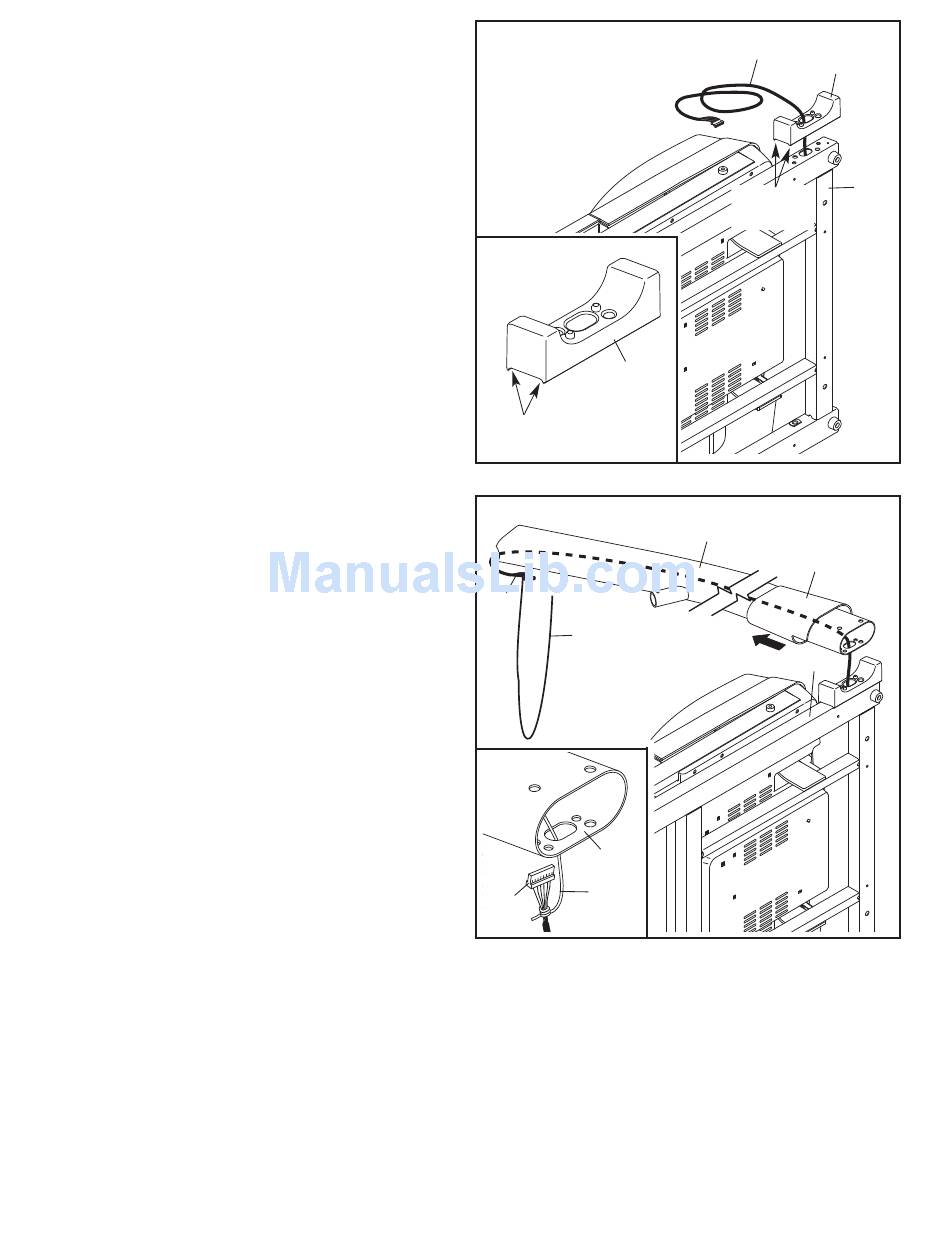

3. Identify the Right Upright Spacer (91), which is
marked with a "Right" sticker.
See the inset drawing. Orient the Right Upright
Spacer (91) so that the two rounded corners are
positioned as shown.
Insert the Upright Wire (85) through the Right
Upright Spacer (91). Set the Right Upright
Spacer on the Base (94).
4. Identify the Right Upright (83), which is marked
with a "Right" sticker. Orient the Right Upright
Cover (86) as shown. Slide the Right Upright
Cover onto the lower end of the Right Upright.
Have a second person hold the Right Upright
(83) near the Base (94). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Upright Wire (85). Then,
pull the other end of the wire tie until the Upright
Wire is routed completely through the Right
Upright.
