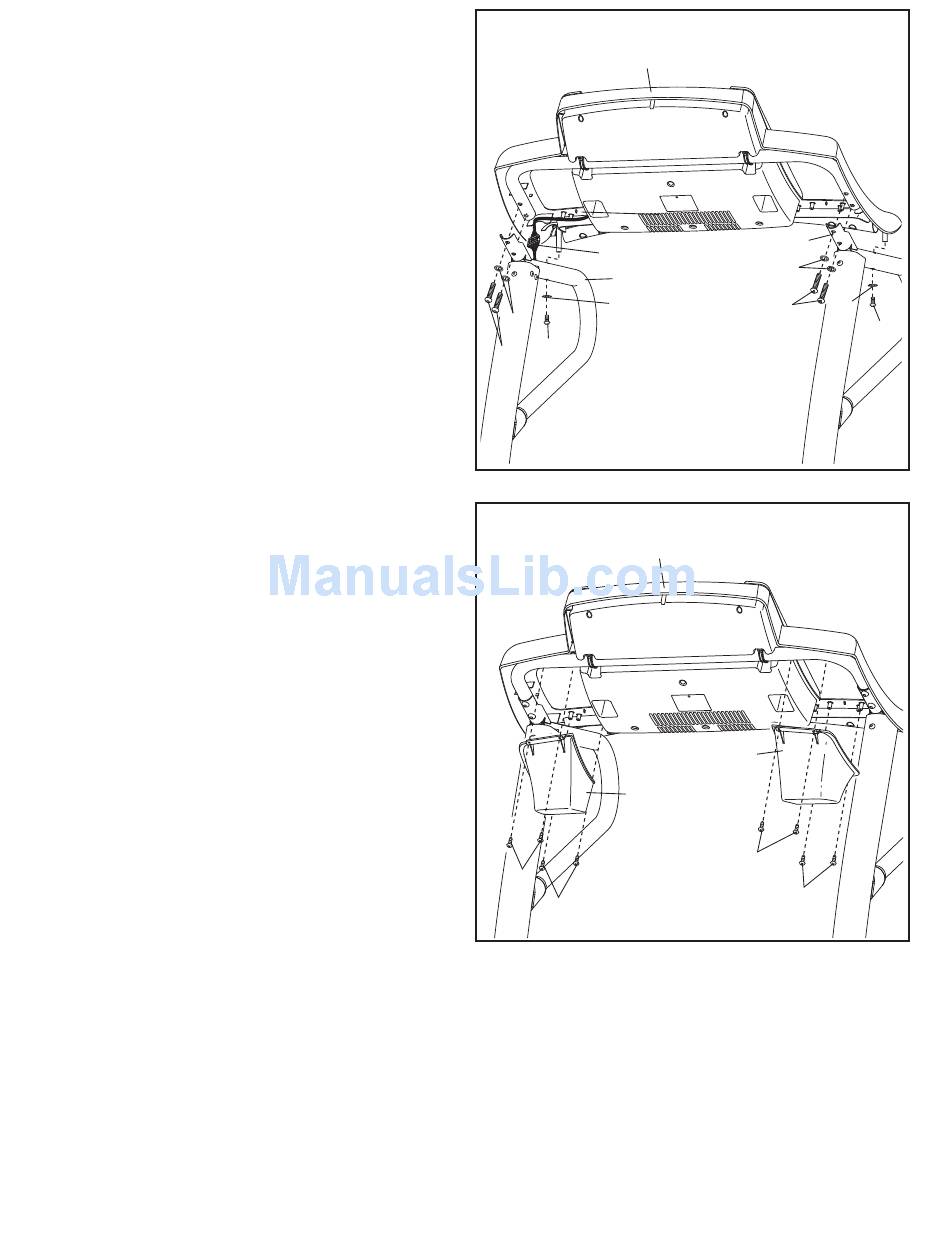

11. Set the console assembly on the Left and Right
Handrails (78, 79). Be careful not to pinch any
wires. Insert the excess Upright Wire (85) into
the Right Handrail.
Attach the console assembly to the Handrails
(78, 79) with four 5/16" x 1 1/2" Patch Bolts (4),
four 5/16" Star Washers (9), two 1/4" x 1/2"
Patch Bolts (8), and two 1/4" Star Washers (12).
Start all six Patch Bolts before tightening
any of them.
12. See steps 5 and 6. Tighten the 3/8" x 5 1/2"
Patch Bolts (7).
See steps 4 and 6. Slide the Upright Covers
(86, 87) down the Uprights (82, 83).
Attach the Left Accessory Tray (101) and the
Right Accessory Tray (104) to the console as-
sembly with eight #8 x 1/2" Screws (1).
