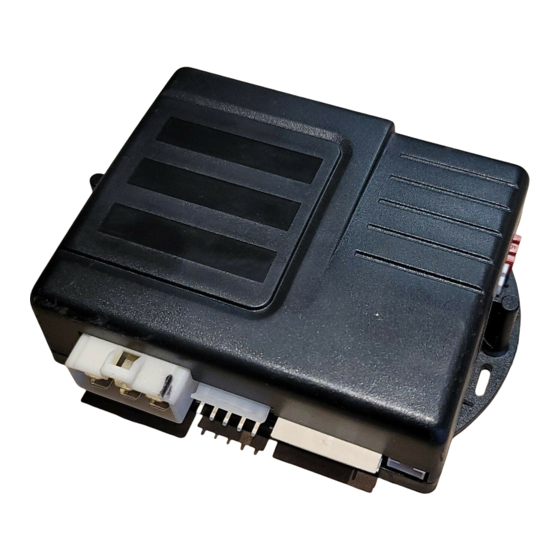

ProStart CT-3471TW Quick Installation Manual

T W O - W A Y L C D A U T O M A T I C / M A N U A L
T R A N S M I S S I O N R E M O T E
S Y S T E M W I T H V I R T U A L
P R G - 1 0 0 0 C O M P A T I B L E )
Q I
UICK NSTALLATION
To obtain a copy of the installation guide, please visit our website at
Table of Contents
Manual or Automatic Transmission setup 1
Entering Programming Mode 2
Programming the transmitter to the module 2
Entering Programming Options 3
Programming Options 3
Horn adjustment 5
Setting up the TACH 5
Virtual Tach adjustment 5
Multi-speed Tach Programming (if installed) 5
The wiring diagram is at the middle of this guide.
MANUAL OR AUTOMATIC TRANSMISSION SETUP
This module may be installed on vehicles with manual or automatic transmissions. It is originally configured for
manual transmissions. If the vehicle you are working on is automatic, it is necessary to make a few quick and
easy modifications before the unit is connected. In the event that the configuration requires changes afterwards,
a complete reset will be necessary before those changes become effective.
To install this unit in a vehicle with a MANUAL transmission:
1. Make sure the Yellow loop on the PC board is connected. (Default)
2. Connect the Orange handbrake wire, located on the 12-pin harness, to the vehicle handbrake
switch. (-)
3. Connect the Blue/White (+) door input OR the Grey (-) door input wire, located on the 12-pin
harness, to the vehicle door pin wire. It will monitor all the doors of the vehicle (only use 1 of the 2
door trigger inputs).
4. Make sure the Purple TACH wire is installed on a TACH source – the TACH wire MUST be hooked
up when the module is set for a manual transmission.
5. Make all your regular connections.
6. Power up the unit by first inserting the 5-pin connector, then the 6-pin connector and finally the 12-
pin connector. The parking lights will flash 4 times.
7. When learning the transmitter, the parking lights will flash 5 times quickly.
8. Upon the first successful remote start, the system will lock the transmission settings to manual
mode.
To install this unit in a vehicle with an AUTOMATIC transmission:
1. Cut the loop on the back of the remote starter module (Yellow wire).
2. Make sure the Orange handbrake wire is not connected to any of the vehicle circuits (cut and
tape).
3. Make all the regular connections.
4. The parking lights will flash 4 times.
5. When learning the first transmitter, the parking lights will flash 5 times quickly then give 2 slow
flashes.
6. Upon the first successful remote start, the system will lock the transmission settings to automatic
mode.
Notice
The manufacturer will accept no responsibility for any electrical damage resulting from improper installation of the product, be that either
damage to the vehicle itself or to the unit. This unit must be installed by a certified technician using all safety devices supplied. Please
note that this guide has been written for properly trained Autostart technicians: a certain level of skills and knowledge is therefore
assumed. Please review the installation guide carefully before beginning any work.
Warning
Before installing the unit, if installing on a vehicle with a manual transmission, test that the OEM Door Switch contacts of the vehicle work
well, and that the Parking Brake system operates properly. If installing on a vehicle with an automatic transmission, test that the vehicle
does not start when the gearshift lever is in the "Drive" position. If it starts in gear, reset the remote starter to manual transmission.
Doc#: 111007
Rev.: 1.0 © 2011
S T A R T E R A L A R M
T A C H S Y S T E M ( A S
G
UIDE
www.prostart.org
Resetting the Module
Bypass
NEW FEATURE – SmartStart™
Testing
Diagnostics – Parking Light Flash Table
Diagnostic table for start failure.
Diagnostic table for shutdown.
- CT-3471TW - - FcN -
6
6
6
6
8
8
8
Canada
