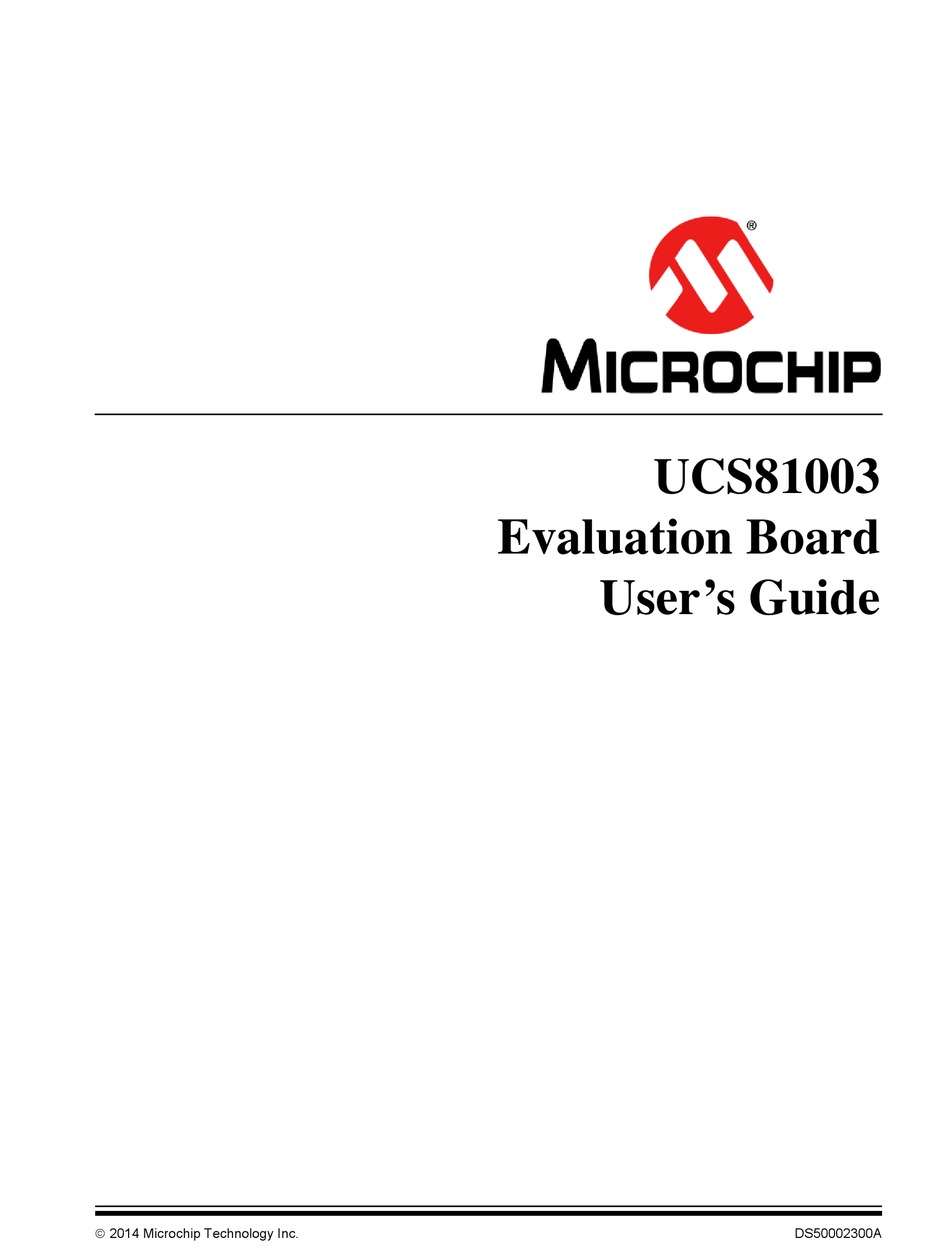

Page 1: Evaluation Board
UCS81003 Evaluation Board User’s Guide 2014 Microchip Technology Inc. DS50002300A... - Page 2 WiperLock, Wireless DNA, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries.
- Page 3 UCS81003 Evaluation Board User’s Guide Object of Declaration: UCS81003 Evaluation Board 2014 Microchip Technology Inc. DS50002300A-page 3...
- Page 4 UCS81003 Evaluation Board User’s Guide NOTES: 2014 Microchip Technology Inc. DS50002300A-page 4...
-
Page 5: Table Of Contents
Chapter 1. Product Overview 1.1 Introduction ....................11 1.2 UCS81003 Evaluation System ..............11 1.3 What the UCS81003 Evaluation Board Kit Contains ........12 Chapter 2. Installation and Operation 2.1 Introduction ....................13 2.2 Connectors on the Evaluation Board ............13 2.3 LEDs on the Evaluation Board .............. - Page 6 UCS81003 Evaluation Board User’s Guide 4.2.4 Active Mode Selection ................28 4.3 Tabs Description ..................29 4.3.1 Main Tab ....................29 4.3.2 Configuration and General Status Tab ............33 4.3.3 Custom Charging Tab ................35 4.3.4 Register Set Tab ..................37 4.3.5 Demo Tab ....................39 4.4 Troubleshooting ....................
-
Page 7: Preface
• The Microchip Web Site • Customer Support • Document Revision History DOCUMENT LAYOUT This document describes how to use the UCS81003 Evaluation Board. The manual layout is as follows: • – Important information about the UCS81003 Chapter 1. “Product Overview”... -
Page 8: Conventions Used In This Guide
UCS81003 Evaluation Board User’s Guide CONVENTIONS USED IN THIS GUIDE This manual uses the following documentation conventions: DOCUMENTATION CONVENTIONS Description Represents Examples Arial font: ® Italic characters Referenced books MPLAB IDE User’s Guide Emphasized text ...is the only compiler... Initial caps... -
Page 9: Recommended Reading
Preface RECOMMENDED READING This user's guide describes how to use UCS81003 Evaluation Board. Other useful documents are listed below. The following Microchip documents are available and recommended as supplemental reference resources. • UCS81003 Data Sheet - “Automotive USB Port Power Controller with Charger Emulation”... - Page 10 UCS81003 Evaluation Board User’s Guide NOTES: 2014 Microchip Technology Inc. DS50002300A-page 10...
-
Page 11: Chapter 1. Product Overview
Figure 1-1: ® • Customer-provided Windows • UCS81003 graphical user interface (GUI) program • UCS81003 Evaluation Board • USB Cable for GUI communications (Standard-A plug to mini-B plug) • 5V power source (V • Customer-provided portable device and OEM USB charging cable (with Standard-A plug at board’s end) -
Page 12: What The Ucs81003 Evaluation Board Kit Contains
UCS81003 Evaluation Board User’s Guide A block diagram of the UCS81003 Evaluation Board is shown in Figure 1-2 below: USB STD-A USB STD-A PLUG RECPT (Data & Power (To Portable From Host) Device) AUX Input (Power) UCS81003 Control/Status Manual/Bridge Configuration &... -
Page 13: Chapter 2. Installation And Operation
Chapter 2. Installation and Operation INTRODUCTION This chapter identifies the main connectors, LEDs, jumpers and test points that can be found on the UCS81003 Evaluation Board. It also explains the steps to install the board’s graphical user interface. CONNECTORS ON THE EVALUATION BOARD Figure 2-1 shows the top of the evaluation board and highlights the connectors. -
Page 14: Leds On The Evaluation Board
UCS81003 Evaluation Board User’s Guide LEDS ON THE EVALUATION BOARD Figure 2-2 shows the top of the Evaluation Board and highlights the LEDs. LED2 LED1 SMBus Activity USB_OK (red) (green) LED3 ALERT LED4 (red) Attach Detection (green) FIGURE 2-2: Evaluation Board Top View – LEDs. -
Page 15: Jumpers On The Evaluation Board
V . This is the recommended configuration when evaluating the Attach Detection feature of the UCS81003. If the board is evaluated with a PC running the GUI, then the V must be supplied after the USB cable is plugged into the J2 connector. - Page 16 SMBus data and clock lines If the UCS81003 is in SMBus mode (as selected by using J16 instead of J18), then two jumpers must be populated in 1-2 and 3-4 positions to connect the clock and data lines to the MCP2221 USB bridge.
-
Page 17: Data Test Points On The Evaluation Board
• J16 or J18 • J17 or J19 • If UCS81003 is configured in SMBus mode (as selected by using J16 instead of J18), two jumpers must be populated on J7 and J6 must be left unpopulated. UCS81003 is configured in Stand-Alone mode, the jumpers on J7 must be left off. -
Page 18: Ground Test Points On The Evaluation Board
J11, J12 Signal Ground These test points connect to the signal ground of the board. These are the ground reference for the UCS81003. J13, J14, J15 Earth Ground These test points connect to the earth ground of the board (the shield of the USB connectors). -
Page 19: Software Installation
Installation and Operation SOFTWARE INSTALLATION To begin using the UCS81003 Evaluation Board, software must be installed on a ® Windows -based computer with a USB port. 1. Download the software archive from the board’s web page, unzip it and double-click the Setup.exe, to start the installation. - Page 20 When installation is complete, the program will automatically run. If a screen appears requiring a restart for the changes to take effect, reboot the computer. The UCS81003 interface will start with the SMBus communications. 2014 Microchip Technology Inc.
-
Page 21: Chapter 3. Hardware Description
Chapter 3. Hardware Description UCS81003 DEVICE The UCS81003 provides a single USB port power switch for precise control of up to 3.0A continuous current (2.85A typical) with overcurrent limiting, dynamic thermal management, latch/auto-recovery upon fault, selectable active low or high enable, under and overvoltage lockout, and back-drive protection. -
Page 22: Mcp2221 Usb-To-Smbus Bridge
M1, M2. DIRECT SMBUS CONNECT OPTION It is also possible to connect an external SMBus master to the UCS81003 Evaluation Board. Remove the jumpers on J7 and connect the SMBus master to the header pins that are linked directly to UCS81003 pins SMDATA/LATCH and SMCLK/S0. Note that ground must be connected to one of the test point grounds or header pins on the EVB. -
Page 23: Chapter 4. Software Description
To get the graphical interface and the evaluation board running, follow these instructions: 1. Start the UCS81003 GUI software: from the Windows Start menu, select Programs > Microchip > UCS81003. 2. Connect the USB mini connector end of the cable to the board and the standard USB connector of the cable to any available USB port on the PC. -
Page 24: Tips For Using The Evb Gui
(see Section 4.3.4.3 “Configuration Save and Load”). • The GUI cannot be used to demonstrate UCS81003 behavior in Stand-Alone mode since SMBus communication is required. 4.1.2 GUI Abbreviations... -
Page 25: Interface Description And Operation
When this button is clicked, the Run button appears under an extended menu bar, as shown in Figure 4-3. Extended Menu Run Button Abort Execution Button FIGURE 4-3: Stop and Run Button. 2014 Microchip Technology Inc. DS50002300A-page 25... - Page 26 Single Read. 4.2.1.6 DEFAULT When this button is pressed, it loads the defaults to all registers of the UCS81003. 4.2.1.7 STEP When selected, Step will go through the Emulation Profiles in sequence, from Legacy 1 through 7, then BC1.2 DCP, and finally Custom.
-
Page 27: Pin State And Attach Status Panel
The pin indicators (SEL, PWR_EN, M1, M2 and EM_EN) shown in Figure 4-4 green if the signal on the corresponding pin on the UCS81003 device is high, and dark if the signal is low. If the “Pin Ignore” box is checked (see Section 4.2.3.3 “Pin... -
Page 28: Active Mode Selection
UCS81003 Evaluation Board User’s Guide 4.2.4 Active Mode Selection The Active Mode Selection section on the right side of the GUI, shown in Figure 4-5, provides a quick reference regarding operating state based on the values of M1, M2 and EM_EN. This section is always displayed. -
Page 29: Tabs Description
Main Tab Window Overview. 4.3.1.1 DEDICATED CHARGER EMULATION (DCE) CYCLE As shipped, the UCS81003 is ready to function as a dedicated charger, which will be applied when there is an attach detection. To view this behavior, perform the following: 1. Connect V to the evaluation board (see Section 2.4 “Jumpers on the... - Page 30 FIGURE 4-7: Main Tab - Charging Started. 4. Disconnect the portable device from the board. The UCS81003 should detect a removal, switch to the Detect power state, and stop delivering a charge. Figure 4-8 shows the interface after a removal was detected.
-
Page 31: Software Description
CHARGING DOWNSTREAM PORT (CDP) The CDP charging profile is based on the “USB Battery Charging Specification v1.x”. When a BC1.x-compliant portable device attachment is detected, the UCS81003 and the portable device do handshaking based on the standard. If handshaking is successful, charging occurs up to the set current limit. - Page 32 UCS81003 Evaluation Board User’s Guide As shown in Figure 4-10, the green trace is the instantaneous current, while Note: the red diagonal line is the charge being delivered in mAh. Both are also presented in numeric format in the bottom left boxes. Trace color and characteristics can be changed by clicking on the waveform boxes to the left of these numerical values.
-
Page 33: Configuration And General Status Tab
SMBus address is displayed. SMBus timeout can be disabled. 4.3.2.5 EMULATION PROFILE DISABLE Check the Profiles boxes to disable them. They will not be used during emulation. By selecting the “Disable ALL” will toggle all profile check boxes. 2014 Microchip Technology Inc. DS50002300A-page 33... - Page 34 UCS81003 Evaluation Board User’s Guide 4.3.2.6 ATTACH/REMOVE ENABLE Click the S0_SET box to remove the check mark and disable the function. 4.3.2.7 FAULT HANDLER These are controls related to fault handling. 4.3.2.8 GENERAL CONTROL Controls for general parameters. 4.3.2.9 THERMAL REGULATION Controls for thermal and detection delay parameters.
-
Page 35: Custom Charging Tab
These configurations include signaling on the USB data lines, as well as what method of current limiting to employ (Constant Current or Trip). For more information, refer to the UCS81003 Data Sheet and AN24.14 - “UCS1002 Fundamentals of Custom Charger Emulation” (DS200005234). - Page 36 Customs Emulation Configuration allows for a quick way to save the necessary regis- ters to configure the UCS81003 for a custom profile to a file. Enter the path and press the SAVE button. Files will be overwritten if duplicate file names are used.
-
Page 37: Register Set Tab
4.3.4.3 CONFIGURATION SAVE AND LOAD The Register Set tab contains controls (Figure 4-15) which save the settings currently configured in the UCS81003 to allow quick reconfiguration at any time. 2014 Microchip Technology Inc. DS50002300A-page 37... - Page 38 FIGURE 4-15: Save/Load Section. To save configuration settings, configure the UCS81003 as desired, then display the Register Set tab. Type a path in the “File Stored Path” field or press the Browse button to select the folder where the configuration file will be saved. The file should be named with the .txt extension or with a similar text file format.
-
Page 39: Demo Tab
STEP 2: DEFINE CUSTOM EMULATION CONFIGURATIONS At installation, a set of files are preloaded on the users system (profile1.txt – profile7.txt) with the default profiles of the UCS81003. These files can be changed easily by using the Custom Charging tab. - Page 40 4.3.5.4 CUSTOM FILE PATH QUICK LOAD When starting the UCS81003 interface, the file paths are reset to a default path. If desired, the user may save the files in an alternate location. This quick load feature saves the paths of the Setup.txt and all seven profile locations to quickly return or change files with one click.
-
Page 41: Troubleshooting
• Check if the current limit jumper is set appropriately. Device Is Not Charging or Not • The current source may not have high enough capacity from V Charging Optimally • Run the Demo routine to determine highest current profile. 2014 Microchip Technology Inc. DS50002300A-page 41... - Page 42 UCS81003 Evaluation Board User’s Guide NOTES: 2014 Microchip Technology Inc. DS50002300A-page 42...
-
Page 43: Appendix A. Schematic And Layouts
UCS81003 EVALUATION BOARD USER’S GUIDE Appendix A. Schematic and Layouts INTRODUCTION This appendix contains the following schematics and layouts for the UCS81003 Evaluation Board: • Board – Schematic • Board – Top Silk • Board – Top Copper and Silk •... -
Page 44: Board - Schematic
SSTX+ ALERT# A_DET# SHIELD SMDATA/LATCH SMDATA Shield GREEN SMCLK/S0 SMCLK COMM_SEL/ILIM COMM_I_LIM 0603 SHIELD 0603 SHIELD UCS81003 0603 0603 0402 0402 SHIELD 0402 0402 VDD_5V VDD_5V 0603 SHIELD TP LOOP White TP LOOP Yellow TP LOOP Yellow TP LOOP White... -
Page 45: Board - Top Silk
Schematic and Layouts BOARD – TOP SILK BOARD – TOP COPPER AND SILK 2014 Microchip Technology Inc. DS50002300A-page 45... -
Page 46: Board - Top Copper
UCS81003 Evaluation Board User’s Guide BOARD – TOP COPPER BOARD – INNER PLANS GND 1 2014 Microchip Technology Inc. DS50002300A-page 46... -
Page 47: Board - Inner Plans Gnd 2
Schematic and Layouts BOARD – INNER PLANS GND 2 BOARD – BOTTOM COPPER 2014 Microchip Technology Inc. DS50002300A-page 47... -
Page 48: Board - Bottom Copper And Silk
UCS81003 Evaluation Board User’s Guide BOARD – BOTTOM COPPER AND SILK A.10 BOARD – BOTTOM SILK 2014 Microchip Technology Inc. DS50002300A-page 48... -
Page 49: Appendix B. Bill Of Materials
J11, J12, J13, J14, Conn. TP loop tin SMD 68602-116HLF The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM Note 1: used in manufacturing uses all RoHS-compliant components. 2014 Microchip Technology Inc. DS50002300A-page 49... - Page 50 UCS81003 Evaluation Board User’s Guide TABLE B-1: BILL OF MATERIALS (BOM) (CONTINUED) Qty. Reference Description Manufacturer Part Number J16, J17, J18, J19 Conn. header-2.54 male 2x8 gold 68602-116HLF 5.84MH th. vert. Inductor choke Common Mode 90 ohm Murata Electronics DLW21HN900SQ2L...
-
Page 51: Bill Of Materials
Bill of Materials NOTES: 2014 Microchip Technology Inc. DS50002300A-page 51... -
Page 52: Worldwide Sales And Service
Tel: 86-29-8833-7252 Tel: 631-435-6000 Fax: 86-29-8833-7256 San Jose, CA China - Xiamen Tel: 408-735-9110 Tel: 86-592-2388138 Canada - Toronto Fax: 86-592-2388130 Tel: 905-673-0699 Fax: 905-673-6509 China - Zhuhai Tel: 86-756-3210040 03/25/14 Fax: 86-756-3210049 2014 Microchip Technology Inc. DS50002300A-page 52...
