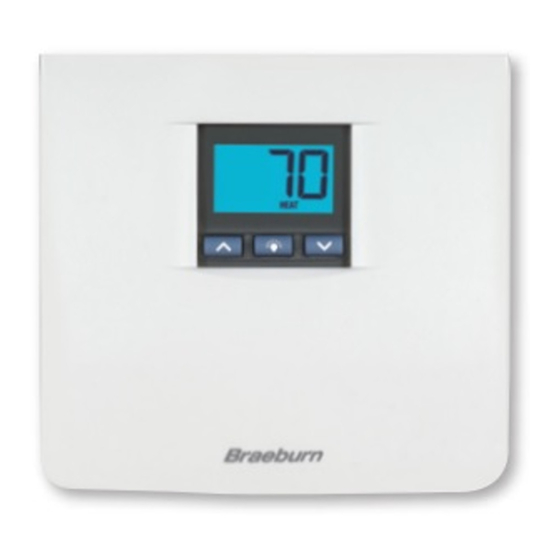

Braeburn 3000 Owner's Manual

Premier series
Hide thumbs Also See for 3000:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , User Manual
3000
OWNERS MANUAL
Compatible with low voltage single stage gas,
oil or electric heating or cooling systems,
including single stage heat pumps. This
thermostat can also be used on 250mv to
750mv millivolt heating only systems. Do not
use this thermostat on applications with
voltages above 30 Volts AC.
READ ALL INSTRUCTIONS BEFORE PROCEEDING
YEAR
LIMITED
WARRANTY
Store this
booklet for
future reference
© 2004 Braeburn Systems LLC All Rights Reserved.
Premier Series
Non-Programmable
Single Stage Heat/Cool
Digital Thermostat
Pub. No. 3000-100-002
CONTENTS
FEATURES
1
2
SPECIFICATIONS
3
INSTALLATION
Replacing Existing Thermostat
3.1
Installing Your New Thermostat
3.2
TESTING YOUR NEW THERMOSTAT
4
PROGRAMMING USER SETTINGS
5
5.1
Default Thermostat Settings
5.2
Setting Temperature Differential
ADDITIONAL OPERATION FEATURES
6
Review Set Temperature
6.1
Changing Set Temperature
6.2
High Temperature Safety Switch
6.3
Low Temperature "Freeze" Protection
6.4
Compressor Protection Feature
6.5
Changing Fahrenheit (˚F) to Celsius (˚C)
6.6
Low Battery Detection and Replacement
6.7
Replacing the Batteries
6.7.1
Resetting Thermostat
6.8
TROUBLESHOOTING
7
WIRING DIAGRAMS
8
WARNING!
Important Safety Information
• Always turn off power to the air conditioning or heating system prior to installing,
removing, cleaning or servicing thermostat.
• Read this manual thoroughly prior to installing, programming or operating this
thermostat.
• This thermostat is designed for use with a 24 Volt-AC low voltage single stage gas,
oil or electric heating or cooling systems, including single stage heat pumps. This
thermostat can also be used on 250mv to 750mv millivolt heating only systems.
• Do not use this thermostat on applications with voltages above 30 Volts AC.
• This thermostat requires two (2) properly installed "AA" alkaline batteries to
provide power for the thermostat to properly control the system operation.
• The system must have 24 Volt AC power present for proper system operation and control.
• Wiring must conform to all building codes and ordinances as required by local and
national code authorities having jurisdiction.
• Do not short (or jumper) across terminals on the gas valve or at the heating or
cooling system control board to test the thermostat installation. This could
damage the thermostat and void the warranty.
• Do not select COOL mode of operation if the outside temperature is below 50˚ F
(10˚ C). This could possibly damage the controlled cooling system and may cause
personal injury.
• This thermostat should only be used as described in this manual. Any other use is
not recommended and will void the warranty.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Braeburn 3000

Summary of Contents for Braeburn 3000

  • Page 1 (10˚ C). This could possibly damage the controlled cooling system and may cause personal injury. • This thermostat should only be used as described in this manual. Any other use is not recommended and will void the warranty. © 2004 Braeburn Systems LLC All Rights Reserved. Pub. No. 3000-100-002...

  • Page 2: Installation

    FEATURES INSTALLATION cont. • Contemporary Styling with Large LCD Display Replacing Existing Thermostat cont. • Battery Powered (2 AA Alkaline batteries included) • Relay Output for Maximum Compatibility • LCD Display Backlight • Easy Access Front Battery Door • Compressor Short Cycle Protection •...

  • Page 3: Testing Your New Thermostat

    TESTING YOUR INSTALLATION cont. NEW THERMOSTAT cont. Installing Your New Thermostat cont. 1. Place the system switch in the HEAT position. 2. Press the button on the keypad until the setpoint temperature setting is a minimum of 3 10. Fasten the rear body (mounting plate) to wall using supplied screws. degrees higher than the current room temperature.

  • Page 4: Setting Temperature Differential

    ADDITIONAL PROGRAMMING OPERATION FEATURES cont. USER SETTINGS cont. Changing Set Temperature Setting Temperature Differential cont. 1. Press and hold button at the same NOTE: Once you have finished setting the temperature differential you can time for 3 seconds. The entire display will wait 10 seconds and the thermostat will automatically return to the normal flash once and the SET TEMP indicator will be operating mode.

  • Page 5: Troubleshooting

    ADDITIONAL TROUBLESHOOTING OPERATION FEATURES cont. cont. Changing Fahrenheit (°F) to Celsius (°C) SYMPTOM POTENTIAL SOLUTION 1. Release the front thermostat body from the rear thermostat body by pressing the release Thermostat does not Check to see if OFF is shown in display. This indicates that the latch on the bottom of the thermostat.

  • Page 6: Wiring Diagrams

    TROUBLESHOOTING WIRING DIAGRAMS cont. Typical 2-Wire 24 Volt AC or 250mV - 750mV Millivolt Heating Systems SYMPTOM POTENTIAL SOLUTION HI is shown in the The temperature sensed by the thermostat is higher than the Remove 90˚ F (32˚ C) upper limit of the thermostats display range. The thermostat display Factory Installed display will return to normal after the sensed temperature...

  • Page 7: Braeburn Systems Llc All Rights Reserved

    Volt AC Volt AC Braeburn Systems LLC agrees to repair or replace at its option any Braeburn thermostat under warranty provided it is returned postage prepaid to our warranty facility in a padded carton within the warranty period, with proof of the original date of purchase and a brief description of the malfunction.
