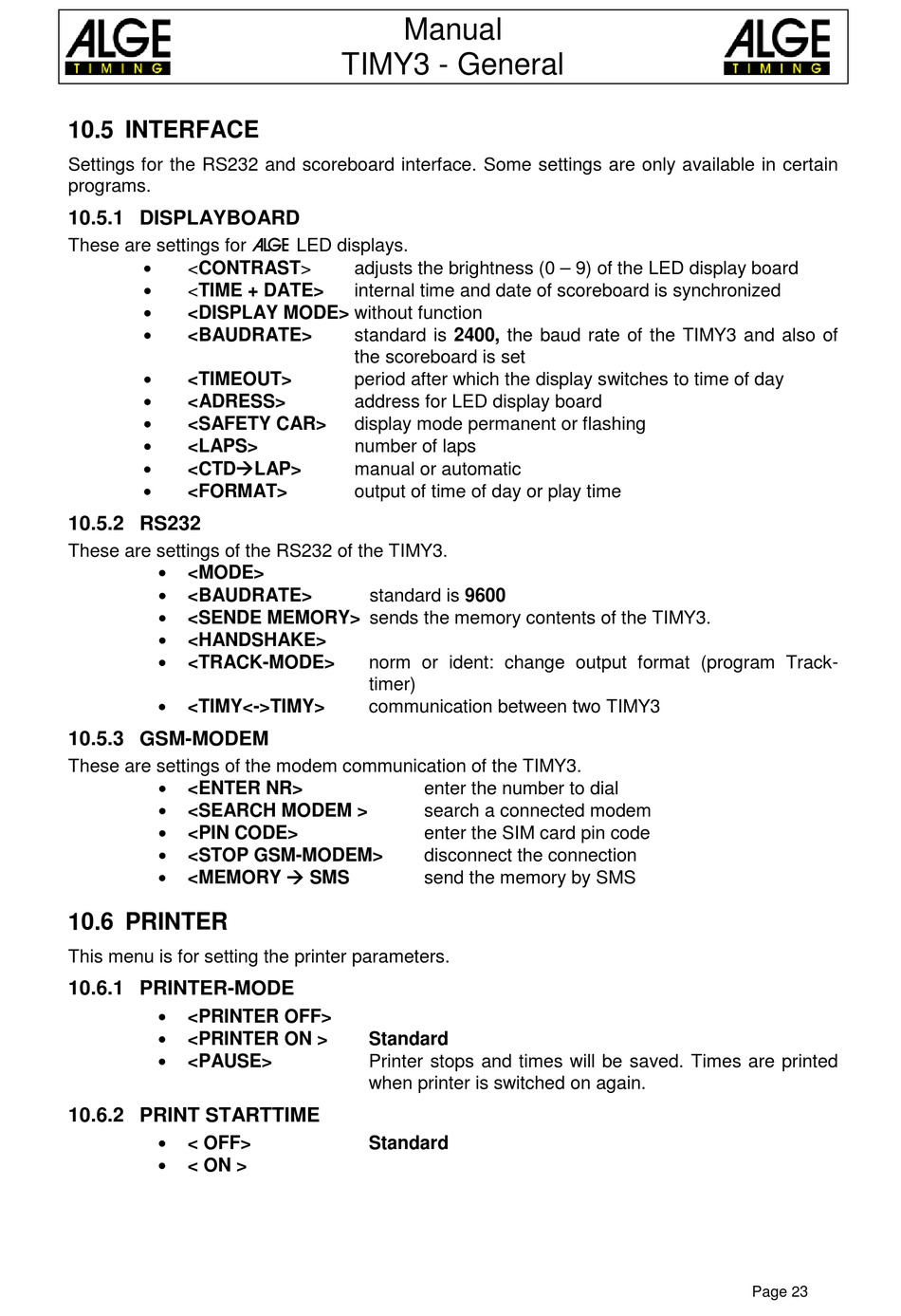

10.5 INTERFACE

Settings for the RS232 and scoreboard interface. Some settings are only available in certain
programs.

10.5.1 DISPLAYBOARD

These are settings for ALGE LED displays.
•
<CONTRAST>
•
<TIME + DATE>
•
<DISPLAY MODE> without function
•
<BAUDRATE>
•
<TIMEOUT>
•
<ADRESS>
•
<SAFETY CAR>
•
<LAPS>
•
<CTDLAP>
•
<FORMAT>

10.5.2 RS232

These are settings of the RS232 of the TIMY3.
•
<MODE>
•
<BAUDRATE>
•
<SENDE MEMORY> sends the memory contents of the TIMY3.
•
<HANDSHAKE>
•
<TRACK-MODE>
•
<TIMY<->TIMY>

10.5.3 GSM-MODEM

These are settings of the modem communication of the TIMY3.
•
<ENTER NR>
•
<SEARCH MODEM >
•
<PIN CODE>
•
<STOP GSM-MODEM>
•
<MEMORY  SMS

10.6 PRINTER

This menu is for setting the printer parameters.

10.6.1 PRINTER-MODE

•
<PRINTER OFF>
•
<PRINTER ON >
•
<PAUSE>

10.6.2 PRINT STARTTIME

•
< OFF>
•
< ON >
Manual
TIMY3 - General
adjusts the brightness (0 – 9) of the LED display board
internal time and date of scoreboard is synchronized
standard is 2400, the baud rate of the TIMY3 and also of
the scoreboard is set
period after which the display switches to time of day
address for LED display board
display mode permanent or flashing
number of laps
manual or automatic
output of time of day or play time
standard is 9600
norm or ident: change output format (program Track-
timer)
communication between two TIMY3
enter the number to dial
search a connected modem
enter the SIM card pin code
disconnect the connection
send the memory by SMS
Standard
Printer stops and times will be saved. Times are printed
when printer is switched on again.
Standard
Page 23
