Start Up

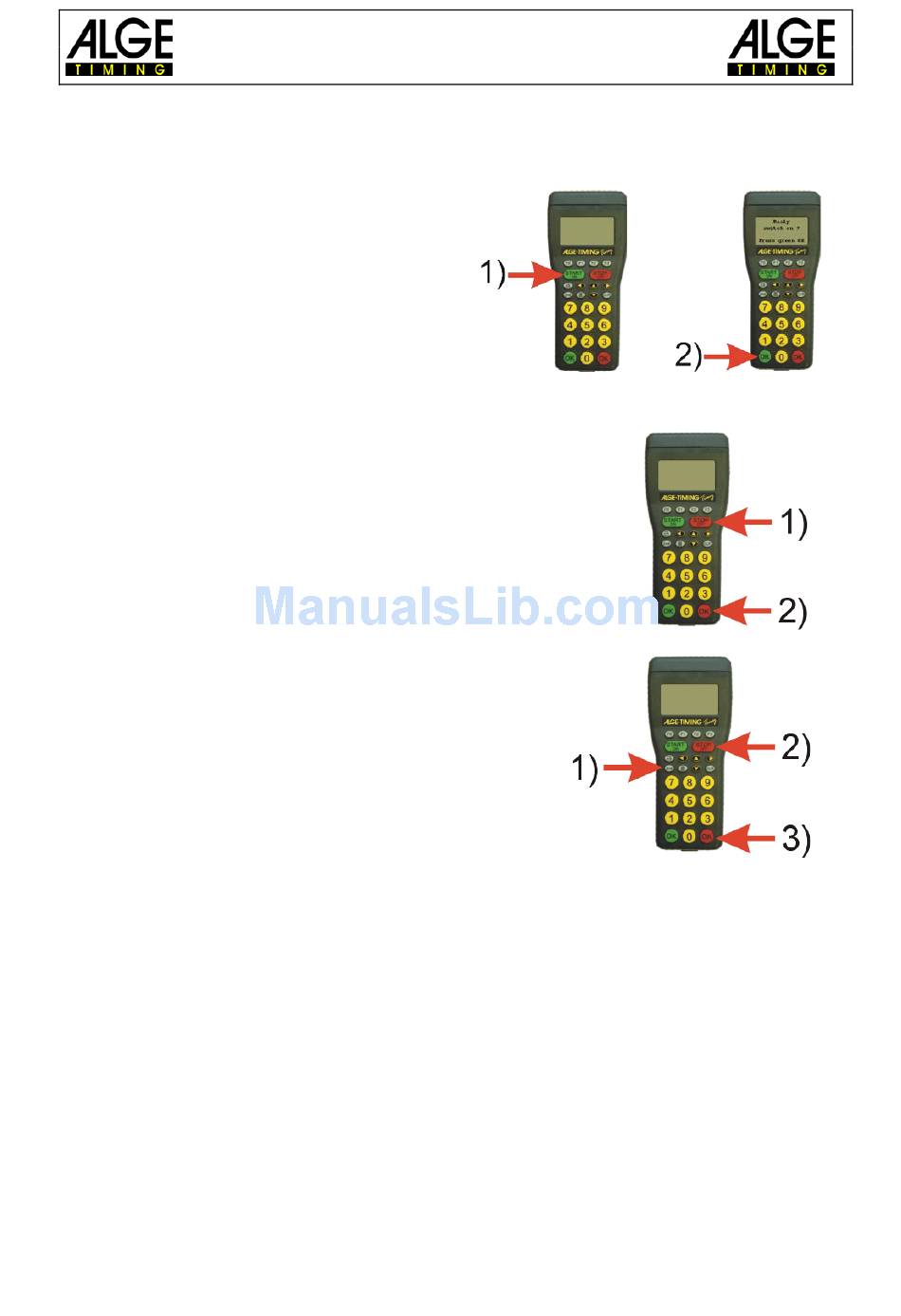

2.1 Switch On

•
Press „START/ON" key
•
Display shows:
"Really switch-on? Press the green OK
button!"
•
If you press the green OK key within 10
seconds, the TIMY3 switches on, other-
wise it automatically switches off.

2.2 Switch Off

You have got two possibilities to switch off the TIMY3:
Method 1:
•
Press „STOP/OFF" key for 3 seconds
•
Display shows:
"Really switch-off? Press the red OK button!"
•
If you press the red OK key within 10 seconds, the TIMY3
switches off, otherwise it returns to the program.
Method 2:
•
Press „2nd" and „STOP/OFF" keys
•
Display shows:
"Really switch-off? Press the red OK button!"
•
If you press the red OK key within 10 seconds, the
TIMY3 switches off, otherwise it returns to the pro-
gram.

2.3 Power Supply

The TIMY3 has several possibilities for power supply:
External supply +8 to 24 VDC:
•
Power supply unit PS12
•
Power supply unit PS12A , ideal as the Deltron socket remains free
•
External battery e. g. 12V plumb rechargeable battery
•
ALGE Display Board (e. g. GAZ4 or D-LINE)
NLG4 and NLG8 must NOT be used as the off-load voltage is too high (TIMY3 might be de-
stroyed!).
With external supply of at least 11.0 VDC, the internal rechargeable batteries are charged.
