MAXDATA Performance 120T User Manual page 49

Metal
HDD Tray

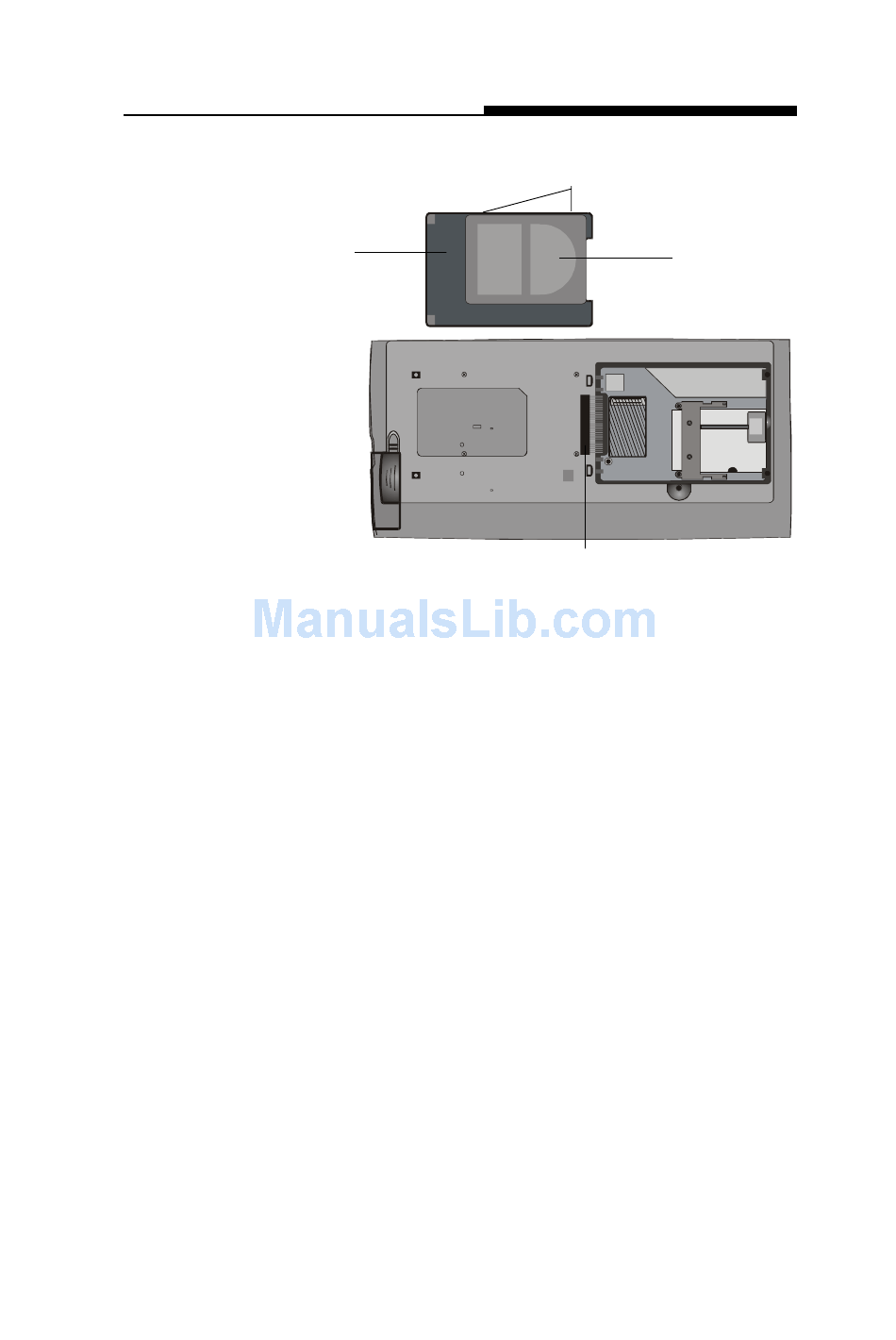

Illustration 4-2
14. Reinstall the connector-A on the new drive unit. Be sure
the module makes a firm connection to the base con-
nector.
15. Carefully put the metal HDD tray back to the drive bay.
16. Replace the fixing screws, D and E.
17. Replace the HDD Bay cover.
18. Turn the notebook right-side up, and power it on.
You have now completed the hard drive upgrade.
Once a new hard drive is installed, you need to reformat the disk
and re-install the operating system and applications. If you would
like to have the Save To Disk suspend function, it is recom-
mended that you re-create the Save To Disk partition BEFORE
reformatting the HDD because executing the HDPREPEZ utility
program will destroy the data on the hard drive and requires you
to re-install all software. Go to Creating Save To Disk Partition,
the end of Section 3, to figure out how this is done.
Section 4 UPGRADING YOUR NOTEBOOK
Fixing Screws F, G
HDD Module
Connecter-A
HDD
Module
4-5
