Expanding The DIMM Module In The Original Socket

To expand the DIMM, do the following:
Warning:
To avoid
damaging the
DIMM, do not
touch its metal
contact edge to
avid the electro-
static damage
from static
electricity.
Fn Ctrl
Alt
Ctrl
Latch A
Section 4 UPGRADING YOUR NOTEBOOK
1. Power OFF the notebook. Unplug the AC cord and all
cables/devices attached to the notebook.
2. Place your hand on a large metal object momentarily to
discharge any static electricity.
3. Place the notebook on a flat surface and fully open the
LCD lid.

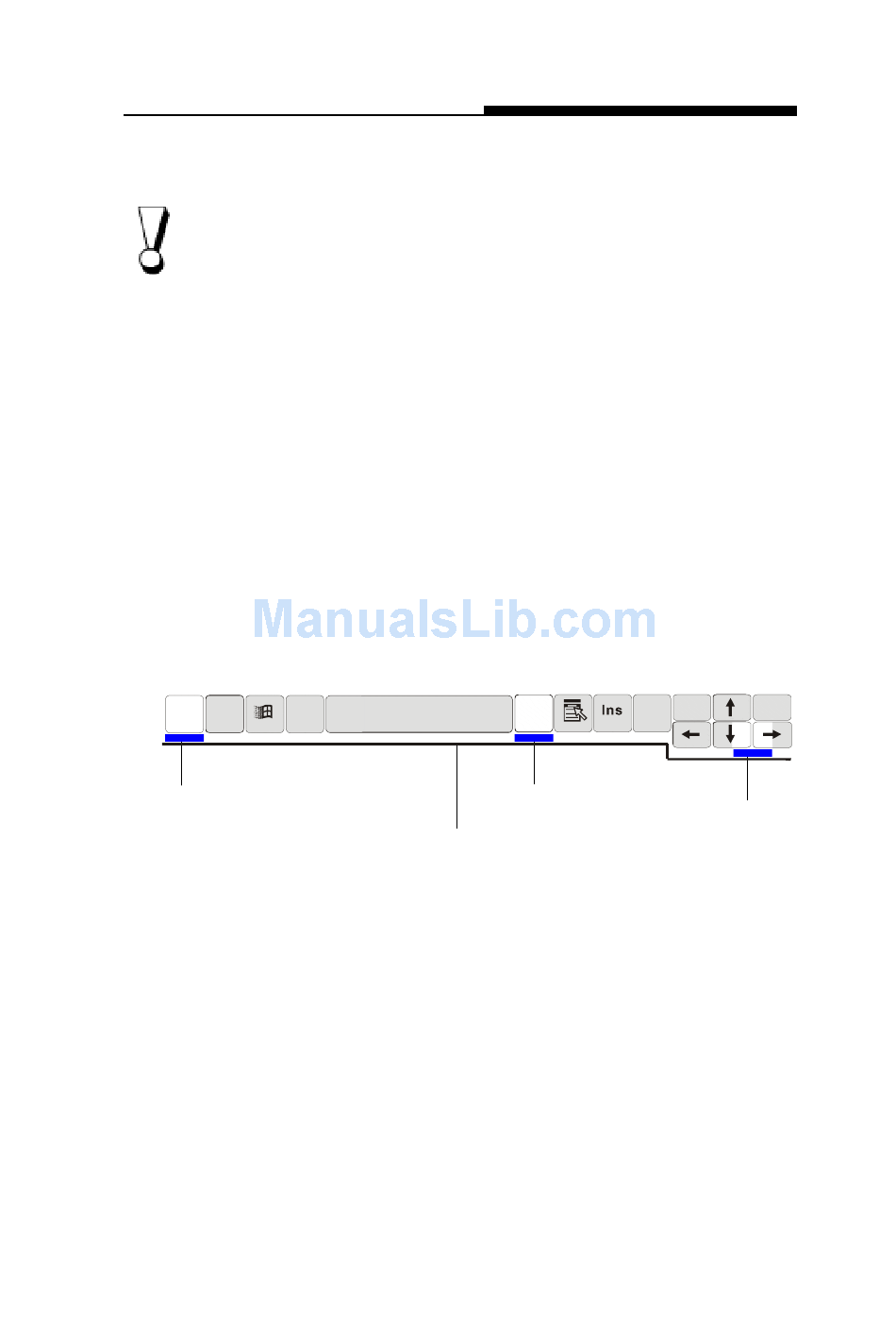

4. Find the keyboard latches A, B and C near the bottom
edge of the keyboard refering to the figure as below. The
latch is spring-loaded. It will retract when pressed and
revert back to its original position when released.
Illustration 4-3
Bottom Edge of Keyboard
5. Using a small blade to press the latch A downward. The
keyboard should pop up slightly over the latch. If the
keyboard does not pop up, try to gently lift it up just over
the latch. Repeat the step for the other keyboard latches.
6. Carefully lift up the bottom edge of the keyboard and the
following is revealed.
Del
Alt
Latch B
Latch C
4-7
