Page 1: Operating Manual
PB*4VQ247CF OPERATING MANUAL IOAA-646 (10.2014/1) -
Page 2: Basic Information
DEAR USER, The plate is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy. Before being packaged and leaving the manufacturer, the plate was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully. -
Page 3: Table Of Contents
TABLE OF CONTENTS Basic information....................2 Safety instructions....................4 Description of the appliance................8 Installation ......................9 Operation ......................12 Cleaning and maintenance ................20 Emergency procedures..................22 Technical data ....................24 Warranty ........................24... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or... -
Page 5: The Appliance
SAFETY INSTRUCTIONS Warning: If the surface is cracked, switch off the ap- pliance to avoid the possibillity of electric shock. The appliance is not intended to be operated by me- ans of an external timer or separate remote-control system. You should not use steam cleaning devices to clean the appliance. - Page 6 SAFETY INSTRUCTIONS ● Do not use plastic pots or containers made from aluminium foil as they melt in high temperatures and may damage the ceramic plate. ● Sugar, citric acid, salt etc., both in liquid and solid state, as well as plastic should not get into contact with a hot hotplate.
-
Page 7: Saving Energy
SAVING ENERGY UNPACKING The appliance is protected Everybody who properly from damage during transpor- uses energy not only saves tation by its packaging. After money but also consciously unpacking please dispose acts in aid of the natural of the packing materials in a environment. -
Page 8: Description Of The Appliance

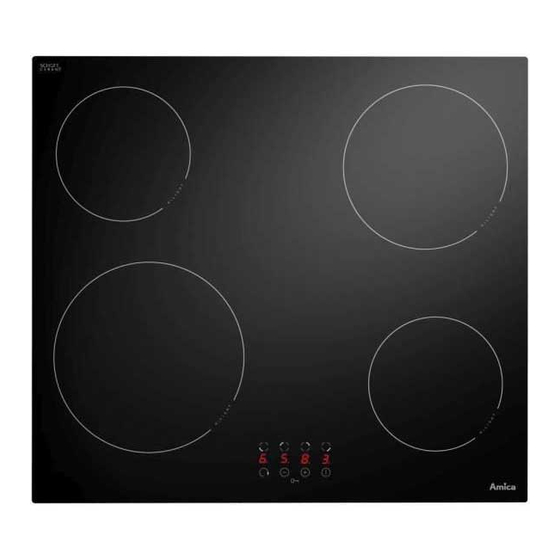

DESCRIPTION OF ThE APPLIANCE Description of PB*4VQ247CF induction hob Back left cooking zone Ø 145 Back right cooking zone Ø 180 Front left cooking zone Ø 210 Front right cooking zone Ø 145 Touch control sensor panel 1. On/off sensor 2. -
Page 9: Installation
INSTALLATION Making the worktop recess • Worktop thickness should be 28 - 40 mm, while its width at least 600 mm. The worktop must be flat and level. Edge of the worktop near the wall must be sealed to prevent ingress of water or other liquids. - Page 10 INSTALLATION Note. When installing the hob in the kit- chen worktop, install a partition panel, as shown on the picture. If the hob is to be installed above a built-in oven, instal- lation of the partition panel is not requ- ired.
- Page 11 INSTALLATION Installation of PB*4VQ247CF plate • Use four “A” brackets for 38 mm thick worktops. Fit the hob into worktop opening as shown on figure 2 and 3. To properly secure hob in 28 mm thick worktop, use four 15x15x50 mm wooden blocks in addition to “A”...
-
Page 12: Connecting The Plate To The Electrical System
INSTALLATION Connecting the plate to the electrical system Note! The plate can be connected to the mains only by a qualified certified installer. Wilful adaptations or modifications to the electric system are prohibited. Guidelines for the installer The plate is factory-set for three-phase alternating current power supply (400 V 2N~50 Hz). It may be adapted for one-phase current power supply (230 V) by adequate bridging on the connection strip, in accordance with the attached wiring diagram. -
Page 13: Operation
INSTALLATION DIAGRAM OF POSSIBLE CONNECTIONS Important! heating elements voltage 230V Warning! In every type of connec- tion protective grounding has to be Recom- connected to terminal mended type of connector cable 1 For 230 V power supply single H05VV-F phase connection with a neutral lead, 1-2 terminals are shorted H05RR-F together , neutral lead connected... - Page 14 OPERATION The ceramic plate is equipped with sensors operated by touching the marked areas with a finger. Every touch of a sensor is confirmed with a sound. When switching the plate on and off and setting the heating power always touch only one sensor.
-
Page 15: Switching On The Cooking Zones
OPERATION Touch control sensor panel When the cooking surface is connected to the electricity mains, the „-” symbol should light up briefly on the indicator (3), after which the induction hob can be switched on. No objects should be placed on the sensor surfaces (this could cause an error). Touch sensor surfaces should be always kept clean. - Page 16 OPERATION Selecting a cooking zone Touching the cooking zone selection sensor field (2) activates the individual cooking zo- nes. A cooking zone is active when a number is flashing on indicator (3). We can then change the power level settings for a chosen cooking zone using the (+) sensor field (5) or the (-)(4) or switch off the cooking zone by touching simultaneously (+)(5) and (-)(4).
- Page 17 OPERATION Automatic warm-up function Each cooking zone is equipped with an auto- matic warm-up function. When this is activa- ted, then the given cooking zone is switched on at full power for a time dpending on the heat setting selected, and is then switched back to the heat setting set.
- Page 18 OPERATION Residual temperature indicator When a hot plate has been switched off, letter “H” is displayed indicating that the hotplate is still hot. Do not touch the hotplate and do not put heat-sensitive objects on it when the “h” letter is displayed as you can burn yourself or melt the object! When the indication goes out you can touch...
-
Page 19: The Child Lock Function
OPERATION The child lock function The child lock function protects the induction hob from being accidentally switched on by children, pets, etc. Start switching the locking function on/off when the induction hob is off. When the mains power is off, the child lock function is automatically deacti- vated. -
Page 20: Cleaning And Routine Maintenance
CLEANING AND ROUTINE MAINTENANCE Daily cleaning and proper maintenance have crucial impact on the durability of your ceramic plate. Clean the ceramic plate observing the same rules as for glass. Never use abrasive or aggressive clean- ing agents, scrubbing powders or scratching sponges. - Page 21 CLEANING AND ROUTINE MAINTENANCE Never apply cleaning agent on a hot hotplate. Caution! Leave the cleaning agent to dry and then If from any reason you are not able wipe it off with a wet cloth. Any residuals of to control the switched on plate, cleaning agents should be wiped off with a switch off the main switch or screw damp cloth before heating the plate for the...
-
Page 22: Emergency Procedures
EMERGENCY PROCEDURES Every time when emergency situation occurs you should: • switch off the working assemblies of the plate • disconnect power supply • call in the service • as some minor faults can be removed by the user in accordance with the below specified instructions, before calling the Customer Service please go through the Table checking every point. - Page 23 EMERGENCY PROCEDURES PROBLEM CAUSE ACTION 7.Residual temperature in di- - power supply fa ilu re, the -the residual temperature in- ca tor is not lighted although ap plian ce has been di scon- di ca tor will work again after the hot pla tes are still hot nec ted from the mains swit ching the control panel...
-
Page 24: Technical Data
TEChNICAL DATA Rated voltage: 400V 2N~50 Hz Rated power: PB*4VQ247CF - hotplate: 2 x Ø 145 mm 1200 W - hotplate: 1 x Ø 180 mm 1800 W - hotplate: 1 x Ø 210 mm 2300 W Dimensions: 576 x 518 x 50;...
