- Page 1 PBP2VQ203FTN / VH 3021 INSTRUCTION MANUAL CERAMIC HOB IO-HOB-0542 / 8070713 (04.2023 / v5)
-
Page 2: Basic Information
DEAR USER, The plate is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy. Before being packaged and leaving the manufacturer, the plate was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully. -
Page 3: Table Of Contents
TABLE OF CONTENTS Basic information....................2 Safety instructions....................3 Description of the appliance................9 Installation......................10 Operation......................14 Cleaning and maintenance................20 Emergency procedures..................22 Technical specification.................23... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or... - Page 5 SAFETY INSTRUCTIONS Warning: If the surface is cracked, switch off the ap- pliance to avoid the possibillity of electric shock. The appliance is not intended to be operated by me- ans of an external timer or separate remote-control system. You should not use steam cleaning devices to clean the appliance.
- Page 6 SAFETY INSTRUCTIONS ● Sugar, citric acid, salt etc., both in liquid and solid state, as well as plastic should not get into contact with a hot hotplate. ● If through carelessness, sugar or plastic gets on a hot hotplate, you may not switch off the plate but scrape away sugar or plastic using a sharp scrapper.
- Page 7 SAVING ENERGY Everybody who properly uses energy not only saves money but also consciously acts in aid of the natural environment. So let’s save electric energy by: ● Using proper cookware Pots and pans with flat and thick bottom help to save up to one-third of electric energy.
- Page 8 UNPACKING DISPOSING OF THE DEVICE When disposing of the device, do The appliance is protected from damage during transpor- not bring it to regu lar municipal tation by its packaging. After waste con tainers. Instead, bring unpacking please dispose it to elec trical and electronic of the packing materials in a waste recycling and reuse cen- manner creating no risk to the...
-
Page 9: Description Of The Appliance

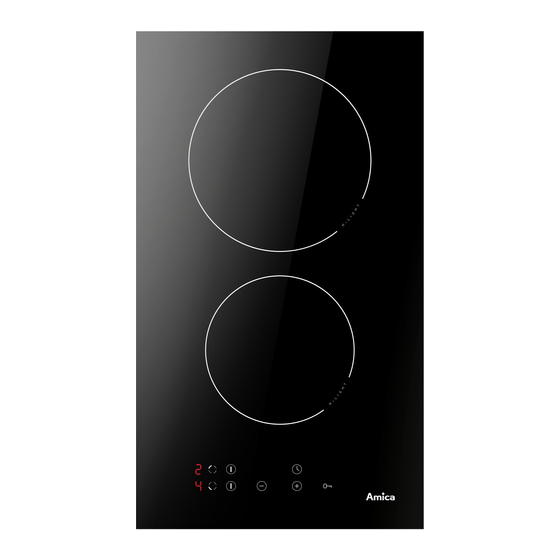

DESCRIPTION OF THE APPLIANCE Description of hob Back hotplate Ø 180 Front hotplate Ø 145 Control panel 5. Key sensor with the lock function 1. Main sensor 6. Clock indicator 2. Hotplate indicators 7. Sensor of the clock 3. Minus sensor 4. -
Page 10: Installation
INSTALLATION Making the worktop recess ● Worktop thickness should be 28 - 40 mm, while its width at least 600 mm. The worktop must be flat and level. Edge of the worktop near the wall must be sealed to prevent ingress of water or other liquids. - Page 11 INSTALLATION Note. When installing the hob in the kit- chen worktop, install a partition panel, as shown on the picture. If the hob is to be installed above a built-in oven, installa- tion of the partition panel is not required. If the hob was installed in the kitchen Installing hob in kitchen cabinet worktop.
- Page 12 INSTALLATION Installing hob ● Using an electrical cord, connect the hob according to electrical diagram provided. ● Remove dust from the worktop, insert hob into the opening and press in firmly (Figure 3). Fig. 3 1 - Worktop 2 - Hob flange gasket 3 - Ceramic hob Assembly of the gasket Depending on the model, the seal is already installed at the factory (fig.1)
- Page 13 INSTALLATION Location and dimensions of terminal block compartment. ● The hob has a fixed-mounted cable with a neutral contact and may only be connected to a 230 V ~ 50 Hz socket with grounding pin. Socket power circuit should be protected with a 16 A fuse.
-
Page 14: Operation
OPERATION Before first use ● carefully clean the ceramic plate treating it as a glass surface, ● when used for the first time the plate can give off a bit of a smell so switch on the ventilation system or open the window, ●... - Page 15 OPERATION Control Panel When you connect the hob to mains, you will hear a short beep and sensors will be locked. Touch and hold for 3 second to release the lock. Important! Do not place any objects on the sensors as this could cause an error. Always keep touch sensors clean.
- Page 16 OPERATION The cooking heat setting can be now changed at any moment using the method described above in the "Set the heat setting" section. Turn off the appliance The appliance operates when at least one cooking zone is on. Touch and hold turn off the selected cooking zone and then the appliance.
- Page 17 OPERATION If you do not start to select the Cooking heat Fast cooking time setting heat setting within 10 seconds, (min) then the letter "A" turns off and 1’11” the automatic warm-up function 2’44” is inactive. 4’47” 5’28” If you do not wish the automatic 6’29”...
- Page 18 OPERATION The residual heat indicator Once a hot cooking zone is switched off, "H" is displayed on the relevant cooking zone display to warn that the "cooking zone is still hot!" Do not touch the cooking zone at this time owing to the risk of burns from residual heat, and do not place on it any objects sensi- tive to heat!
- Page 19 OPERATION Timer If the appliance is equipped with a timer, it can be used to set the operating time of any cooking zone. To use timer with a cooking zone, it must operate with a heat setting of at least 1. If this condition is met: - touch the timer sensor, - touch...
-
Page 20: Cleaning And Maintenance
CLEANING AND ROUTINE MAINTENANCE Daily cleaning and proper maintenance have crucial impact on the durability of your ce ra- mic plate. Clean the ceramic plate observing the same rules as for glass. Never use abrasive or aggressive clean- ing agents, scrubbing powders or scratching sponges. - Page 21 CLEANING AND ROUTINE MAINTENANCE Never apply cleaning agent on a hot hotplate. Attention! Leave the cleaning agent to dry and then wipe If from any reason you are not able to it off with a damp cloth. Any residuals of clean- control the switched on plate, switch ing agents should be wiped off with a damp off the main switch or screw out the...
-
Page 22: Emergency Procedures
EMERGENCY PROCEDURE Every time when emergency situation occurs you should: • switch off the working assemblies of the plate • disconnect power supply • call in the service • as some minor faults can be removed by the user in accordance with the be low specified instructions, before calling the Customer Service please go thro ugh the Table checking every point. -
Page 23: Technical Specification
TECHNICAL DATA Rated voltage: 230V 1N~50 Hz Rated power: 3,0 kW Model: PBP2VQ203FTN - hotplate: 1 x Ø 145 mm 1200 W - hotplate: 1 x Ø 180 mm 1800 W Dimensions: 522 x 300 x 48; Weight: ca. 4,2 kg; Complies with EU regulations EN 50304, EN 60335-1, EN 60335-2-6 standards...
