Summary of Contents for Phonic AM440

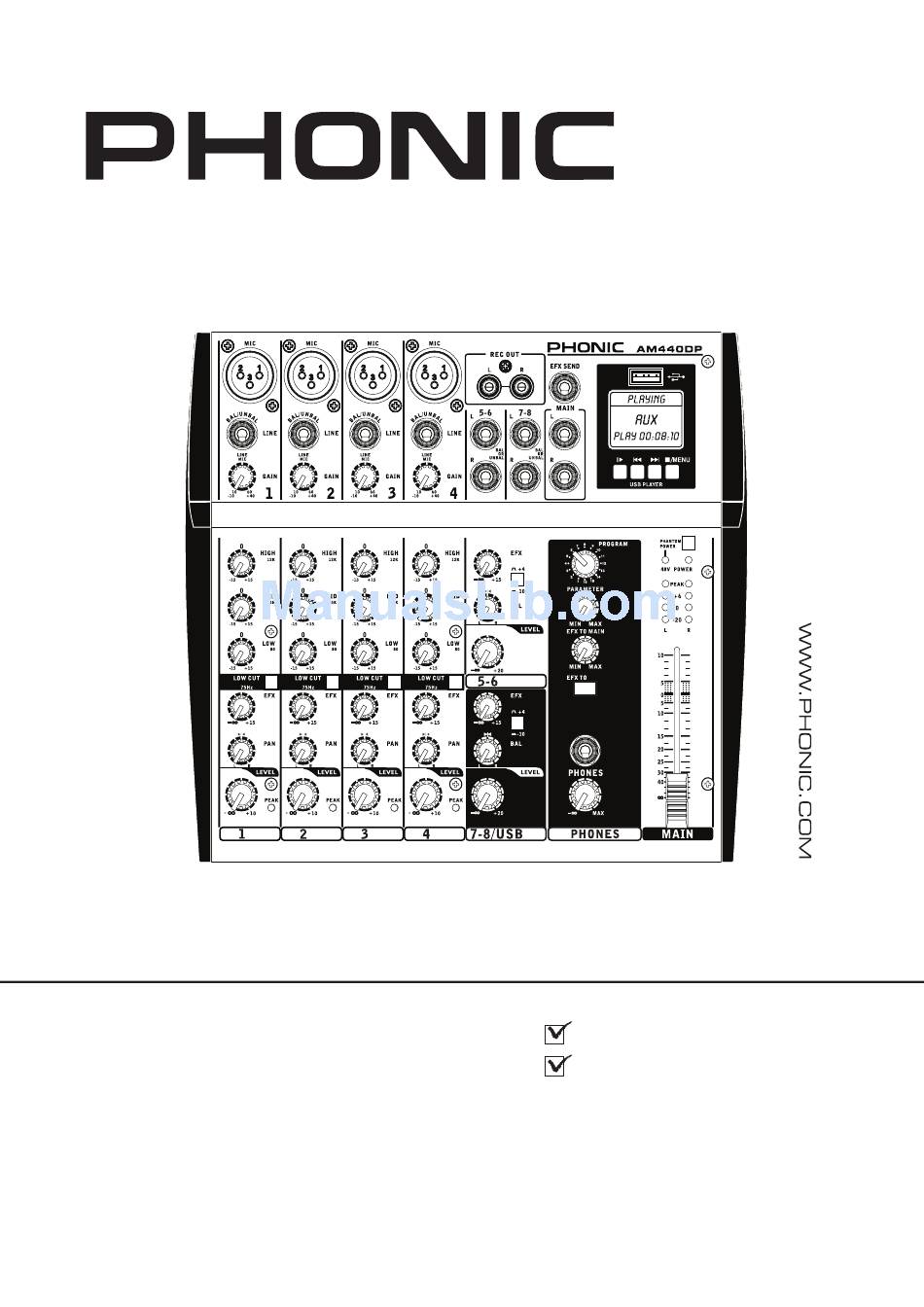

  • Page 1 AM440DP AM440 User's Manual Manual del Usuario AM440D AM440DP AM440W...
  • Page 2 AM440 AM440D AM440DP AM440W COMPACT MIXERS ENGLISH ........I ESPAÑOL ........II APPENDIX ........III...
  • Page 3: Table Of Contents

    INTRODUCTION..............1 FEATURES................1 AM440DP USB PLAYER............1 AM440W BLUETOOTH SETUP..........1 INSTANT SETUP...........1 MAKING CONNECTIONS............2 CONTROLS AND SETTINGS..........3 SPECIFICATIONS..............5 APPENDIX DIGITAL EFFECTS TABLE............1 APPLICATION..............2 DIMENSION................3 BLOCK DIAGRAMS..............4 Phonic preserves the right to improve or alter any information within this document without prior notice.
  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The apparatus shall not be exposed to dripping or splashing and that no objects with liquids, such as vases, shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
  • Page 5: Introduction

    INTRODUCTION AM440W BLUETOOTH SETUP Push the Bluetooth button to turn the Bluetooth on Thank you for choosing one of Phonic’s many quality compact Enter your laptop, cell phone or tablet’s Bluetooth setup mixers. The AM440, AM440D, AM440DP and AM440W compact options to find the “Phonic.BT”...
  • Page 6: Making Connections

    Stereo Channels external devices, such as tape and CD players, or even laptop The AM440 mixers features two stereo channels, thrown in for computers, receiving a signal from another source and feeding maximum flexibility. Each of these stereo channels features two it to the Main L-R mixing bus.
  • Page 7: Controls And Settings

    (balance). 18. Level Control This rotary control will alter the signal level that is sent from the corresponding channel to the main mixing bus. AM440 / AM440D / AM440W / AM440DP...
  • Page 8: Master Section

    (unbalanced) microphones and instruments should not be used on the Mic inputs. Phantom Power will not cause damage to most dynamic paused on screen. Phonic recommends that users format their microphones, however if unsure, the microphone’s user manual should USB flash drives using a FAT-32 file system.
  • Page 9: Dimension

    242 x 55 x 225mm 242 x 55 x 225mm 242 x 55 x 225mm Dimensions (WxHxD) (9.5” x 2.16” x 8.86”) (9.5” x 2.16” x 8.86”) (9.5” x 2.16” x 8.86”) (9.5” x 2.16” x 8.86”) AM440 / AM440D / AM440W / AM440DP...
  • Page 10: Service And Repair

    Phonic, at its option, shall repair or replace the defective unit covered by this warranty. Please retain the dated sales receipt as evidence of the date of purchase.
  • Page 11 APPL IC AC I ÓN ..............2 DIMENSIONES..............3 DIGRAMA DE BLOQUE................4 Phonic se reserva el derecho de mejorar o alterar cualquier información dentro de este documento, sin previo aviso. AM440 / AM440D / AM440W / AM440DP...
  • Page 12 AM440 / AM440D / AM440W / AM440DP...
  • Page 13: Introducción

    – lucen capacidad similar que han mostrado del AM440W es 0000. Muchos smartphones modernos los productos de Phonic anteriormente, con un poco más de ingresarán esta contraseña predeterminada. refinamiento por supuesto. La serie AM presenta rango de 4.
  • Page 14: Haciendo Conexiones

    Canales de Estéreo MD y hasta computadoras portátiles, asegurando un control La mezcladora AM440 presentan pocos canales de estéreo, total sobre la calidad de grabación. añadiendo máxima flexibilidad. Cada uno de estos canales de estéreo presenta dos jacks auricular de 6.35 mm TRS, para...
  • Page 15: Controles Y Configuraciones

    (paneo). Mientras que en canales estéreo, ajustando el control BAL incrementará las señales de audio izquierda o derecha (bal- anceo). AM440 / AM440D / AM440W / AM440DP...
  • Page 16 Phonic recomienda que el Nota. La Fuente Fantasma debería ser utilizada junto con los micrófonos balanceados. Cuando se emplea la Fuente Fantasma, los micrófonos USB sea de formato FAT-32 de simple terminación (desbalanceados) e instrumentos no deberían...
  • Page 17: Especificaciones

    242 x 55 x 228mm 242 x 55 x 228mm 242 x 55 x 228mm Dimensiones (AnxAltxP) (9.5” x 2.2” x 8.99”) (9.5” x 2.2” x 8.99”) (9.5” x 2.2” x 8.99”) (9.5” x 2.2” x 8.99”) AM440 / AM440D / AM440W / AM440DP...
  • Page 18 Phonic, a su propia opinión, reparará o cambiará la unidad defectuosa que se encuentra dentro de esta garantía.
  • Page 19: Digital Effect Table

    Proporción Feedback de 20% asta 90% Echo Retraso medio (S) 0,12 a 0,55 Chorus 0,66 a 9,6 0,8 a 8,8 Chorus + Rev Tiempo de Reverberación 0,4 a 0,8 Spring 0,16 a 1,33 AM440 / AM440D / AM440W / AM440DP...
  • Page 20 (como el procesamiento de efecto digital) asegurará que su audio se escucha exactamente como usted quiere. MONITORES ACTIVOS GUITARRA IZQUIERDO DERECHO MICRÓFONO VOCAL GRABADORA DE DAT EFECTOS DE GUITARRA REPRODUCTOR DE CD TECLADO MÁQUINA DE BATERÍA AM440 / AM440D / AM440W / AM440DP...
  • Page 21 DIMENSIONS DIMENSIONES Measurements are shown in mm/inches Todas las medidas están mostradas en mm/pulgadas AM440 / AM440D / AM440W / AM440DP...
  • Page 22: Block Diagrams

    BLOCK DIAGRAMS DIAGRAMAS DE BLOQUE BLOCK DIAGRAMS DIAGRAMAS DE BLOQUE 线路图 AM440 AM440 AM440 / AM440D AM440 / AM440D / AM440W / AM440DP...
  • Page 23 AM440D AM440 / AM440D / AM440W / AM440DP...
  • Page 24 AM440W MAIN L MAIN L MAIN R MAIN R AM440 / AM440D / AM440W / AM440DP...
  • Page 25 AM440DP US B PLA YER AM440 / AM440D / AM440W / AM440DP...
