C. By Colormix controller
By link the Colormix controler to the unit , you have to use 3 pin XLR cable and use 5
pin XLR cable between Colormix controller and Colormix foot controller.
CA-32
•
A professional, user friendly DMX 4ch.controller for colorimixing.
•
Equipped with 9 different hold-color buttons for instant access of colors.
•
Comes with 32 spectrum mix colors, color fade, and 12 different chase patterns.
•
Providing the richest changing colors for the show.
•
Speed and dimmer adjustable for both color fade and chase.
•
Sound activated function is available.
•
Full on and Blackout functions .
CA-32F
•
Colormix Foot controller is a extended controller of Colormix.
•
To be liked with Colormix. Add a switch to change the control between Colormix and
Colormix Foot Controller.
•
Mode i.) Blackout (LED on)
ii.) Hold Color(LED off)
iii.) Chase (LED blinking)-Stamp on the button over 2 seconds for chase
•
Up and Down buttons:To select the hold colors and chase patterns.
•
Full on: Stamp the button for full on.
8 A
D. By universal DMX controller
If you use a universal DMX controller to control the units, you have to set DMX address from
1 to 512 channel so that the units can receive DMX signal.
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to change the DMX512 address.
Once the address has been selected, press and keep ENTER button pressed up to when
the display stops blinking or storing automatically 8 seconds later. To go back to the
functions without any change press the MENU button again.

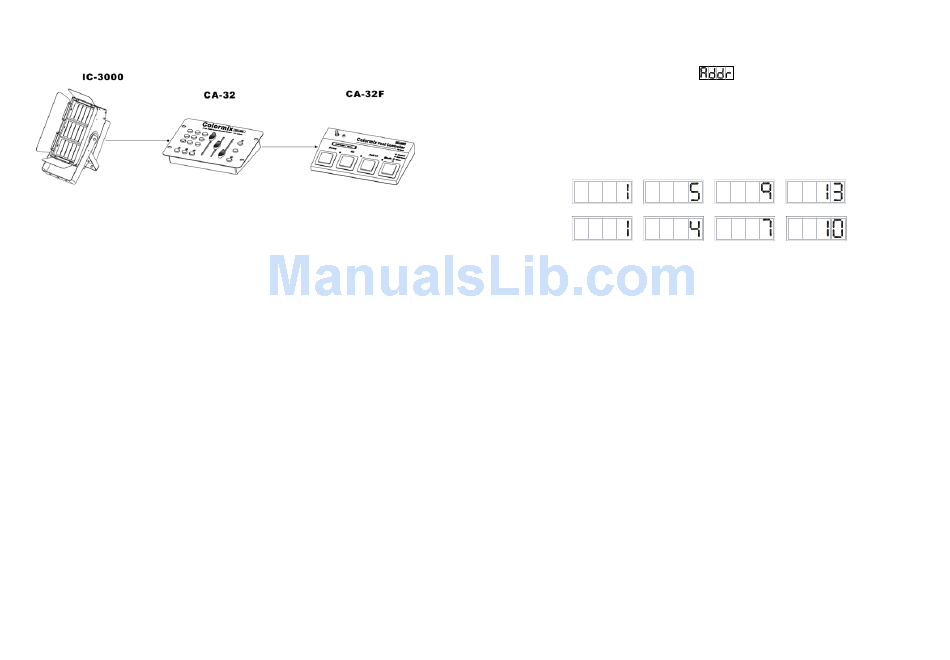

Please refer to the following diagram to address your DMX512 channel for the first 4 units.
4 Channels：
3 Channels：
is shown on the display. Pressing ENTER
