1. General Instructions
The following points are important for safety as well as for the smooth installation and
performance of the unit.
Unpack carefully and be sure that no damage has occurred during shipping.
It is very important to ground the yellow/green conductor in order to meet regulations for
safety.
Do not connect the device to any dimmer pack or power pack.
The electrical work that is necessary for installation must be done by qualified
personnel .
Be sure to locate the unit in a place with adequate ventilation at least 15 cm from the
walls and at least 100 cm from adjacent surfaces. Be sure that no ventilation slots are
blocked.
Be careful that no liquids or other objects can enter the unit. If this ever happens,
disconnect the main power immediately.
In the event of serious operating problems, turn off the unit immediately. Never try to
repair the unit yourself. Repairs carried out by non-qualified personnel can lead to
serious damage or malfunction. Please contact your dealer about authorized technical
assistance. Always use genuine spare parts.
Occasional breaks are necessary to prevent breakdowns. This unit is not designed to
be used non-stop.
Always remember to unplug the unit from the power mains before any service is done.
Please recycle the packaging.
2 A
2. Main Features
Voltage：AC 120V 60Hz or 230/240/250V 50/60 Hz
• Bulb： J Type 230V 800W(Euro)
J Type 120V 500W(USA)
• 3 dichroic mirrors red, blue, and green .
• With lamp saving switch-off function. When the unit receives stand by signal from a
easy controller or an universal DMX controller, it will switch off the lamp extending the
lamp's lifetime.
Easy access for bulb change.
Universal DMX addressing and control.
The units can be linked together in a master/slave combination and run by built-in
programs.
Compatible with easy controller or universal DMX controller.
DMX signal / sound activation LED indicators.
Fan cooled.
• Dimension : 285 x 295 x 460 mm
Weight : 8.8 kg
3. Lamp
J Type 230V 800W(Euro)
J Type 120V 500W(USA)
• Always switch off the mains supply and never handle the lamp or luminaire when
it is hot.
•
Do not touch the bulb with bare hands. If this does happen, clean the lamp with denatured
alcohol and wipe with a lint free cloth before installing.
•
Change lamp:

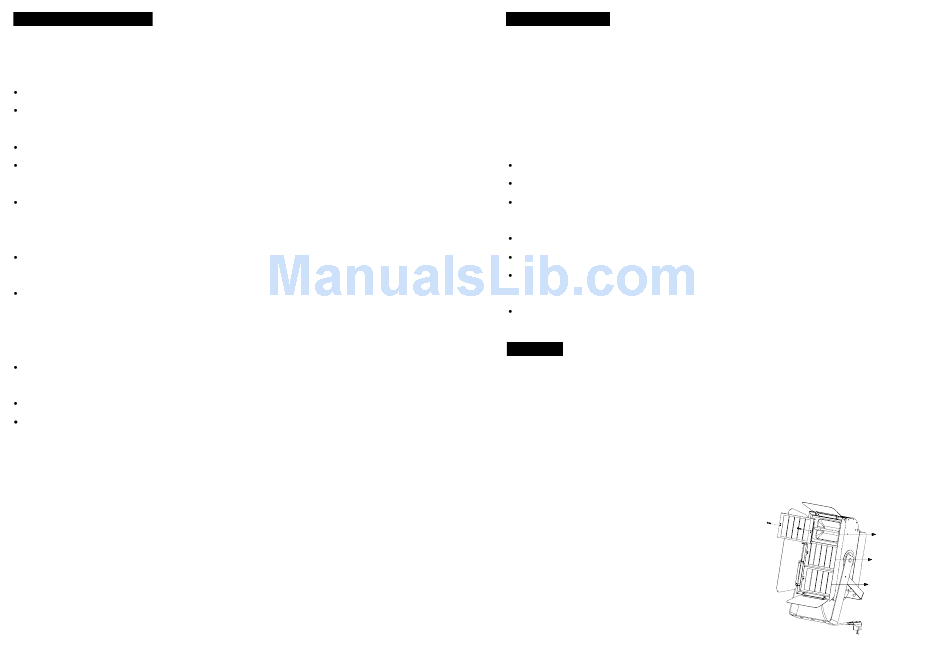

Take off the dichroic glass as showing and change
the lamp. Re-screw the glass after changing the
lamp.
G
R
B
