4. How To Set The Unit

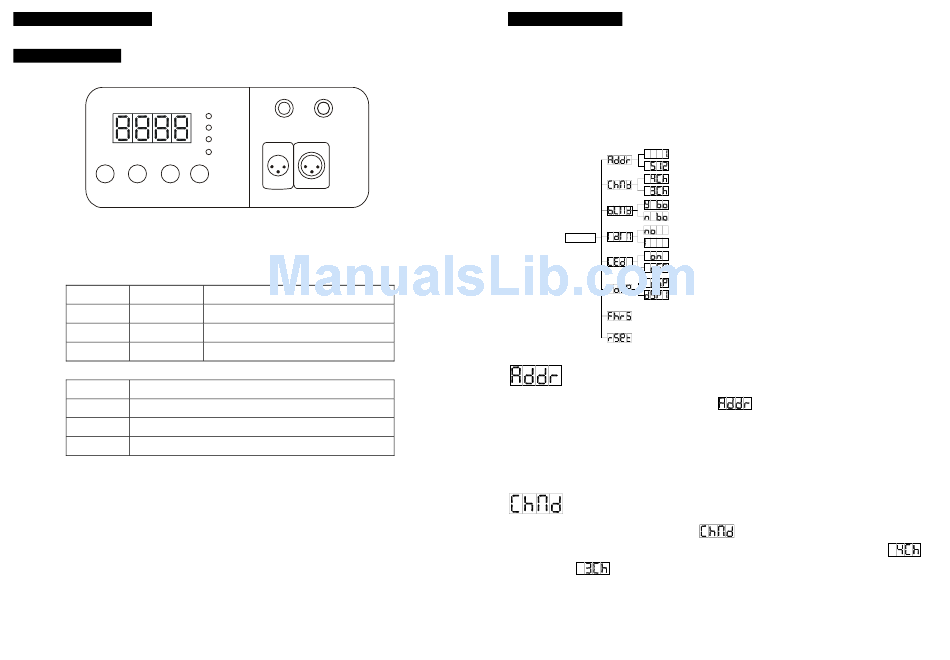

4.1 Control Panel
MENU DOWN UP ENTER
Display
To show the various menus and the selected functions .
LED
DMX On
MASTER On
SLAVE On
SOUND Flashing
Button
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Remote controller input
By connect to the 1/4" microphone jack to control the unit for stand by, function and mode
Microphone
To receive audio signal for sound activation .
DMX input/output
For DMX512 link, use 3-pin XLR plug cable to link the unit together.
DMX
MIC ONLY FOR REMOTE
MASTER
CONTROL(CA-8)
SLAVE
SOUND
DMX IN DMX OUT
DMX input present
Master Mode
Slave Mode
Sound activation
4 A
4. 2 Main Function
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
press the ENTER button to setup or it will automatically return to the main functions without
any change after idling 8 seconds. To go back to the functions without any change press the
MENU button. The main functions are showing below:
DMX512 Address Setting
Setting 4 Channel
Setting 3 Channel
Blackout Mode " Yes Blackout "
Blackout Mode " No Blackout "
Dimmer Normal
MENU
Dimmer Inversion
LED on
LED off
Display Normal
Display Inversion
Fixture Hours
Reset
DMX512 Address Setting
Press the MENU button up to when the
ENTER button and the display will blink. Use DOWN and UP button to change the DMX512
address. Once the address has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after 8 seconds. To go back to
the functions without any change press the MENU button again.
Channel Mode
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to select the
Channel ) or (3 Channel) mode. Once the mode has been selected, press the
ENTER button to setup or automatically return to the main functions without any change
after 8 seconds. To go back to the functions without any change press the MENU button
again.
is showing on the display. Pressing
is shown on the display. Pressing ENTER
5 A
(4
