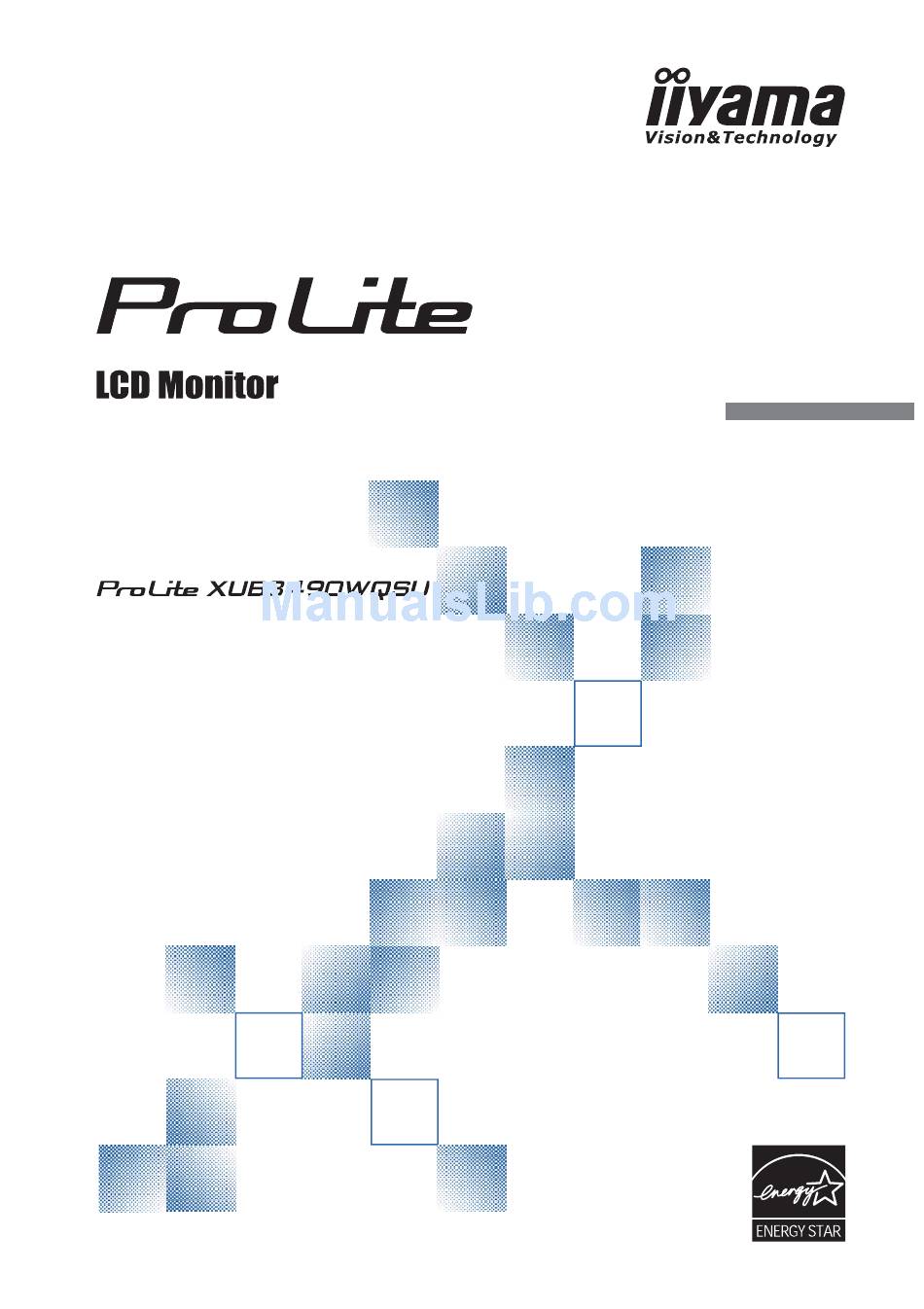

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a... - Page 3 Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.
-
Page 4: Ce Marking Declaration Of Conformity
For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing refl ections from surrounding light and bright surfaces. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com... -
Page 5: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ...........8 COMPUTER SETTING ..............9... -
Page 6: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 8: Special Notes On Lcd Monitors
If you have to return your unit for service and the original packaging has been discarded, NOTE please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Wall Mounting
WALL MOUNTING When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 11: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 12: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Indicator Blue: Normal operation NOTE Orange: Power Management Power Switch ( Menu Button (MENU) + / Volume / Mute Button ( + / - / ECO / Blue Light Reducer Button ( - / Signal Select Button (INPUT) Speakers USB-downstream(2.0) Connector (... -
Page 13: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 14: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 22: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. -
Page 15: Operating The Monitor
If you prefer to use the monitor over 3 hours continuously, please disable The Auto off function. To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 22. You are also able to adjust the picture by following the button operation shown below. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust OSD Setup H.Position V.Position OSD Timeout Language English INPUT :Exit :Move MENU :Select Picture Adjust Contrast Brightness i-Style Color Standard Over Drive Adv. Contrast :Exit :Move INPUT MENU :Select Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense... - Page 17 Color Adjust Color Adjust Gamma Gamma1 Color Temp. Warm User-Red User-Green User-Bule INPUT :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press Gamma1 Normal Gamma Dark Gamma2 Gamma3 High contrast Warm Greenish white Normal Yellowish white Cool Bluish white sRGB sRGB...
-
Page 18: Manual Image Adjust
Manual Image Adjust Manual Image Adjust Video Mode Adjust Full Black Tuner Memorize Setting Mode1 INPUT :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press Full Expansion display Video Mode Adjust Aspect Expansion display of Aspect Display the picture dot by dot. Dot by Dot From -5 to +5 Black Tuner *... - Page 19 PiP/PbP PiP/PbP PiP/PbP Sub Win 1 Input DisplayPort PiP Size Small PiP Position Top-Right Swap INPUT :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press PiP/PbP Mode is turned off. Display the sub screen in the main screen. PiP/PbP * Divide display images in Right/Left Direct...
- Page 20 OSD Setup OSD Setup H.Position V.Position OSD Timeout Language English INPUT :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press OSD is too left H.Position OSD is too right OSD is too low V.Position OSD is too high You can set the OSD display duration time OSD Timeout between 5 and 60 seconds.
- Page 21 Select the Line-In input. Standard DisplayPort To be used when displaying 3440x1440 60Hz. iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on. Displays information regarding the current input signal coming from the graphic card in your computer.
- Page 22 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. Volume: Press the + Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume Too loud ...
-
Page 23: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 24: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 25: Recycling Information
A strange noise The Audio Cable is properly connected. is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 20 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 26: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 34" LCD Panel Panel technology IPS Size Diagonal: 34" (86.7cm) Pixel pitch 0.2325mm H × 0.2325mm V Brightness 320cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left / Up / Down: 89 degrees each (Typical) Response time... -
Page 27: Dimensions
Operating: Temperature 5 to 35°C / 41 to 95°F Environmental Humidity 10 to 80% (No condensation) Considerations Storage: Temperature -20 to 60°C / -4 to 140°F Humidity 5 to 85% (No condensation) Approvals ® TCO Certifi ed, CE, TÜV-GS, CU, ENERGY STAR * USB/Audio equipment is not connected.
