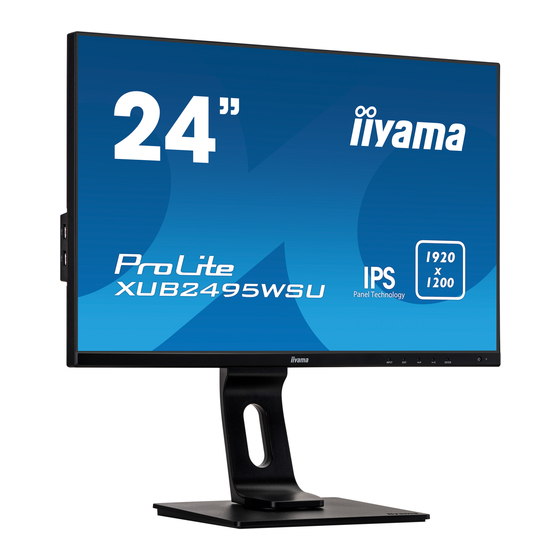

Summary of Contents for Iiyama ProLite XUB2495WSU
- Page 1 ENGLISH Thank you very much for choosing the iiyama LCD monitor. We r e c o m m e n d t h a t y o u t a k e a f e w minutes to read this comprehensive manual carefully before installing and switching on the monitor.
- Page 3 A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.
- Page 4 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2495W We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: https://iiyama.com You can access the Web page of different countries from there.
-
Page 5: Table Of Contents
FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 USING ARM OR STAND ..............5 FITTING AND REMOVAL OF STAND : ProLite XUB2495WSU ..7 FITTING AND REMOVAL OF STAND : ProLite XU2495WSU ..9 CONTROLS AND CONNECTORS : ProLite XUB2495WSU ..10 CONTROLS AND CONNECTORS : ProLite XU2495WSU ... 11 CONNECTING YOUR MONITOR : ProLite XUB2495WSU ..12... -
Page 6: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 8: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 10: Using Arm Or Stand
USING ARM OR STAND CAUTION This product is designed for desktop use, not for digital signage (electronic signboard) applications such as ceiling hanging or wall mounting. Before installation, make sure the display arm or desk arm 23° stand is strong enough to hold the necessary weight of the monitor and the mount. - Page 11 [ROTATING THE MONITOR] ● ProLite XUB2495WSU The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Available Not Available Power Indicator Landscape...
-
Page 12: Fitting And Removal Of Stand : Prolite Xub2495Wsu
FITTING AND REMOVAL OF STAND : ProLite XUB2495WSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. - Page 13 <Removal> Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. Press the release button to remove the stand. Release Button Loosen the ’thumb screw’ with the provided screwdriver to remove the Stand-Neck from the VESA Plate.
-
Page 14: Fitting And Removal Of Stand : Prolite Xu2495Wsu
FITTING AND REMOVAL OF STAND : ProLite XU2495WSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 15: Controls And Connectors : Prolite Xub2495Wsu
CONTROLS AND CONNECTORS : ProLite XUB2495WSU <Front> <Back> Power Indicator Blue: Normal operation NOTE Orange: Standby mode Speakers USB Type-C Downstream Connector ( USB3.2 Gen 1: 5Gbps, 5V, 3A ) USB Type-A Downstream Connector ( USB3.2 Gen 1: 5Gbps, 5V, 900mA) USB Upstream Connector ( Headphone connector ( ) HDMI Connector (HDMI) DisplayPort Connector (DP) Cable Hole AC Connector(... -
Page 16: Controls And Connectors : Prolite Xu2495Wsu
CONTROLS AND CONNECTORS : ProLite XU2495WSU <Front> <Back> Power Indicator Blue: Normal operation NOTE Orange: Standby mode Speakers USB Type-C Downstream Connector ( USB3.2 Gen 1: 5Gbps, 5V, 3A ) USB Type-A Downstream Connector ( USB3.2 Gen 1: 5Gbps, 5V, 900mA) USB Upstream Connector ( Headphone connector ( ) HDMI Connector (HDMI) DisplayPort Connector (DP) Cable Holder AC Connector( : Alternating current) ( Keyhole for Security Lock You can fasten a security lock and cable to prevent the monitor from being removed... -
Page 17: Connecting Your Monitor : Prolite Xub2495Wsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 18: Connecting Your Monitor : Prolite Xu2495Wsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 19: Disconnecting Your Monitor
Signal Timing Change to the desired signal timing listed on page 32: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLER : ProLite XUB2495WSU For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height... -
Page 20: Adjusting The Viewing Angle : Prolite Xu2495Wsu
ADJUSTING THE VIEWING ANGLE : ProLite XU2495WSU For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle. ... -
Page 21: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 32. You are also able to adjust the picture by following the button operation shown below. -
Page 22: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust ProLite XUB2495WSU PICTURE ADJUST BRIGHTNESS COLOR SETTINGS CONTRAST LANGUAGE RECALL ADV. CONTRAST MISCELLANEOUS INPUT SELECT OVERDRIVE AUDIO SETTINGS BLUE LIGHT REDUCER X-RES TECHNOLOGY Exit : Select : /Push Adjustment Item Problem / Option Button to Press... - Page 23 Shortcut You can take a shortcut to the specific menu by the following operations. Eco: Tilting the Joystick with no Menu displayed and select “Eco”. Blue Light Reducer: Tilting the Joystick with no Menu displayed and select “Blue Light Reducer”. 18 OPERATING THE MONITOR...
- Page 24 Color Settings * ProLite XUB2495WSU PICTURE ADJUST COLOR SETTINGS R R G B COLOR SETTINGS 6-AXIS SATURATION C M y I-STYLE COLOR STANDARD LANGUAGE COLOR TEMPERATURE RECALL 9300K 7500K 6500K USER PRESET MISCELLANEOUS INPUT SELECT GREEN AUDIO SETTINGS BLUE Exit :...
- Page 25 ProLite XUB2495WSU PICTURE ADJUST ON SCREEN DISPLAY SETTINGS COLOR SETTINGS OSD HORIZONTAL POSITION OSD VERTICAL POSITION LANGUAGE OSD ROTATE OSD TIME RECALL OSD BACKGROUND MISCELLANEOUS INPUT SELECT DDC/CI DISPLAY INFORMATION AUDIO SETTINGS 1920 X 1200, 93KHZ, 75HZ, Exit : Select :...
- Page 26 Language ProLite XUB2495WSU PICTURE ADJUST CHANGE LANGUAGE COLOR SETTINGS ENGLISH POLSKI РУССКИЙ FRANÇAIS ESPAÑOL LANGUAGE DEUTSCH NEDERLANDS RECALL ITALIANO ČESKÝ MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Exit : Select : /Push Adjustment Item Problem / Option Button to Press English English Español...
- Page 27 Miscellaneous ProLite XUB2495WSU PICTURE ADJUST MISCELLANEOUS COLOR SETTINGS SHARP AND SOFT VIDEO MODE ADJUST FULL LANGUAGE OPENING LOGO RECALL USB BC MISCELLANEOUS INPUT SELECT RGB RANGE AUTO AUDIO SETTINGS Exit : Select : /Push Adjustment Item Problem / Option 1 2 3 4 5 6 You can change the picture quality from 1 to 6 (sharp to soft).
- Page 28 Input Select ProLite XUB2495WSU PICTURE ADJUST Další INPUT SOURCE Direct AUTO MANUAL COLOR SETTINGS MANUAL HDMI SELECT LANGUAGE SELECT RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Exit : Select : /Push Adjustment Item Problem / Option Auto Searches for an available input source and selects automatically.
- Page 29 Audio Settings ProLite XUB2495WSU VOLUME PICTURE ADJUST COLOR SETTINGS MUTE AUDIO LANGUAGE RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Exit : Select : /Push Adjustment Item Problem / Option Button to Press Too soft Volume Direct Too loud Turn off the sound temporarily. Mute Audio Direct Return the sound volume to the previous level.
- Page 30 Lock Mode <OSD Menu> The OSD can be locked to avoid an accidental setting change. 1. Make sure the monitor is turned ON. 2. The OSD lock will be activated by tilting the Joystick for about 10 seconds. If you try to access the OSD by the Joystick, a message "OSD Locked"...
-
Page 31: Standby Feature
STANDBY FEATURE This product features the standby function. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. There is a standby step the monitor takes as described below. The standby function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured. -
Page 32: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 33: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don’t dispose your monitor. Please visit our web site: https://iiyama.com for monitor recycling. 28 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 34: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite XUB2495WSU-B7 Size Category 24" Panel technology IPS (In-Plane-Switching) Size Diagonal: 24.1" (61.1cm) Pixel pitch 0.27mm H × 0.27mm V Brightness 300cd/m (Typical), 175cd/m (Default / Energy Saving) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down : 89 degrees each (Typical) Response Time 4ms (Gray to Gray) *² Display Colors Approx. 16.7M HDMI : Horizontal: 60.0-95.0kHz, Vertical: 48-75Hz Sync Frequency DisplayPort : Horizontal: 60.0-95.0kHz, Vertical: 48-75Hz... -
Page 35: Specifications : Prolite Xu2495Wsu-B7
SPECIFICATIONS : ProLite XU2495WSU-B7 Size Category 24" Panel technology IPS (In-Plane-Switching) Size Diagonal: 24.1" (61.1cm) Pixel pitch 0.27mm H × 0.27mm V Brightness 300cd/m (Typical), 175cd/m (Default / Energy Saving) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down : 89 degrees each (Typical) Response Time 4ms (Gray to Gray) *² Display Colors Approx. 16.7M HDMI : Horizontal: 60.0-95.0kHz, Vertical: 48-75Hz Sync Frequency DisplayPort : Horizontal: 60.0-95.0kHz, Vertical: 48-75Hz Native Resolution... -
Page 36: Dimensions : Prolite Xub2495Wsu
DIMENSIONS : ProLite XUB2495WSU 58.5mm/2.3” 533.5mm/21.0” 57.0mm/2.2” 528.0mm/20.8” 267.0mm/10.5” ( ) : Maximum adjustment range DIMENSIONS : ProLite XU2495WSU 58.5mm/2.3” 533.5mm/21.0” 57.0mm/2.2” 528.0mm/20.8” 215.0mm/8.5” APPENDIX 31... -
Page 37: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 37.879kHz 60.317Hz 40.000MHz 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 60.023kHz 75.029Hz 78.750MHz 63.981kHz 60.020Hz 108.000MHz 1280 × 1024 79.976kHz 75.025Hz 135.000MHz 1680 × 1050 65.290kHz 60.000Hz 146.250MHz...
