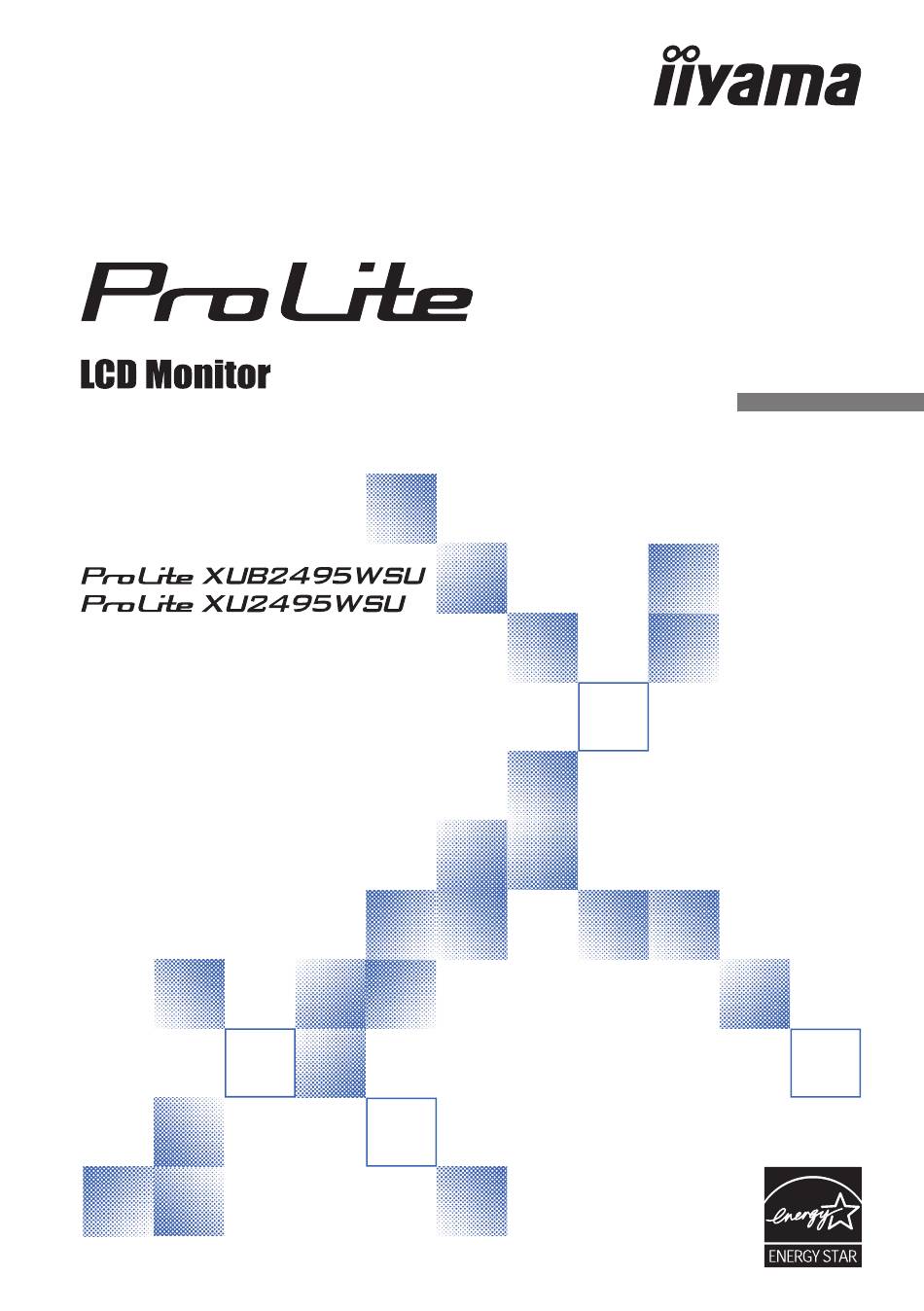

USER MANUAL
ENGLISH
Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through
this brief but comprehensive manual
before installing and switching on the
monitor. Please keep this manual in a
safe place for your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite XUB2495WSU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Iiyama ProLite XUB2495WSU

Summary of Contents for Iiyama ProLite XUB2495WSU

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a...
  • Page 3 Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.
  • Page 4 For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...

  • Page 5: Table Of Contents

    FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 INSTALLATION ................5 FITTING AND REMOVAL OF BASE : ProLite XUB2495WSU ..7 FITTING AND REMOVAL OF BASE : ProLite XU2495WSU ..8 CONTROLS AND CONNECTORS : ProLite XUB2495WSU ..9 CONTROLS AND CONNECTORS : ProLite XU2495WSU ...10 CONNECTING YOUR MONITOR : ProLite XUB2495WSU ..

  • Page 6: For Your Safety

    DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.
  • Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

  • Page 8: Special Notes On Lcd Monitors

     If you have to return your unit for service and the original packaging has been discarded, NOTE please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING  If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center.

  • Page 9: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.  Power Cable*  DisplayPort Cable...

  • Page 10: Installation

    INSTALLATION WARNING  Before installation, make sure the wall, ceiling or desktop arm is strong enough to hold the necessary weight of the display and the mount. < WALL MOUNTING > WARNING  When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L”...
  • Page 11 < ROTATING THE DISPLAY > ● ProLite XUB2495WSU The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Available Not Available Power Indicator...

  • Page 12: Fitting And Removal Of Base : Prolite Xub2495Wsu

    FITTING AND REMOVAL OF BASE : ProLite XUB2495WSU CAUTION  Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage.

  • Page 13: Fitting And Removal Of Base : Prolite Xu2495Wsu

    FITTING AND REMOVAL OF BASE : ProLite XU2495WSU CAUTION  Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage.  Unplug the monitor before removal or installation to avoid an electric shock or a damage.

  • Page 14: Controls And Connectors : Prolite Xub2495Wsu

    CONTROLS AND CONNECTORS : ProLite XUB2495WSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( ) Menu (ENTER) Scroll Up / Volume ( Scroll Down / ECO Mode ( Exit / i-Style Color (EXIT) Input Select (INPUT) Speakers USB Downstream Connector ( USB Downstream Connector ( USB Downstream Connector ( USB Upstream Connector ( Headphone connector (HEADPHONE)

  • Page 15: Controls And Connectors : Prolite Xu2495Wsu

    CONTROLS AND CONNECTORS : ProLite XU2495WSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( ) Menu (ENTER) Scroll Up / Volume ( Scroll Down / ECO Mode ( Exit / i-Style Color (EXIT) Input Select (INPUT) Speakers USB Downstream Connector ( USB Downstream Connector ( USB Downstream Connector ( USB Upstream Connector ( Headphone connector (HEADPHONE) VGA Connector (VGA) HDMI Connector (HDMI) DisplayPort Connector (DP)

  • Page 16: Connecting Your Monitor : Prolite Xub2495Wsu

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.

  • Page 17: Connecting Your Monitor : Prolite Xu2495Wsu

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.

  • Page 18: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 35: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE : ProLite XU2495WSU  For optimal viewing it is recommended to look at the full face of the monitor. ...

  • Page 19: Adjusting The Height And The Viewing Angle : Prolite Xub2495Wsu

    ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite XUB2495WSU  For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference.

  • Page 20: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 35. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 26 for SCREEN ADJUSTMENTS.

  • Page 21: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Auto Adjust ProLite XUB2495WSU CLICK ENTER AGAIN TO AUTO ADJUST AUTO ADJUST PICTURE ADJUST AUTO ADJUST GEOMETRY COLOR SETTINGS LANGUAGE RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Adjustment Item Problem / Option Button to Press Adjust H. / V. Position, Clock and Phase automatically.
  • Page 22 Picture Adjust ProLite XUB2495WSU AUTO ADJUST BRIGHTNESS PICTURE ADJUST GEOMETRY CONTRAST COLOR SETTINGS LANGUAGE BLUE LIGHT REDUCER RECALL ADV. CONTRAST MISCELLANEOUS OVERDRIVE INPUT SELECT GAMMA AUDIO SETTINGS Adjustment Item Problem / Option Button to Press Too dark 1,2,3 Brightness* Too bright...
  • Page 23 Geometry * ProLite XUB2495WSU AUTO ADJUST GEOMETRY HORIZONTAL POSITION PICTURE ADJUST GEOMETRY VERTICAL POSITION COLOR SETTINGS PIXEL CLOCK PHASE LANGUAGE RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Adjustment Item Problem / Option Button to Press Too left Horizontal Position Too right...
  • Page 24 Color Settings * ProLite XUB2495WSU AUTO ADJUST COLOR TEMPERATURE PICTURE ADJUST 9300K 7500K 6500K GEOMETRY USER PRESET COLOR SETTINGS GREEN LANGUAGE BLUE RECALL MISCELLANEOUS INPUT SELECT SATURATION I-STYLE COLOR AUDIO SETTINGS Adjustment Item Problem / Option Button to Press 9300K...
  • Page 25 When power is back, the monitor returns to the mode it was in before AC loss. After AC Cut Monitors stays in off mode when power is back. NOTE To turn the monitor back on, press the power switch. * Available for ProLite XUB2495WSU only. 20 OPERATING THE MONITOR...
  • Page 26 Language ProLite XUB2495WSU AUTO ADJUST PICTURE ADJUST ENGLISH POLSKI РУССКИЙ GEOMETRY FRANÇAIS ESPAÑOL COLOR SETTINGS DEUTSCH NEDERLANDS ITALIANO ČESKÝ LANGUAGE RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Adjustment Item Problem / Option Button to Press English English Español Spanish Français Dutch...
  • Page 27 Full Expansion display Video Mode Adjust * Aspect * Expansion display of Aspect iiyama Logo does not display when the monitor is turned on. Opening Logo iiyama Logo displayed when the monitor is turned on. DDC/CI function is turned Off.
  • Page 28 Input Select Direct ProLite XUB2495WSU AUTO ADJUST INPUT SOURCE AUTO PICTURE ADJUST MANUAL GEOMETRY MANUAL COLOR SETTINGS SELECT SELECT SELECT LANGUAGE RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Problem / Option Button to Press Adjustment Item Search for an available input source and Auto select automatically.
  • Page 29 Audio Settings ProLite XUB2495WSU VOLUME AUTO ADJUST PICTURE ADJUST GEOMETRY OPTIONS COLOR SETTINGS MUTE AUDIO LANGUAGE RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Adjustment Item Problem / Option Button to Press Too soft Direct Volume Too loud Return the sound volume to the previous level.
  • Page 30 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons ENTER for about 5 seconds. Then, OSD LOCKED will appear on the screen. 2. The OSD lock will be deactivated by pressing the front buttons ENTER again for about 5 seconds. <Power Switch>...

  • Page 31: Screen Adjustments

    If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com). Adjust the image by following the procedure below to get the desired picture.
  • Page 32 Adjust the "Auto Adjust". Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Image Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fit to the display area. 1) Adjust the H.Position so that the left side of the picture frame will move to the left edge of the display area. 2) Stretch the right side of the picture frame to the right edge of the display area by adjusting the Clock.
  • Page 33 Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. NOTE  In case the strong flicker or blurs remain on a part of the screen, repeat steps because the Clock may not be adjusted correctly. If the flicker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.  Adjust the H.Position after the Phase adjustment if the horizontal position moves during the adjustment. Adjust the Brightness and Color to get the desired picture after you complete the Clock and Phase adjustments. Put back your favorite wallpaper.

  • Page 34: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY STAR ® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.

  • Page 35: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 36: Recycling Information

    The sound is too  The audio output level of the audio equipment is within the specification loud or too quiet. of the monitor. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 31...

  • Page 37: Appendix

    APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite XUB2495WSU Size Category 24" Panel technology IPS technology Size Diagonal: 24.1" (61.13cm) Pixel pitch 0.27mm H × 0.27mm V Brightness 300cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical) Viewable angle Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical) Response time 5ms (Gray to Gray)* Display Colors Approx.16.7M Analog: Horizontal: 24.0-82.0kHz, Vertical: 46-66Hz Sync Frequency Digital: Horizontal: 24.0-82.0kHz, Vertical: 46-66Hz...

  • Page 38: Specifications : Prolite Xu2495Wsu

    SPECIFICATIONS : ProLite XU2495WSU Size Category 24" Panel technology IPS technology Size Diagonal: 24.1" (61.13cm) Pixel pitch 0.27mm H × 0.27mm V Brightness 300cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical) Viewable angle Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical) Response time 5ms (Gray to Gray)* Display Colors Approx.16.7M Analog: Horizontal: 24.0-82.0kHz, Vertical: 46-66Hz Sync Frequency Digital: Horizontal: 24.0-82.0kHz, Vertical: 46-66Hz Native Resolution...

  • Page 39: Dimensions : Prolite Xub2495Wsu

    DIMENSIONS : ProLite XUB2495WSU 532.0mm/20.9” 46.5mm/1.8” 527.5mm/20.8” 240.0mm/9.4” ( ) : Maximum adjustment range DIMENSIONS : ProLite XU2495WSU 532.0mm/20.9” 46.5mm/1.8” 527.5mm/20.8” 234.5mm/9.2” 34 APPENDIX...

  • Page 40: Compliant Timing

    COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640 × 480 31.469kHz 59.940Hz 25.175MHz 35.156kHz 56.250Hz 36.000MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz 1024 × 768 48.363kHz 60.004Hz 65.000MHz 1280 × 1024 63.981kHz 60.020Hz 108.000MHz 1440 × 900 55.935kHz 59.887Hz 106.500MHz...
