Summary of Contents for Iiyama ProLite XUB2792HSN

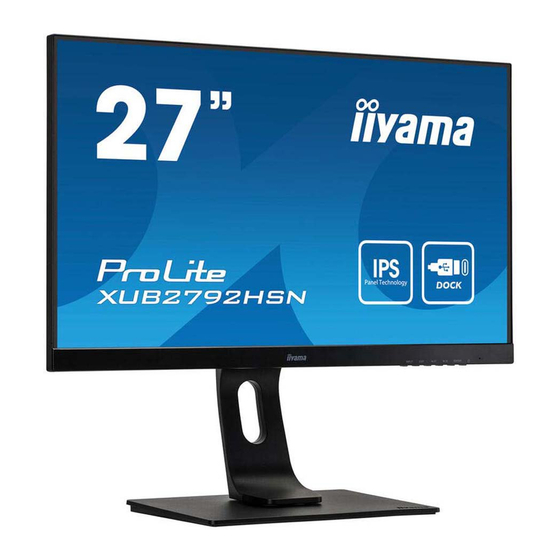

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for your future...
- Page 3 A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.
- Page 4 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2792HC We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 5: Table Of Contents
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE ..... 11 OPERATING THE MONITOR .............12 ADJUSTMENT MENU CONTENTS ..........13 STANDBY FEATURE ..............22 TROUBLE SHOOTING ..............23 RECYCLING INFORMATION .............24 APPENDIX ..................25 SPECIFICATIONS : ProLite XUB2792HSN .........25 SPECIFICATIONS : ProLite XUB2792HSC .........26 DIMENSIONS ................27 COMPLIANT TIMING ..............28... -
Page 6: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 8: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 10: Installation
INSTALLATION Before installation, make sure the display arm or desk arm stand is strong enough CAUTION to hold the necessary weight of the monitor and the mount. Panel angle adjustment range : 22° upward and 5° downward < DISPLAY ARM OR DESK ARM STAND > CAUTION When you use with the display arm or desk arm stand, in consideration of thickness of the mounting stage, tighten the M4 Screws (4pcs) which “L” length is 7mm to fasten... - Page 11 < ROTATING THE MONITOR > The monitor is designed to be compatible with both landscape and portrait modes. Graphics card for portrait display will be required for rotating the image on the screen. Available Not Available Power Indicator Landscape Portrait Portrait Power Indicator With Stand:...
-
Page 12: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 13: Controls And Connectors
LAN(RJ45) Connector ( USB Type-C Connector (USB C : 20V, 3.25A) DisplayPort Connector (DP) DisplayPort Out Connector (DP OUT) * HDMI Connector (HDMI) Cable Hole AC Connector ( : Alternating current) Only for ProLite XUB2792HSN DP OUT Connector has a black rubber cap already attached. Remove the cap before connection. 8 BEFORE YOU OPERATE THE MONITOR... -
Page 14: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. - Page 15 Laptop Computer AV Equipment etc. DisplayPort Cable (Not included) DisplayPort Cable (Not included) Monitor Desktop Computer * Only for ProLite XUB2792HSN [ Collect Cables ] Put the cables through the cable hole to bundle them. 10 BEFORE YOU OPERATE THE MONITOR...
-
Page 16: Disconnecting Your Monitor
DISCONNECTING YOUR MONITOR Ensure that both the computer and the monitor are switched off. Disconnect the power source first and then the Power Cable from the monitor. Disconnect the USB Type-C cable from the computer and the monitor. Disconnect the signal cable from the computer and the monitor. COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 28: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE ... -
Page 17: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 28. You are also able to adjust the picture by following the button operation shown below. -
Page 18: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust * ProLite XUB2792HSN PICTURE ADJUST BRIGHTNESS COLOR SETTINGS CONTRAST LANGUAGE RECALL MODE 1 MISCELLANEOUS BLUE LIGHT REDUCER MODE 1 INPUT SELECT ADV. CONTRAST AUDIO SETTINGS OVERDRIVE Adjustment Item Problem / Option Button to Press Too dark... - Page 19 Color Settings ProLite XUB2792HSN PICTURE ADJUST COLOR TEMPERATURE COLOR SETTINGS 9300K 7500K 6500K USER PRESET LANGUAGE RECALL GREEN MISCELLANEOUS BLUE INPUT SELECT AUDIO SETTINGS I-STYLE COLOR Adjustment Item Problem / Option Button to Press Cool color 9300K Color Temperature *...
- Page 20 ProLite XUB2792HSN PICTURE ADJUST ON SCREEN DISPLAY SETTINGS COLOR SETTINGS OSD HORIZONTAL POSITION OSD VERTICAL POSITION LANGUAGE OSD ROTATE RECALL OSD TIME MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Adjustment Item Problem / Option Button to Press OSD is too left OSD Horizontal Position...
- Page 21 Language ProLite XUB2792HSN PICTURE ADJUST POLSKI COLOR SETTINGS ENGLISH РУССКИЙ FRANÇAIS ESPAÑOL LANGUAGE DEUTSCH NEDERLANDS RECALL ITALIANO ČESKÝ MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Adjustment Item Option English English Español Spanish Français French Nederlands Dutch Language German Deutsch Ĉesky Czech Italian...
- Page 22 Full Full screen display Video Mode Adjust Aspect * Expansion display of Aspect iiyama Logo is displayed when the monitor is turned on. Opening Logo iiyama Logo is not displayed when the monitor is turned on. USB devices can be charged even when the monitor is in the standby mode.
- Page 23 Option is unavailable with 16:9 resolution. Available for DisplayPort or USB Type-C input only. On/Off of the MST function is not dependent on input signal switching. Maximum monitor quantity that can be connected in a daisy chain using DP OUT connector Video format : 1920 × 1080 @60Hz MST : On MST : Off Input source Extension mode...
- Page 24 Input Select ProLite XUB2792HSN PICTURE ADJUST INPUT SOURCE Direct COLOR SETTINGS MANUAL AUTO MANUAL LANGUAGE SELECT HDMI RECALL DISPLAYPORT (DP) SELECT MISCELLANEOUS USB C SELECT INPUT SELECT AUDIO SETTINGS Adjustment Item Option Search for an available input source and select Auto * automatically.
- Page 25 Audio Settings ProLite XUB2792HSN PICTURE ADJUST VOLUME COLOR SETTINGS OPTIONS LANGUAGE MUTE AUDIO RECALL MISCELLANEOUS INPUT SELECT AUDIO SETTINGS Adjustment Item Problem / Option Button to Press Too soft Volume Direct Too loud Turn off the sound temporarily. Mute Audio Return the sound volume to the previous level.
- Page 26 Lock Mode <OSD Menu> The OSD can be locked to avoid an accidental setting change. 1. Make sure the monitor is turned ON. 2. The OSD lock will be activated by pressing the front ENTER Button for about 10 seconds. If you try to access the OSD by pressing any of the buttons, a message "OSD Locked"...
-
Page 27: Standby Feature
STANDBY FEATURE This product features the standby function. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. There is a standby step the monitor takes as described below. The standby function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured. -
Page 28: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 29: Recycling Information
A strange noise is The audio visual cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 24 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 30: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite XUB2792HSN Size Category 27" Panel technology IPS (In-Plane-Switching) Size Diagonal: 27" (68.6cm) Pixel pitch 0.311mm H × 0.311mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down : 89 degrees each (Typical) Response time 4ms (Gray to Gray) Display Colors Approx. 16.7M Sync Frequency Horizontal: 30.0-85.0kHz, Vertical: 55-75Hz... -
Page 31: Specifications : Prolite Xub2792Hsc
SPECIFICATIONS : ProLite XUB2792HSC Size Category 27" Panel technology IPS (In-Plane-Switching) Size Diagonal: 27" (68.6cm) Pixel pitch 0.311mm H × 0.311mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down : 89 degrees each (Typical) Response time 4ms (Gray to Gray) Display Colors Approx. 16.7M Sync Frequency Horizontal: 30.0-85.0kHz, Vertical: 55-75Hz Native Resolution 1920 ×... -
Page 32: Dimensions
DIMENSIONS 612.0mm/24.1” 54.0mm/2.1” 606.0mm/23.9” 300.0mm/11.8” ( ) : Maximum adjustment range APPENDIX 27... -
Page 33: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 56.476kHz 70.069Hz 75.000MHz...
