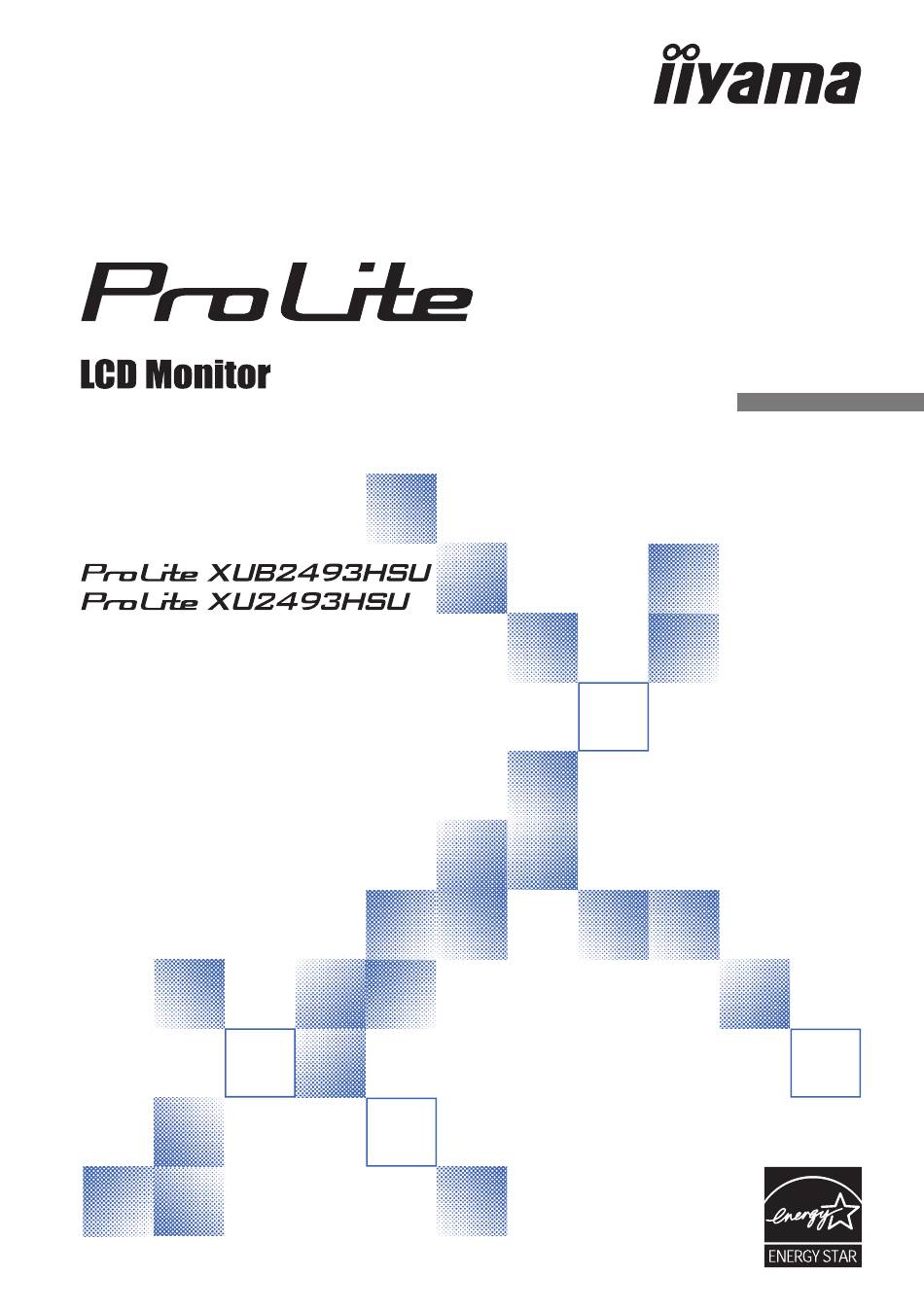

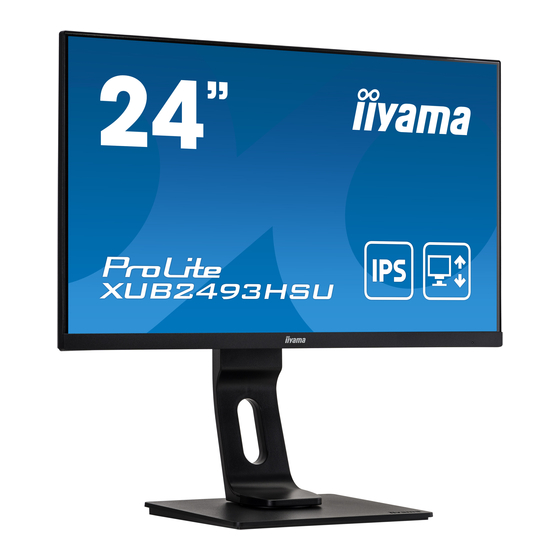

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2493H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 INSTALLATION ................5 FITTING AND REMOVAL OF BASE : ProLite XUB2493HSU ..7 FITTING AND REMOVAL OF BASE : ProLite XU2493HSU ...8 CONTROLS AND CONNECTORS : ProLite XUB2493HSU ...9 CONTROLS AND CONNECTORS : ProLite XU2493HSU....10... -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 9: Installation
INSTALLATION WARNING Before installation, make sure the wall, ceiling or desktop arm is strong enough to hold the necessary weight of the monitor and the mount. [WALL MOUNTING] WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screws (4pcs) with washer which “L” length is 7mm to fasten the monitor. - Page 10 [ROTATING THE MONITOR] ● ProLite XUB2493HSU The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Available Not Available Power Indicator Landscape Portrait Portrait Power Indicator With Stand:...
-
Page 11: Fitting And Removal Of Base : Prolite Xub2493Hsu
FITTING AND REMOVAL OF BASE : ProLite XUB2493HSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 12: Fitting And Removal Of Base : Prolite Xu2493Hsu
FITTING AND REMOVAL OF BASE : ProLite XU2493HSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 13: Controls And Connectors : Prolite Xub2493Hsu
CONTROLS AND CONNECTORS : ProLite XUB2493HSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Signal Select / Auto Adjust / Exit Button (INPUT) * (Press for 2-3 seconds.) + / Volume Button ( + ) * – / Eco Button ( – ) * Menu Button (MENU) Power Switch ( ) Speakers USB Downstream Connector ( 5V, 500mA) USB Downstream Connector ( 5V, 500mA) Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission. -
Page 14: Controls And Connectors : Prolite Xu2493Hsu
CONTROLS AND CONNECTORS : ProLite XU2493HSU <Front> <Back> Power Indicator Blue: Normal operation NOTE Orange: Power Management Signal Select / Auto Adjust / Exit Button (INPUT) * (Press for 2-3 seconds.) + / Volume Button ( + ) * – / Eco Button ( – ) * Menu Button (MENU) Power Switch ( ) Speakers USB Downstream Connector ( 5V, 500mA) USB Downstream Connector ( 5V, 500mA) Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission. -
Page 15: Connecting Your Monitor : Prolite Xub2493Hsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 16: Connecting Your Monitor : Prolite Xu2493Hsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 17: Disconnecting Your Monitor
DISCONNECTING YOUR MONITOR Ensure that both the computer and the monitor are switched off. Disconnect the power source first and then the Power Cable from the monitor. Disconnect the audio cable from the computer and the monitor. Disconnect the USB cable from the computer and the monitor. Disconnect the signal cable from the computer and the monitor. COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 33: COMPLIANT TIMING. -
Page 18: Adjusting The Viewing Angle : Prolite Xu2493Hsu
ADJUSTING THE VIEWING ANGLE : ProLite XU2493HSU For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle. ... -
Page 19: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 33. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 24 for SCREEN ADJUSTMENTS. -
Page 20: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust ProLite XUB2493HSU PICTURE ADJUST CONTRAST IMAGE SETTINGS COLOR SETTINGS BRIGHTNESS EXTRA I-STYLE COLOR STANDARD ADV. CONTRAST MODE1 OVERDRIVE X-RES TECHNOLOGY Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark Brightness * Too bright Return to a state set by color adjustment except... - Page 21 Picture Adjust ProLite XUB2493HSU PICTURE ADJUST CONTRAST IMAGE SETTINGS COLOR SETTINGS BRIGHTNESS EXTRA I-STYLE COLOR STANDARD ADV. CONTRAST MODE1 OVERDRIVE X-RES TECHNOLOGY Adjustment Item Problem / Option Button to Press Off / -2 / -1 / 0 / +1 / +2 It will improve the gray level response time of the Overdrive * LCD panel.
- Page 22 Image Settings ProLite XUB2493HSU IMAGE SETTINGS PICTURE ADJUST IMAGE SETTINGS AUTO ADJUST COLOR SETTINGS PIXEL CLOCK PHASE HORIZONTAL POSITION EXTRA VERTICAL POSITION SHARP AND SOFT ASPECT RATIO FULL Adjustment Item Problem / Option Button to Press Adjust Horizontal / Vertical Position, Pixel Clock and Phase automatically.
- Page 23 Color Settings * ProLite XUB2493HSU PICTURE ADJUST COLOR SETTINGS IMAGE SETTINGS GAMMA GAMMA1 COLOR SETTINGS 6-AXIS COLOR TEMP. USER EXTRA USER PRESET GREEN BLUE Adjustment Item Problem / Option Button to Press Gamma1 Normal Gamma * Gamma2 Dark High contrast Gamma3 Yellow Too weak...
- Page 24 ProLite XUB2493HSU PICTURE ADJUST ON SCREEN DISPLAY SETTINGS OSD HORIZONTAL POSITION IMAGE SETTINGS OSD VERTICAL POSITION COLOR SETTINGS OSD TIME EXTRA LANGUAGE ENGLISH Adjustment Item Problem / Option Button to Press OSD is too left OSD Horizontal Position OSD is too right OSD is too low OSD Vertical Position OSD is too high...
- Page 25 Extra ProLite XUB2493HSU PICTURE ADJUST EXTRA IMAGE SETTINGS RESET COLOR SETTINGS DDC/CI HDMI SIGNAL SELECT EXTRA AUDIO SOURCE LINE IN HDMI RANGE AUTO OPENING LOGO INFORMATION Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Reset Return to Menu. DDC/CI is On.
- Page 26 Extra ProLite XUB2493HSU PICTURE ADJUST EXTRA IMAGE SETTINGS RESET COLOR SETTINGS DDC/CI SIGNAL SELECT HDMI EXTRA AUDIO SOURCE LINE IN AUTO HDMI RANGE OPENING LOGO INFORMATION Adjustment Item Problem / Option Button to Press Opening Logo is On. Opening Logo Opening Logo is Off.
- Page 27 Direct You can skip the Menu items and directly display an option setting screen or an adjustment scale by using the following button operations. Volume: Press the + Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume...
-
Page 28: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). Adjust the image by following the procedure below to get the desired picture. - Page 29 Pressing and holding of the INPUT Button for 2-3 seconds when the Menu is not displayed. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust. Adjust the Vertical Position so that the top and bottom of the picture frame will fit to the display area. 1) Adjust the Horizontal Position so that the left side of the picture frame will move to the left edge of the display area.
- Page 30 Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. NOTE In case the strong flicker or blurs remain on a part of the screen, repeat steps because the Pixel Clock may not be adjusted correctly. Adjust the Horizontal Position after the Phase adjustment if the horizontal position moves during the adjustment. Adjust the Brightness and Color to get the desired picture after you complete the Pixel Clock and Phase adjustments.
-
Page 31: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 32: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 33: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 29... -
Page 34: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite XUB2493HSU Size Category 24" Panel technology IPS Panel Technology Size Diagonal: 23.8" (60.5cm) Pixel pitch 0.275mm H × 0.275mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down : 89 degrees each (Typical) Response time 4ms (Gray to Gray) Display Colors Approx. 16.7M Sync Frequency Horizontal: 30.0-84.0kHz, Vertical: 55-75Hz Native Resolution... -
Page 35: Specifications : Prolite Xu2493Hsu
SPECIFICATIONS : ProLite XU2493HSU Size Category 24" Panel technology IPS Panel Technology Size Diagonal: 23.8" (60.5cm) Pixel pitch 0.275mm H × 0.275mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down : 89 degrees each (Typical) Response time 4ms (Gray to Gray) Display Colors Approx. 16.7M Sync Frequency Horizontal: 30.0-84.0kHz, Vertical: 55-75Hz Native Resolution 1920 ×... -
Page 36: Dimensions : Prolite Xub2493Hsu
DIMENSIONS : ProLite XUB2493HSU 539.5mm / 21.2” 534.0mm / 21.0” 45.5mm / 1.8” 240.0mm / 9.5” ( ) : Maximum adjustment range DIMENSIONS : ProLite XU2493HSU 539.5mm / 21.2” 45.5mm / 1.8” 534.0mm / 21.0” 217.5mm / 8.6” 32 APPENDIX... -
Page 37: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.879kHz 60.317Hz 40.000MHz 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 60.023kHz 75.029Hz 78.750MHz 63.981kHz 60.020Hz 108.000MHz 1280 ×...
