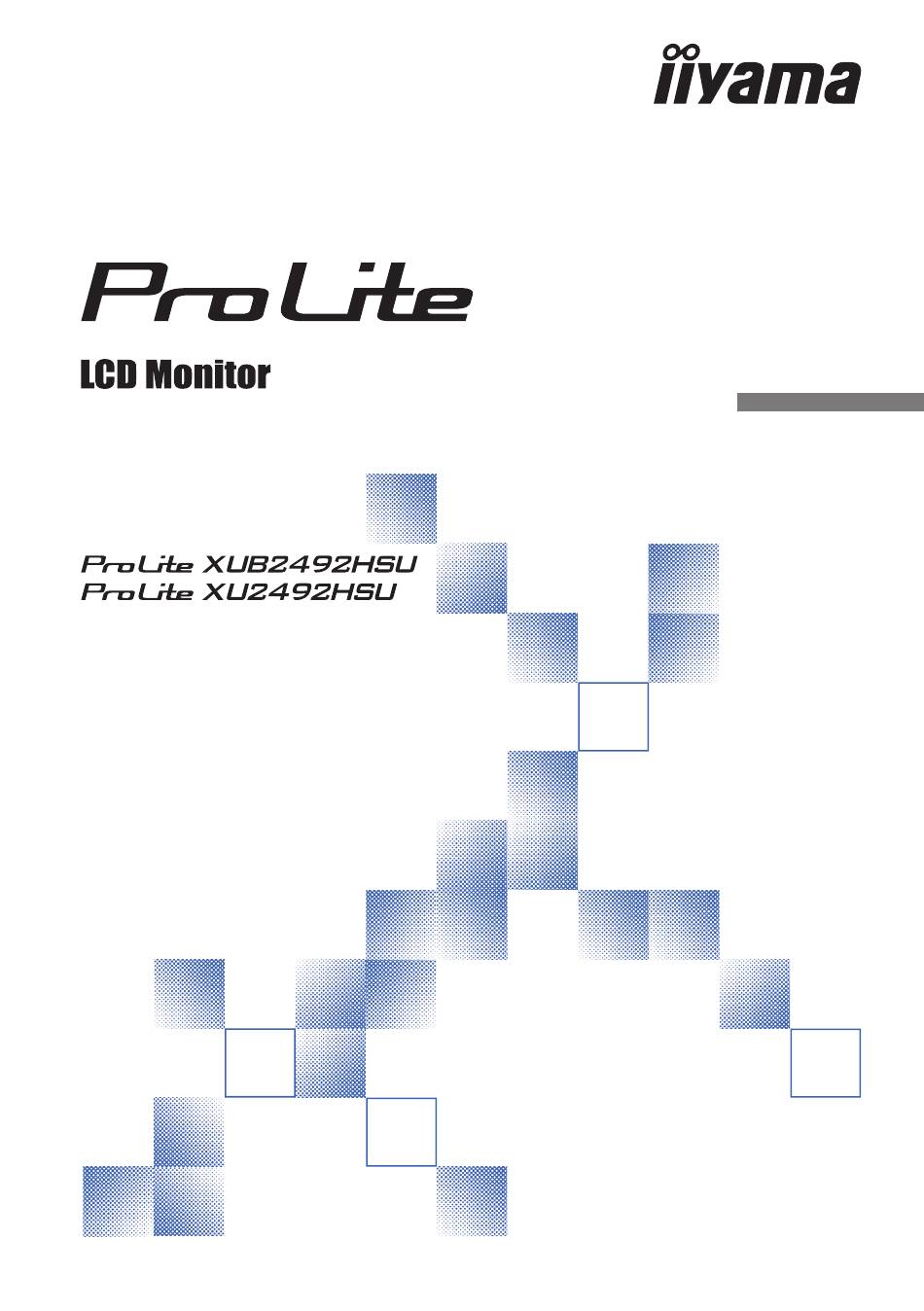

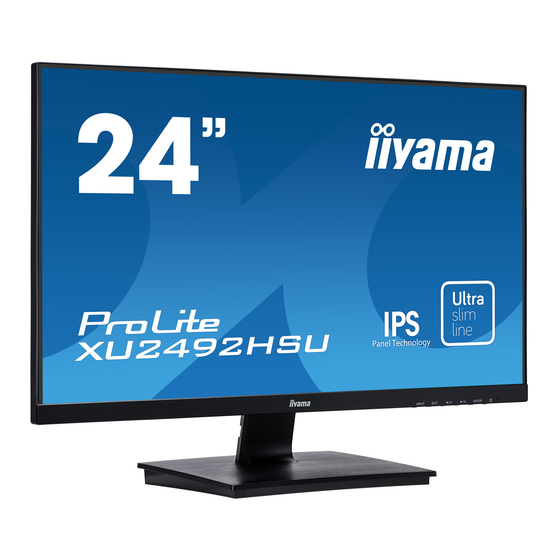

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.
- Page 4 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2492H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 5: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 INSTALLATION ................5 FITTING AND REMOVAL OF BASE : ProLite XUB2492HSU ..7 FITTING AND REMOVAL OF BASE : ProLite XU2492HSU ...8 CONTROLS AND CONNECTORS : ProLite XUB2492HSU ...9 CONTROLS AND CONNECTORS : ProLite XU2492HSU....10... -
Page 6: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 8: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 10: Installation
INSTALLATION WARNING Before installation, make sure the wall, ceiling or desktop arm is strong enough to hold the necessary weight of the monitor and the mount. < WALL MOUNTING > WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screws (4 pcs) with washer which “L” length is 7mm to fasten the monitor. - Page 11 < ROTATING THE MONITOR> ● ProLite XUB2492HSU The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Available Not Available Power Indicator Landscape Power Indicator Portrait...
-
Page 12: Fitting And Removal Of Base : Prolite Xub2492Hsu
FITTING AND REMOVAL OF BASE : ProLite XUB2492HSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 13: Fitting And Removal Of Base : Prolite Xu2492Hsu
FITTING AND REMOVAL OF BASE : ProLite XU2492HSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 14: Controls And Connectors : Prolite Xub2492Hsu
CONTROLS AND CONNECTORS : ProLite XUB2492HSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( ) Menu / Select Button (ENTER) Scroll Up / Volume Button ( Scroll Down / ECO Mode Button ( Exit Button (EXIT) Input Select Button (INPUT) Speakers USB Downstream Connectors ( 5V, 500mA) Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission. -
Page 15: Controls And Connectors : Prolite Xu2492Hsu
CONTROLS AND CONNECTORS : ProLite XU2492HSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( ) Menu / Select Button (ENTER) Scroll Up / Volume Button ( Scroll Down / ECO Mode Button ( Exit Button (EXIT) Input Select Button (INPUT) Speakers USB Downstream Connectors ( 5V, 500mA) Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission. -
Page 16: Connecting Your Monitor : Prolite Xub2492Hsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 17: Connecting Your Monitor : Prolite Xu2492Hsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 18: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 32: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite XUB2492HSU For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. -
Page 19: Adjusting The Viewing Angle : Prolite Xu2492Hsu
ADJUSTING THE VIEWING ANGLE : ProLite XU2492HSU For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle. ... -
Page 20: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 32. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 23 for SCREEN ADJUSTMENTS. -
Page 21: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust * Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark 1,2,4 Brightness * Too bright Off / +1 / +2 Overdrive It will improve the gray level response time of the LCD panel. A higher level results in a faster response time. - Page 22 Input Select Adjustment Item Problem / Option Button to Press Select the Analog input. HDMI Select the Digital (HDMI) input. Direct Input Select DisplayPort Select the Digital (DisplayPort) input. Search for an available input source and select Auto automatically. Input source is fixed, not selected automatically when VGA, HDMI and DisplayPort which NOTE are selected. Direct You can skip the Menu items and directly display an option setting screen by using the following button operations.
- Page 23 Color Adjust Adjustment Item Problem / Option Button to Press Cool * Bluish white Greenish white Normal * Warm * Reddish white Too weak Green User Color * Too strong Blue Return to a state set by color adjustment except i-Style Color.
- Page 24 Image Adjust Adjustment Item Problem / Option Button to Press Auto Adjust * Adjust H. / V. Position, Clock and Phase automatically. Direct Too left H. Position * Too right Too low V. Position * Too high Too narrow Clock * Too wide Phase * To correct flickering text or lines...
- Page 25 OSD is too high You can set the OSD display duration time between OSD Time Out 5 and 30 seconds. iiyama Logo does not display when the monitor is turned on. Opening Logo iiyama Logo displayed when the monitor is turned on.
- Page 26 Display Information Displays information regarding the current input signal coming from the graphic card in your computer. Display Information 1 9 2 0 x 1 0 8 0 @ 6 0 H z See your graphic card user guide for more information about changing the NOTE resolution and refresh.
- Page 27 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front button ENTER for about 10 seconds. If you try to access the OSD by pressing any of the buttons, message "OSD Locked" will appear on the screen.
-
Page 28: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). Adjust the image by following the procedure below to get the desired picture. - Page 29 Pressing and holding of the INPUT Button for 2-3 seconds when the Menu is not displayed. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fit to the display area.
- Page 30 Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. NOTE In case the strong flicker or blurs remain on a part of the screen, repeat steps because the Pixel Clock may not be adjusted correctly. Adjust the H.Position after the Phase adjustment if the horizontal position moves during the adjustment. Adjust the Brightness and Color to get the desired picture after you complete the Pixel Clock and Phase adjustments.
-
Page 31: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 32: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 33: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 28 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 34: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite XUB2492HSU Size Category 24" Panel technology IPS Panel Technology Size Diagonal: 23.8" (60.5cm) Pixel pitch 0.275mm H × 0.275mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down : 89 degrees each (Typical) Response time 4ms (Gray to Gray) Display Colors 16,777,216 Sync Frequency Horizontal: 30.0-80.0kHz, Vertical: 55-75Hz Native Resolution 1920 ×... -
Page 35: Specifications : Prolite Xu2492Hsu
SPECIFICATIONS : ProLite XU2492HSU Size Category 24" Panel technology IPS Panel Technology Size Diagonal: 23.8" (60.5cm) Pixel pitch 0.275mm H × 0.275mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down : 89 degrees each (Typical) Response time 4ms (Gray to Gray) Display Colors 16,777,216 Sync Frequency Horizontal: 30.0-80.0kHz, Vertical: 55-75Hz Native Resolution 1920 ×... -
Page 36: Dimensions : Prolite Xub2492Hsu
DIMENSIONS : ProLite XUB2492HSU 539.5mm/21.2” 52.5mm/2.1” 533.5mm/21.0” 240.0mm/9.5” ( ) : Maximum adjustment range DIMENSIONS : ProLite XU2492HSU 539.5mm/21.2” 52.5mm/2.1” 533.5mm/21.0” 220.5mm/8.7” APPENDIX 31... -
Page 37: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 56.476kHz 70.069Hz 75.000MHz...
