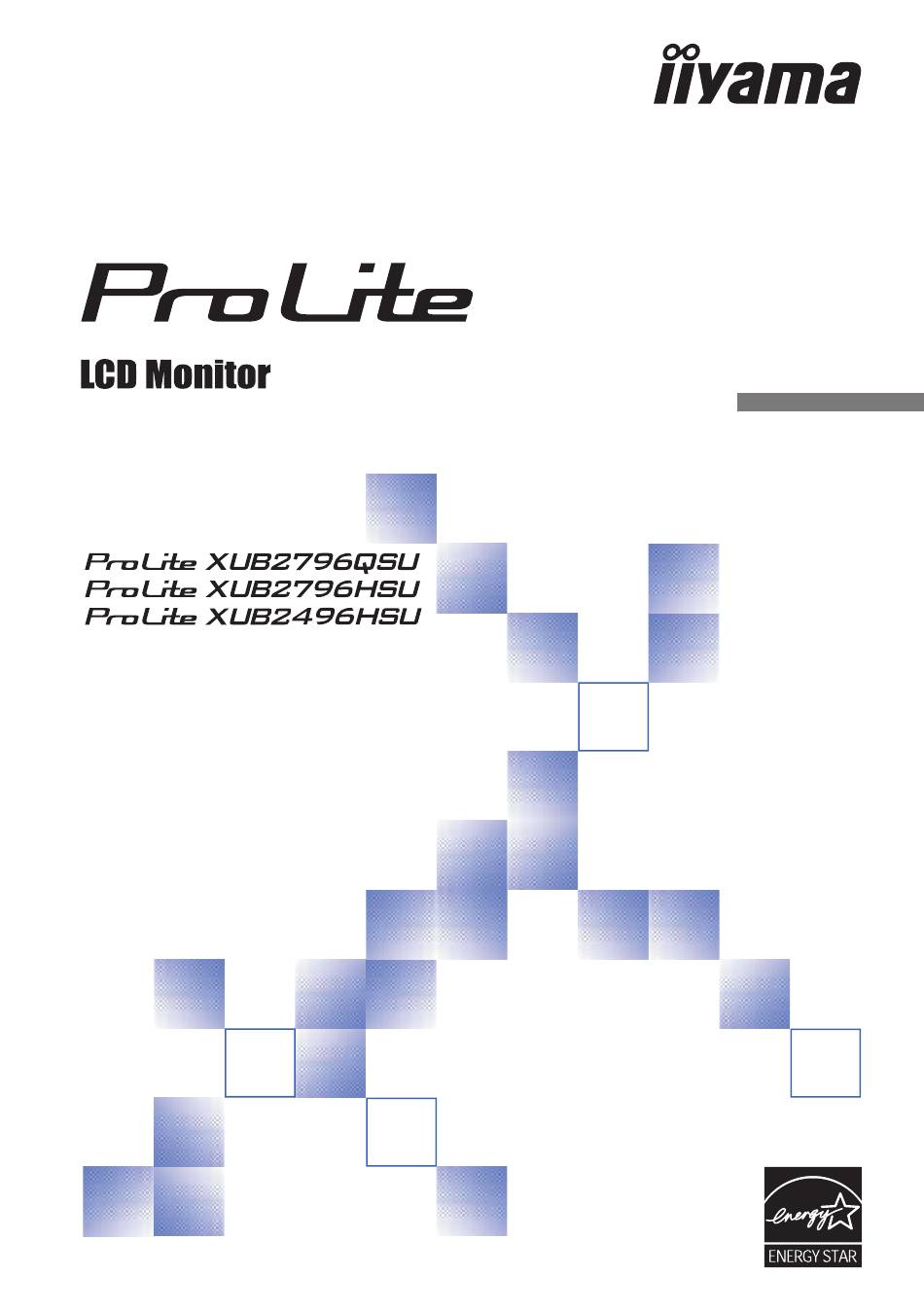

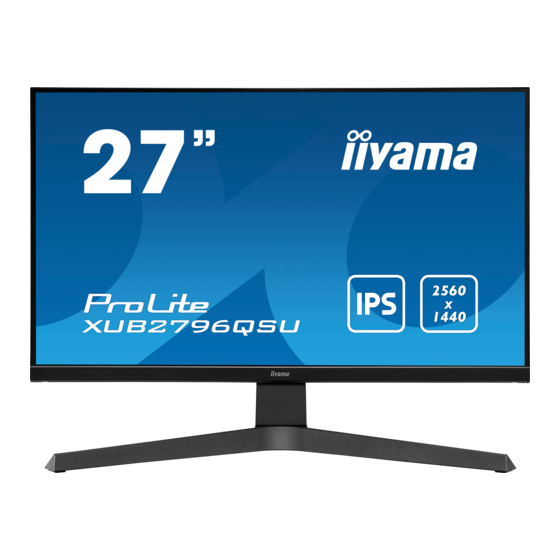

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2796QS, PL2796HS, PL2496HS We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
CHECKING THE CONTENTS OF THE PACKAGE ......4 INSTALLATION ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR : ProLite XUB2796QSU ....8 CONNECTING YOUR MONITOR : ProLite XUB2796HSU / ProLite XUB2496HSU .......9 COMPUTER SETTING ..............10 ADJUSTING THE HEIGHT AND THE VIEWING ANGLE .....10 OPERATING THE MONITOR ............. -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 9: Installation
INSTALLATION Before installation, make sure the wall, ceiling or desktop arm is strong enough to WARNING hold the necessary weight of the display and the mount. < WALL MOUNTING > When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screws (4pcs) with washer which “L” length is 7mm to fasten the monitor. -
Page 10: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 11: Controls And Connectors
You can fasten a security lock and cable to prevent the monitor from being removed without your permission. USB Upstream Connector ( USB Downstream Connector ( 5V, 500mA) ProLite XUB2796QSU : DisplayPort Connector (DP) ProLite XUB2796HSU / ProLite XUB2496HSU : HDMI Connector (HDMI) ProLite XUB2796QSU : HDMI Connector (HDMI) ProLite XUB2796HSU / ProLite XUB2496HSU : DisplayPort Connector (DP) Cable Holder... -
Page 12: Connecting Your Monitor : Prolite Xub2796Qsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 13: Connecting Your Monitor : Prolite Xub2796Hsu / Prolite Xub2496Hsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 14: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 31: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height 3°... -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 31. You are also able to adjust the picture by following the button operation shown below. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust ProLite XUB2796QSU PICTURE ADJUST PICTURE ADJUST INPUT SELECT CONTRAST AUDIO SETTINGS BRIGHTNESS STORE USER SETTING OVERDRIVE COLOR SETTINGS ADV. CONTRAST IMAGE ADJUST LANGUAGE BLUE LIGHT REDUCER SETUP MENU BLACK TUNER DISPLAY INFORMATION COLOR SATURATION RECALL... - Page 17 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright. Contrast and Brightness are disabled when Adv. Contrast is on. ECO is off when Adv. Contrast is on. Contrast, Brightness, Overdrive, Adv. Contrast, ECO, Blue Light Reducer and Gamma are disabled when i-Style Color is activated.
- Page 18 Input Select ProLite XUB2796QSU PICTURE ADJUST INPUT SOURCE Direct INPUT SELECT AUTO MANUAL AUDIO SETTINGS MANUAL STORE USER SETTING HDMI SELECT COLOR SETTINGS DISPLAYPORT(DP) SELECT IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL EXIT : SELECT : / PUSH Problem / Option...
- Page 19 Audio Settings ProLite XUB2796QSU PICTURE ADJUST VOLUME INPUT SELECT AUDIO SETTINGS OPTIONS STORE USER SETTING MUTE AUDIO COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL EXIT : SELECT : / PUSH Adjustment Item Problem / Option Button to Press...
- Page 20 Store User Setting ProLite XUB2796QSU STORE USER SETTING PICTURE ADJUST INPUT SELECT USER MODES USER MODE1 AUDIO SETTINGS STORE USER SETTING COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL EXIT : SELECT : / PUSH Adjustment Item Problem / Option...
- Page 21 Image Adjust ProLite XUB2796QSU PICTURE ADJUST IMAGE ADJUST INPUT SELECT I-STYLE COLOR STANDARD AUDIO SETTINGS SHARP AND SOFT STORE USER SETTING HDMI RGB RANGE FULL LIMITED COLOR SETTINGS VIDEO MODE ADJUST FULL IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL...
- Page 22 Language ProLite XUB2796QSU PICTURE ADJUST РУССКИЙ INPUT SELECT ENGLISH POLSKI AUDIO SETTINGS FRANÇAIS ESPAÑOL STORE USER SETTING DEUTSCH NEDERLANDS ČESKÝ ITALIANO COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL EXIT : SELECT : / PUSH Adjustment Item Problem / Option Button to Press Español...
- Page 23 OSD is too high You can set the OSD display duration time between OSD Time 5 and 30 seconds. iiyama Logo does not display when the monitor is turned on. Opening Logo iiyama Logo displayed when the monitor is turned on.
- Page 24 Display Information ProLite XUB2796QSU PICTURE ADJUST DISPLAY INFORMATION 1920X1080 @144HZ HDMI INPUT SELECT AUDIO SETTINGS STORE USER SETTING COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL EXIT : Displays information regarding the current input signal coming from the graphic card in your computer.
- Page 25 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the MENU button for about 10 seconds. If you try to access the OSD by pressing any of the buttons, message "OSD Locked" will appear on the screen.
-
Page 26: Standby Feature
STANDBY FEATURE ® The standby feature of this product complies with power saving requirement of ENERGY STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a standby step the monitor takes as described below. -
Page 27: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 28: Recycling Information
The audio output level of the audio equipment is within the specification of the monitor. The audio output level of the audio equipment is within the specification of The sound is too loud or too quiet. the monitor. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 24 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 29: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite XUB2796QSU Size Category 27" Panel technology IPS Panel Technology Diagonal: 27" (68.5cm) Size Pixel pitch 0.233mm H × 0.233mm V (Typical) Brightness 250cd/m Panel 1000 : 1 (Typical), Adv. Contrast Function Available Contrast ratio Right / Left : 89° each, Up / Down : 89° each (Typical) Viewable angle MPRT Display Colors Approx. 16.7M Sync Frequency Horizontal: 31.0-120.0kHz, Vertical: 48-75Hz... -
Page 30: Specifications : Prolite Xub2796Hsu
SPECIFICATIONS : ProLite XUB2796HSU Size Category 27" Panel technology IPS Panel Technology Diagonal: 27" (68.6cm) Size Pixel pitch 0.311mm H × 0.311mm V (Typical) Brightness 250cd/m Panel 1000 : 1 (Typical), Adv. Contrast Function Available Contrast ratio Right / Left : 89° each, Up / Down : 89° each (Typical) Viewable angle MPRT Display Colors Approx. 16.7M Sync Frequency Horizontal: 31.0-85.0kHz, Vertical: 48-75Hz Native Resolution 1920 ×... -
Page 31: Specifications : Prolite Xub2496Hsu
SPECIFICATIONS : ProLite XUB2496HSU Size Category 24" Panel technology IPS Panel Technology Diagonal: 23,8" (60.5cm) Size Pixel pitch 0.275mm H × 0.275mm V (Typical) Brightness 250cd/m Panel 1000 : 1 (Typical), Adv. Contrast Function Available Contrast ratio Right / Left : 89° each, Up / Down : 89° each (Typical) Viewable angle MPRT Display Colors Approx. 16.7M Sync Frequency Horizontal: 31.0-85.0kHz, Vertical: 48-75Hz Native Resolution 1920 ×... -
Page 32: Dimensions : Prolite Xub2796Qsu
DIMENSIONS : ProLite XUB2796QSU 611.5mm/24.1” 39.0mm/1.5” 607.0mm/23.9” 480.0mm/18.9” ( ) : Maximum adjustment range 28 APPENDIX... -
Page 33: Dimensions : Prolite Xub2796Hsu
DIMENSIONS : ProLite XUB2796HSU 610.0mm/24.0” 39.0mm/1.5” 606.0mm/23.9” 480.0mm/18.9” ( ) : Maximum adjustment range APPENDIX 29... -
Page 34: Dimensions : Prolite Xub2496Hsu
DIMENSIONS : ProLite XUB2496HSU 539.0mm/21.2” 39.0mm/1.5” 534.0mm/21.0” 480.0mm/18.9” ( ) : Maximum adjustment range 30 APPENDIX... -
Page 35: Compliant Timing
1600 × 1200 75.000kHz 60.000Hz 162.000MHz 1680 × 1050 65.290kHz 60.000Hz 146.250MHz 66.590kHz 59.930Hz 138.500MHz 1920 × 1080 83.890kHz 74.970Hz 174.500MHz 88.787kHz 59.951Hz 241.500MHz 2560 × 1440 111.788kHz 74.925Hz 298.470MHz * Available for ProLite XUB2796QSU only. NOTE APPENDIX 31 M261A22...
