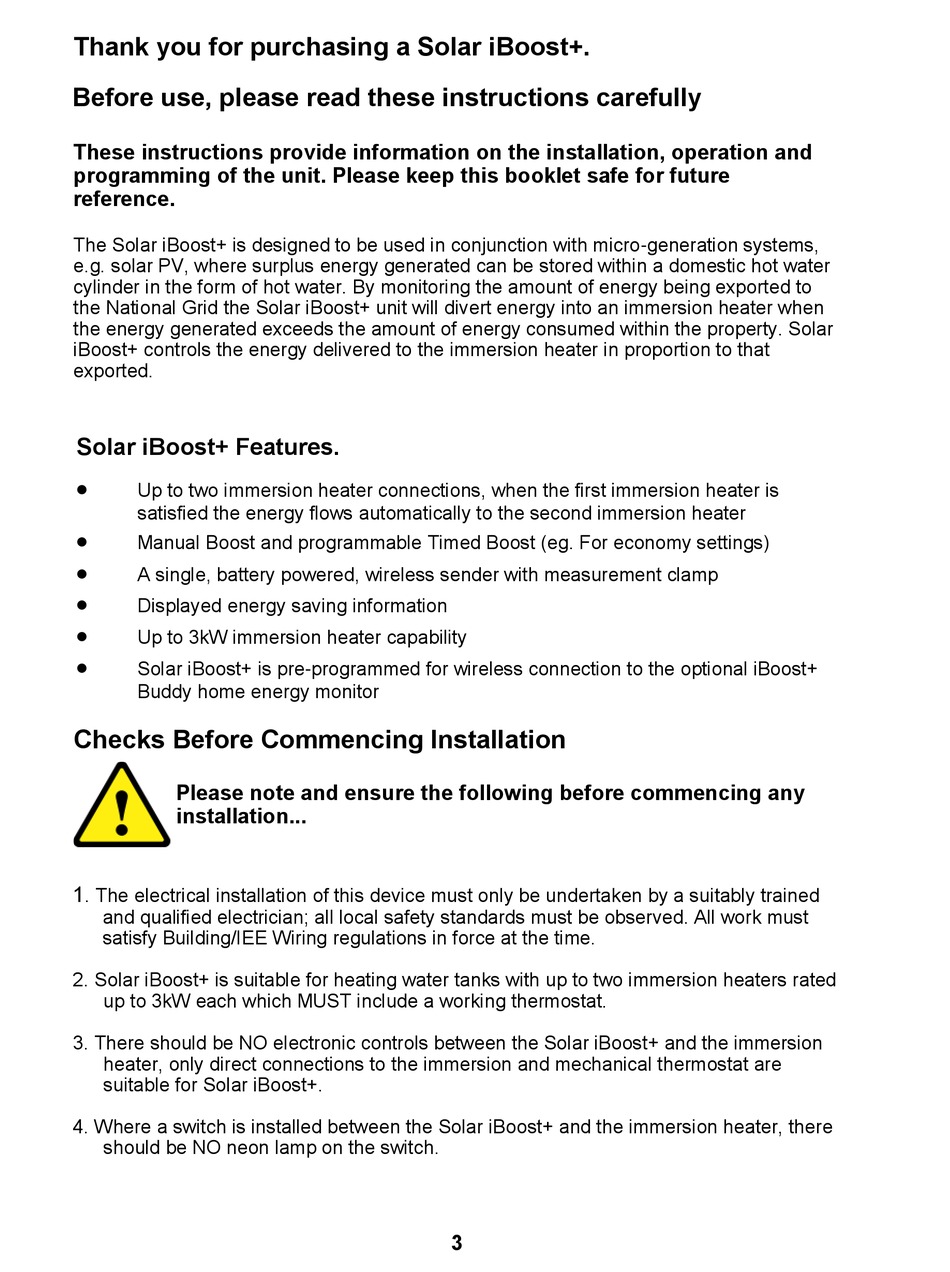

Marlec Solar iBoost+ Installation And Operating Instruction page 3

Thank you for purchasing a Solar iBoost+.
Before use, please read these instructions carefully
These instructions provide information on the installation, operation and
programming of the unit. Please keep this booklet safe for future
reference.
The Solar iBoost+ is designed to be used in conjunction with micro-generation systems,
e.g. solar PV, where surplus energy generated can be stored within a domestic hot water
cylinder in the form of hot water. By monitoring the amount of energy being exported to
the National Grid the Solar iBoost+ unit will divert energy into an immersion heater when
the energy generated exceeds the amount of energy consumed within the property. Solar
iBoost+ controls the energy delivered to the immersion heater in proportion to that
exported.
Solar iBoost+ Features.

Up to two immersion heater connections, when the first immersion heater is
satisfied the energy flows automatically to the second immersion heater

Manual Boost and programmable Timed Boost (eg. For economy settings)

A single, battery powered, wireless sender with measurement clamp

Displayed energy saving information

Up to 3kW immersion heater capability

Solar iBoost+ is pre-programmed for wireless connection to the optional iBoost+
Buddy home energy monitor
Checks Before Commencing Installation
Please note and ensure the following before commencing any
installation...
1
. The electrical installation of this device must only be undertaken by a suitably trained
and qualified electrician; all local safety standards must be observed. All work must
satisfy Building/IEE Wiring regulations in force at the time.
2. Solar iBoost+ is suitable for heating water tanks with up to two immersion heaters rated
up to 3kW each which MUST include a working thermostat.
3. There should be NO electronic controls between the Solar iBoost+ and the immersion
heater, only direct connections to the immersion and mechanical thermostat are
suitable for Solar iBoost+.
4. Where a switch is installed between the Solar iBoost+ and the immersion heater, there
should be NO neon lamp on the switch.
3
