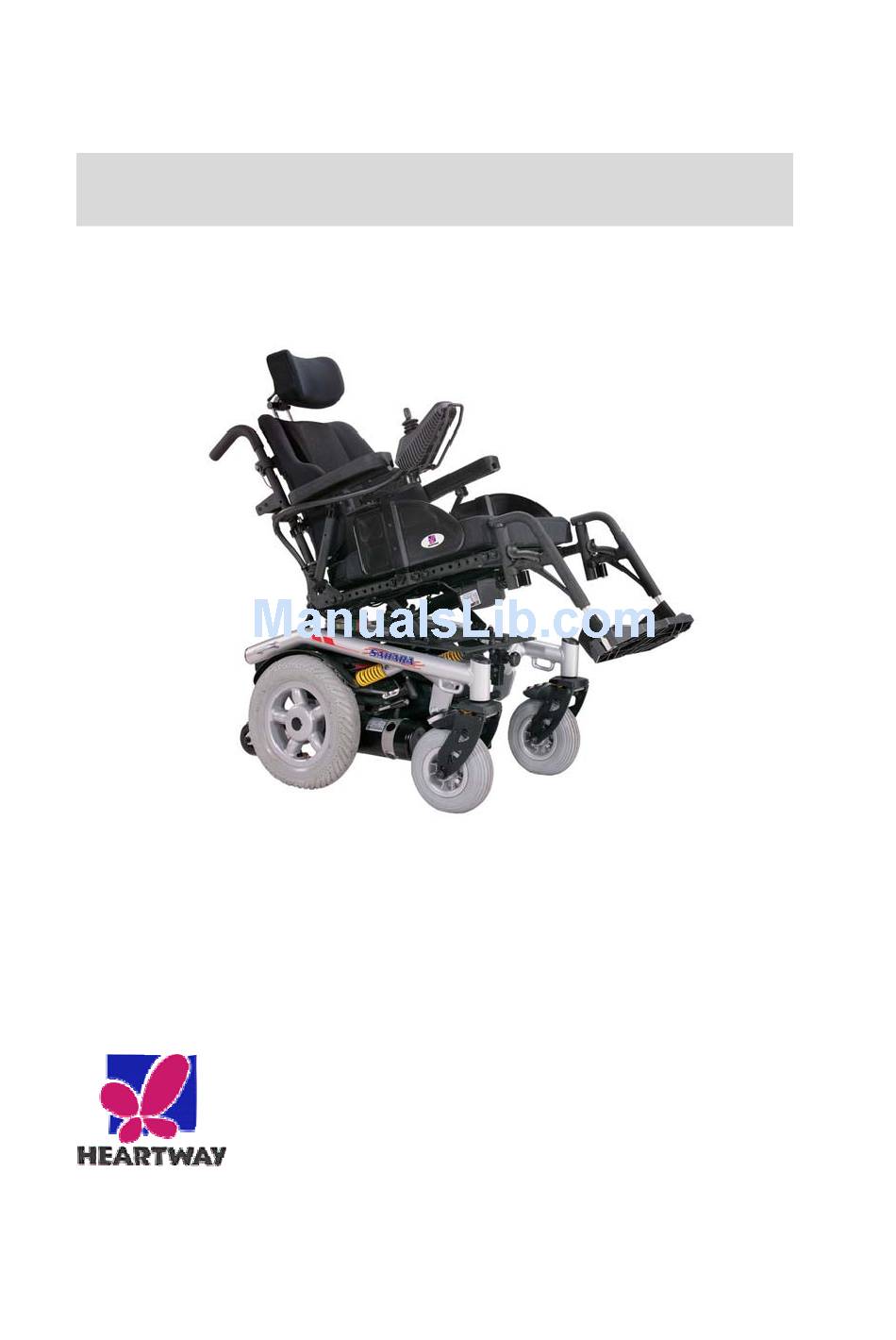

  • Page 1 USERS MANUAL HP7RT HEARTWAY MEDICAL PRODUCTS CO., LTD. Part no:70030066...
  • Page 2 COMPONENTS Your power wheelchair is shipped partially dissembled to protect it during shipping. After unpacking, please check whether you have received the following main components as our standard specification (See Fig.1). 1. Main frame with motor 7. Footrest( left ) 2.

  • Page 3: Safety Instruction

    9. When driving up curbs, always check the height of the curb to ensure that it does not exceed 1-1/2” height. Transfers, Reaching and Bending ansferring on and off the HP7RT requires a good sense of balance. To elimi- nate the possibility of injury, We recommend performing the following tasks before attempting a transfer: →...

  • Page 4: Use While Under The Influence Of Medication Or Alcohol

    The United States Food and drug Administration (FDA) suggests that the following statement be incorporated to the user’s manual for all power wheelchairs like the HP7RT 2.Be aware of nearby transmitters such as radio or TV stations and try to avoid...
  • Page 5 3.If unintended movement or brake release occurs, turn the powered wheelchair off as soon as it is safe. 4.Be aware that adding accessories or components, or modifying the powered wheel- chair, may make it more susceptible to interference from radio wave sources.(Note: It is difficult to evaluate the effect on the overall immunity of the powered wheel- chair).

  • Page 6: Environmental Conditions

    ENVIRONMENTAL CONDITIONS Environmental conditions may affect the safety and performance of your power wheelchair. Water and extreme temperatures are the main elements that can cause damage and affect performance. A) Rain, Sleet and Snow If exposed to water, your power wheelchair is susceptible to damage to electronic or mechanical components.
  • Page 7 ASSEMBLY INSTRUCTION 1.Installing the Saddle set and Seat Connection (Fig 2) Slide the saddle set (#4) into the Connection points (both sides) in the main frame (#1)(See Fig 2), put down the saddle set and connect the front connection point and make sure that tighten the tension knob in the front connection point.
  • Page 8 Allen Key Wrench (Fig 5) (Fig 6) 2. Installing the skirt guard and Armrest 2-1 Install the skirt guards (#10,#11) Place the skirt guard bracket on the seat frame and go through the 2 *M8 bolts into the holes of the seat frame.(See Fig 7), Use the Allen key and wrench to tighten the bolts and nuts(See Fig 8).

  • Page 9: Installing The Backrest

    2-2 Install the Armrest Lift up the armrest bottom tube, take off the E- plastic clip and slide the armrest up tube into the bottom tube (See Fig 11). Then insert the E-plastic clip into the correct location. (See Fig 12) E-plastic clip (Fig 11)
  • Page 10 (Fig 15) (Fig 16) 4. Installing the Headrest Loosen the lever of saddle set, put the headset (#5) into the clamp then fasten the lever. (See Fig17) Saddle set lever (Fig 17 ) 5.Installing the Footrest Insert the footrest ( with left-#7 and Right-#6 each) into footrest frame with side direction(See Fig 18) then turn around 90 degree to correct direction (See Fig 19) and make sure the pin jumping into the correct position.
  • Page 11 (Fig 18) (Fig 19) (Fig 20) 6.Installing Controller and Connect Cables Assemble the controller (#8) on right armrest bracket with 2 screws.(See Fig 21). There are 1 main plug (9 pins) and 2 extended plugs in the other end on the controller. Please plug in the main frame (#1) plugs and connect the other 2 (or 3) plugs color by color (See Fig 22),.

  • Page 12: Adjustments For Seating Confort

    ADJUSTMENTS FOR SEATING CONFORT To maximize seating comfort, your power wheelchair lets you adjust: →Armrest height and angle →Seat depth and width →Headrest angle →Backrest angle and width →Controller position A. Armrest Height and Angle Adjustment A-1:To adjust the Height: wrench (Fig 24) (Fig 25)
  • Page 13 B. Seat Depth and Width Adjustment B-1:To adjust the Depth (Fig 28) → use Allen keys to loosen footrest frame 4 bolts (Fig 28) → slide the footrest frame in or out for desired depth → tighten the bolts with Allen key B-2:To adjust the Width Bolts (Fig 29)
  • Page 14 C. Headrest Angle Adjustment → loosen the headrest lever (back the headrest) → turn the headrest to your desired angle (See Fig 30) → tighten the headrest lever Headrest lever (Fig 30) D. Backrest Angle and Width Adjustment D-1:To adjust the Angle →...

  • Page 15: Controller Position Adjustment

    → tighten the bolts and nuts D-2-2:To adjust the backrest tube → loosen the bolts with Allen key (No #5) → slide in or out for the tube (left and right) separately to your desired width (See Fig 34) → tighten the bolts and nuts. (Fig 33 ) (Fig 34) Allen Key...

  • Page 16: Operation

    For outdoor operation of this vehicle we recommend that you select a speed that is comfortable for you to control it safely. he following steps are required to operate your vehicle safely with the HP7RT controller (See Fig 37)

  • Page 17: Controller Display

    3.Joystick The joystick controls the direction, speed and tilt degree of your vehicle, pointing the joystick away from the neutral position,(center), will move the vehicle in the direction where the joystick is pointing. The farther away (forward/backward) the joystick is from the neutral position, the faster the vehicle will go. The farther away to the right/ left the joystick is pointing, the sharp the turn of the vehicle will be.

  • Page 18: Free-Wheeling

    left. →Red, yellow and green LEDs indicate that the batteries are fully charge →Red and yellow LEDs indicate that you should charge the batteries if possible. →Red LEDs indicate that you should charge the batteries as soon possible, because low battery voltage may cause your power wheelchair to become inoperative.

  • Page 19: Thermal Protection

    Note : Please refer to the section titled to check brake in the Maintenance & Repair section in page 22 to make sure brakes are in good condition. E. Thermal Protection: Your power wheelchair controller is equipped with a safety system called thermal rollback.

  • Page 20: Batteries And Charger

    BATTERIES & CHARGER BATTERY We recommend that you use deep-cycle batteries that are sealed and maintenance free for your power wheelchair. Both sealed lead-acid (SLA) and gel cell are deep-cycle batteries and are similar in performance. Deep-cycle batteries are specifically designed to provide power, drain down, and then accept a relatively quick recharge.
  • Page 21 fully charged. (See Fig 40) Important! Do not use for voltage input except the specified. Make sure your present voltage input (110V or 220V) and adjust manually. (See Fig 41) Plug-in Controller Plug-in Wall Outlet (Fig 41) (Fig 40) Note: →Always charge your batteries in well ventilated areas.

  • Page 22: Maintenance And Repair

    MAINTENANCE & REPAIR Your power wheelchair is designed for minimal maintenance. However, like any motorized vehicle it requires routine maintenance. To keep your HP7RT for years of trouble-free operation, we recommend you follow the following main- tenance checks as scheduled.
  • Page 23 Warning! Failure to maintain the brushes could void the power wheelchair warranty. To inspect or replace the motor brushes: 1.Unscrew the motor brush caps. (See Fig 42) 2.Remove the brushes. 3.Inspect the brushes for wear (See Fig 43) 4.Replace the brushes if necessary. New Motor Brush Worn Motor Brush Motor Brush caps...
  • Page 24 If you get one of these error codes, contract your local dealer. DIAGNOSIS AND SOLUTION FLASHING LIGHTS The battery needs charging or there is a bad connection to the battery. Check the connections to the battery. If the connect- ions are good, try charging the battery. The left motor has a bad connection.
