DS-6600HFHI (/L) Series HD Audio / Video Encoder
Quick Operation Guide
V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-6600HFHI (/L) Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-6600HFHI (/L) Series

Summary of Contents for HIKVISION DS-6600HFHI (/L) Series

  • Page 1 DS-6600HFHI (/L) Series HD Audio / Video Encoder Quick Operation Guide V1.0.0...

  • Page 2: Verify Contents

    Please contact your dealer for damaged or missing items. Pre-Installation The DS-6600HFHI (/L) Series HD Audio/Video Encoder is a highly advanced surveillance equipment that should be installed with care. Please take into consideration the following precautionary steps before installation of the DVS.

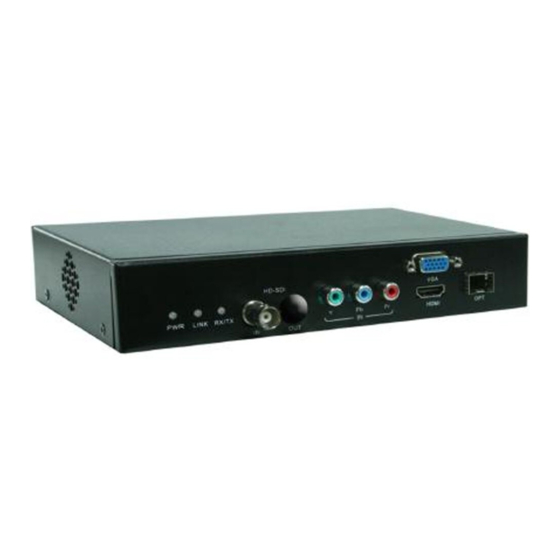

  • Page 3: Front Panel

    Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder Front Panel DS-6601HFHI Item Description Power LED indicator: 1. Lights in red when the device is working; 2. Does not light when the device is powered off. LINK LINK LED indicator: 1. Normally lights in green when the network connection is functioning properly;...

  • Page 4: Rear Panel

    Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder Item Description Power LED indicator: 1. Lights in red when the device is working; 2. Does not light when the device is powered off. LINK LINK LED indicator: 1. Normally lights in green when the network connection is functioning properly;...

  • Page 5: Specifications

    Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder Specifications DS-6601HFHI Model DS-6601HFHI Video compression H.264 1-ch, HD-SDI (800mVp-p, 75Ω) 1920× 1080P/25Hz, 1920× 1080P/30Hz, 1920× 1080I/50Hz, HD-SDI video input 1920× 1080I/60Hz, 1920× 720P/25Hz, 1280× 720P/30Hz, 1920× 720P/50Hz, 1280× 720P/60Hz FC video input Resolution: 1920×...
  • Page 6 Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder DS-6601HFHI/L Model DS-6601HFHI/L Video compression H.264 1-ch, HD-SDI (800mVp-p, 75Ω) HD-SDI video input 1920× 1080P/25Hz, 1920× 1080P/30Hz, 1920× 1080I/50Hz, 1920× 1080I/60Hz, 1280× 720P/25Hz, 1280× 720P/30Hz, 1280× 720P/50Hz, 1280× 720P/60Hz FC video input Resolution: 1920×...

  • Page 7: Adding Device

    Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder Access to DS-6600 by iVMS-4200 Client Software Click “Start””All Programs”“iVMS-4200 Client” to start running the client software. After successful login, you can enter the main control panel of the client software:...

  • Page 8: Starting Live View

    Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder Edit a nickname for the device and then input the IP address, login User Name (default: admin) and Password (default: 12345) of the device. Note: If you check the Private Domain Mode checkbox, you should input the DNS address and Device Mark (the device identifier) as well.
  • Page 9 Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder You can click the buttons on the toolbar to operate in the live view mode, e.g., capture picture, start/stop recording, two-way audio, PTZ control (with PTZ camera connected to the encoder), digital zoom, open/close audio, play back video files, etc.

  • Page 10: Access To Ds-6600 By Web Browser

    Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder Access to DS-6600 by WEB Browser The DS-6600HFHI (/L) can also be accessed by WEB Browser for configuration and operation. The supported WEB browsers include: Internet Explorer 6/7/8/9, Firefox 3.5 and above, Chrome 8 and above, Safari 5.0.2 and above, Windows XP SP1 and above (32-bit).

  • Page 11: Operating Ptz Control

    Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder You can customize the following parameters for the selected main stream or sub stream, including the stream type, resolution, bitrate type, image quality, frame rate, etc. Starting Live View Steps: In the live view window, select a playing window by clicking the mouse.
  • Page 12 Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder Connect the R+ and R terminals of the pan/tilt unit or speed dome to RS-485 T+ and RS-485 T- terminals of the DS-6600 respectively. The baud rate, PTZ control and address configured in the RS-485 Settings interface (Remote Configuration >...
  • Page 13 Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder Check the checkbox of Enable Schedule to enable recording schedule. Choose the day in a week to configure scheduled recording. Click Edit to edit record schedule. Configure All Day or Segment Record: ...
  • Page 14 Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder Playback Before you start The Playback function can be realized only when the Encoder is connected with network disk. Steps: Click Playback on the menu bar to enter playback interface: Click the camera from the device list for playback.
  • Page 15 Quick Operation Guide of DS-6600HFHI (/L) Series HD Audio/Video Encoder Button Operation Button Operation Play Stop all channels from playing Stop Capture pictures in playback mode Slow forward Start/Stop clipping video files Fast forward Audio on/off Play by single frame You can also drag the progress bar with the mouse to locate the exact playback point.
