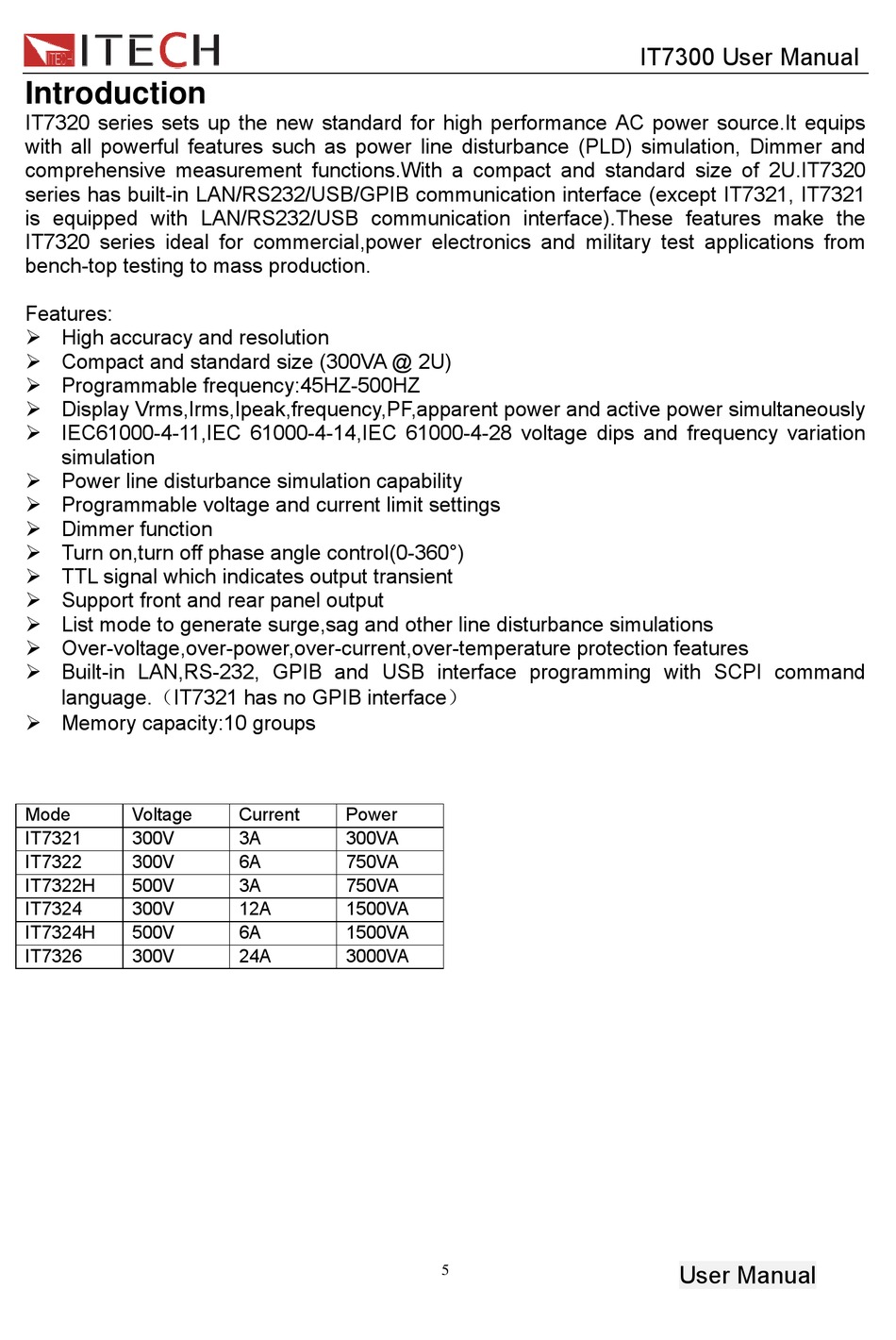

Introduction

IT7320 series sets up the new standard for high performance AC power source.It equips
with all powerful features such as power line disturbance (PLD) simulation, Dimmer and
comprehensive measurement functions.With a compact and standard size of 2U.IT7320
series has built-in LAN/RS232/USB/GPIB communication interface (except IT7321, IT7321
is equipped with LAN/RS232/USB communication interface).These features make the
IT7320 series ideal for commercial,power electronics and military test applications from
bench-top testing to mass production.
Features:
 High accuracy and resolution
 Compact and standard size (300VA @ 2U)
 Programmable frequency:45HZ-500HZ
 Display Vrms,Irms,Ipeak,frequency,PF,apparent power and active power simultaneously
 IEC61000-4-11,IEC 61000-4-14,IEC 61000-4-28 voltage dips and frequency variation
simulation
 Power line disturbance simulation capability
 Programmable voltage and current limit settings
 Dimmer function
 Turn on,turn off phase angle control(0-360°)
 TTL signal which indicates output transient
 Support front and rear panel output
 List mode to generate surge,sag and other line disturbance simulations
 Over-voltage,over-power,over-current,over-temperature protection features
 Built-in LAN,RS-232, GPIB and USB interface programming with SCPI command
language.（IT7321 has no GPIB interface）
 Memory capacity:10 groups
Mode Voltage
IT7321 300V
IT7322 300V
IT7322H 500V
IT7324 300V
IT7324H 500V
IT7326 300V
Current Power
3A 300VA
6A 750VA
3A 750VA
12A 1500VA
6A 1500VA
24A 3000VA
