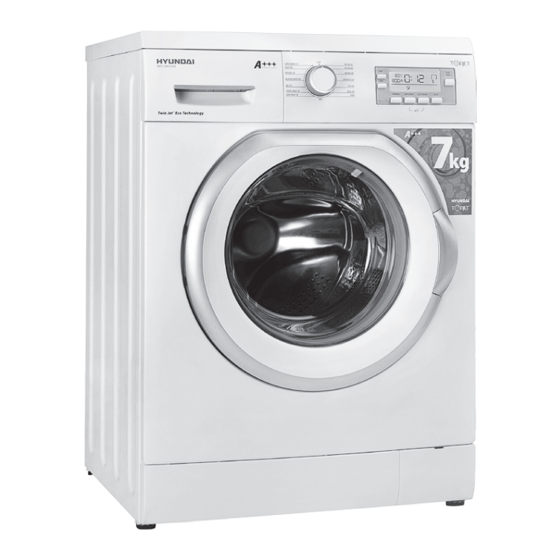

- Page 1 WFC 1047 D10 INSTRUCTION MANUAL AUTOMATIC FULLY ELECTRONIC WASHING MACHINE BEFORE USING THE WASHING MACHINE, YOU SHOULD CERTAINLY READ THE INFORMATION IN USER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS CHAPTER 1: TECHNICAL SPECIFICATIONS ..............3 CHAPTER 2: BEFORE USING WASHING MACHINE ............5 • Safety warnings ......................... 5 • Recommendations ......................6 CHAPTER 3: SETTING UP ....................6 • Removing transport safety screws ..................6 • Adjusting adjustable stays ....................8 • Electrical connection ...................... -
Page 3: Chapter 1: Technical Specifications
CHAPTER 1: TECHNICAL SPECIFICATIONS 1) Detergent drawer 2) Upper tray 3) Programme knob 4) Electronic display 5) Door 6) Cover of pump filter 7) Transport safety screw 8) Power cable 9) Discharging hose 10) Water inlet valve ENG - 3... - Page 4 Brand Hyundai Model WFC 1047 D10 Operating voltage / frequency (V/Hz) (220 - 240) V / 50 Hz Total current (A) Maximum: 1 Mpa Water pressure (Mpa) Minimum: 0,1 MPa Total power (W) 2200 Maximum dry laundry capacity (kg) Wringing revolution (rev / min)
-
Page 5: Chapter 2: Before Using Washing Machine
CHAPTER 2: BEFORE USING YOUR WASHING MACHINE SAFETY WARNINGS SAFETY WARNINGS • Do not use multiple receptacles or extension cord. • Do not plug in damaged or torn plugs. • In case of a breakdown of power cable, contact the nearest authorized service for replacing it. • Never pull the cable when unplugging. -
Page 6: Recommendations
CHAPTER 2: BEFORE USING YOUR WASHING MACHINE SAFETY WARNINGS/RECOMMENDATIONS • You should absolutely remove the transport screws of your machine before the first usage. Faults occurring in the machines operated with transport screw fitted shall be out of scope of warranty. • Do not put discharging hose of your machine in a vessel, bucket or sink. - Page 7 For this reason, transport safety screws shall be loosened by being rotated in counter-clockwise using an appropriate wrench. Transport screws shall be removed by pulling out. Fit the plastic transport screw taps delivered in accessories bag to the places where transport screws have been removed.
-
Page 8: Adjusting Adjustable Stays
CHAPTER 3: SETTING UP ADJUSTING ADJUSTABLE STAYS • Do not install your machine on a carpet or suchlike grounds. • To ensure silent and vibration-free operation of your machine, it should be deployed on a non-sliding and firm ground. • Loosen the plastic adjustment nut. • Adjust the stays upward and downward by rotating them. -
Page 9: Electrical Connection
CHAPTER 3: SETTING UP ELECTRICAL CONNECTION/WATER INLET CONNECTION ELECTRICAL CONNECTION • Your washing machine is set to 220-240V and 50Hz. • Mains cord of your washing machine is equipped with a specific grounded plug. This plug should always be inserted to a grounded receptacle of 10 amperes. Fuse current value of the power line connected to this plug should also be 10 amperes. If you don’t have such a receptacle and fuse confirming with this, please have it done by a qualified electrician. -
Page 10: Water Discharge Connection
CHAPTER 3: SETTING UP WATER INLET CONNECTION/WATER DISCHARGE CONNECTION WATER DISCHARGE CONNECTION • Ensure that water discharge hose is not folded, twisted, crushed or elongated. • Water discharge hose can be fitted minimum 60 cm and maximum 100 cm above the ground. • The end of water discharge hose can be fitted to a specificapparatus directly attached to dirty water discharge hole or outlet joint of the basin elbow. • Never attempt to extend the water discharge hose by jointing. • Do not put discharging hose of your machine in a vessel, bucket or sink. -
Page 11: Chapter 4: Preliminary Preparation For Laundering
CHAPTER 4: PRELIMINARY PREPARATION FOR LAUNDERING SEPARATING LAUNDRIES • Separate your laundries according to their types (cotton, synthetic, sensitive, woollen, etc.), their temperatures (cold, 30°, 40°, 60°, 90°) and degree of contamination (slightly stained, stained, highly stained). • Never wash your coloured and white laundries together. • Wash your coloured laundries separately in the first washing as they may bleed. - Page 12 CHAPTER 4: PRELIMINARY PREPARATION FOR LAUNDERING PUTTING LAUNDRIES IN THE MACHINE • Open the door of your machine. • Spread your laundries in your machine. Note: Maximum loading capacity may vary based on the laundry type you will wash, degree of contamination and the programme you have chosen. Do not exceed maximum dry loading capacity indicated in the programme table for washing programmes.
- Page 13 • Put the laundries separately. • Ensure that no laundry is stuck between the cover and bellow seal when closing the door of your machine. • Push the door of your machine until hearing the locking sound to close it. • Close the door of your machine properly, otherwise your machine will not start the washing operation.
-
Page 14: Chapter 5: Control Panel
CHAPTER 5: CONTROL PANEL ENG - 14... -
Page 15: Detergent Drawer
CHAPTER 5: CONTROL PANEL DETERGENT DRAWER A) Prewashing compartment B) Main washing compartment C) Softener compartment D) Siphon cover E) Liquid level detergent plate CHAPTER 5: CONTROL PANEL PROGRAMME KNOB You may select the programme you like to wash your laundries through programme knob. You may set the programme selection operation by rotating the programme knob in both direction. -
Page 16: Electronic Display
CHAPTER 5: CONTROL PANEL ELECTRONIC DISPLAY 1) Adjusting button for revolution speed 2) Adjusting button for temperature of washing water 3) Auxiliary function prewash 4) Auxiliary function for rapid wash 5) Auxiliary function for easy ironing 6) Auxiliary function for delay timer 7) Start/Pause button 8) Electronic display On the electronic display, you may view washing water temperature, wringing revolution speed... -
Page 17: Chapter 6: Operating Your Machine
CHAPTER 6: OPERATING YOUR MACHINE • Plug your machine in. • Open the water faucet. • Open the machine door. • Spread your laundries in your machine. • Push the door of your machine until hearing the locking sound to close it. • Put detergent and softener in the detergent drawer. - Page 18 CHAPTER 6: OPERATING YOUR MACHINE PROGRAM TABLE PROGRAMME LAUNDRY TYPE Very dirty cotton and flax textiles. (Underwears, linen, tablecloth, 1- WHITE COTTON 03:10 towel (maximum 3,5 kg), bedclothes, etc. 2- COLORFAST Dirty cotton and flax textiles. (Underwears, linen, tablecloth, 03:20 COTTON towel (maximum 3,5 kg), bedclothes, etc. 3- NON COLOR- Dirty cotton and flax textiles. (Underwears, linen, tablecloth, 03:15 FAST COTTON towel (maximum 3,5 kg), bedclothes, etc. Very dirty synthetic or synthetic-mixed textiles.
- Page 19 CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS 1-Revolution speed selection and auxiliary function of soaking You can set the wringing revolution for your laundries via revolution speed setting button. When you select a new programme, the maximum wringing revolution speed of the programme you have selected will be viewed on the display of revolution speed.
- Page 20 2-Washing water temperature selection You can select the washing water temperature with the washing water temperature adjustment button. Whenever you select a new programme, the maximum washing water temperature is shown on the washing water temperature display. You can gradually decrease the washing water temperature between the maximum temperature and cold washing (--) by pressing washing water temperature adjustment button.
- Page 21 5-Auxiliary function for easy ironing You can enable your laundries to be taken out less wrinkled as the washing operation is completed by employing this auxiliary function. 6-Auxiliary function for delay timer By using this auxiliary function, you can let your machine start washing after half an hour to 23 hours.
-
Page 22: Starting The Programme
CHAPTER 6: OPERATING YOUR MACHINE STARTING THE PROGRAMME START/PAUSE BUTTON By pressing on Start/Pause button, you may start the programme you have selected, suspend a running programme. If you switch your machine to pause mode, electronic display will blink. When you start your machine, the following symbols for the programmes you have selected will be available on electronic display. -
Page 23: Child Lock
Note: If symbol blinks on the electronic display, it means that your machine cannot carry out the operation of laundry adding or removing as your machine has passed the steps in question. - Upon completion of laundry adding or removing function, close the door of your machine and press on Start/Pause button. -
Page 24: Cancelling Programme
CHAPTER 6: OPERATING YOUR MACHINE CANCELLING PROGRAMME CANCELLING PROGRAMME If you want to cancel any programme running: - Switch the programme knob to 0. - Your machine will stop the washing operation and the programme will be cancelled. - To get rid of the water accumulated in the machine switch the programme knob to any programme. -
Page 25: Chapter 7: Electronic Display Warning Symbols
CHAPTER 7: ELECTRONIC DISPLAY WARNING SYMBOLS WARNING OF WATER CUT-OFF/LOW MAINS WATER PRESSURE If symbol flashes on the electronic display: - Water faucet may be closed. Check. - Mains water may be cut-off. Check. If so, switch the programme knob to position 0. You can select a programme and run your machine after the mains water is supplied. - Mains water pressure may be low. -
Page 26: Chapter 8: Maintenance And Cleaning Of Your Machine
CHAPTER 8: MAINTENANCE AND CLEANING OF YOUR MACHINE • Unplug your machine. • Turn the water faucet off. WATER INLET FILTERS Filters to avoid dirt and foreign substances in the water from penetrating into the machine are available both on the side of faucet and on the ends of water valves along the water inlet hose of your machine. If your machine cannot intake sufficient amount of water despite water faucet being open, these filters should be cleaned. - Page 27 CHAPTER 8: MAINTENANCE AND CLEANING OF YOUR MACHINE /PUMP FILTER A filter system which avoids threads remaining from your laundries and tiny materials from entering into the pump during water discharging operation carried out by your machine after completing washing so prolonging the lifecycle of your pump is available. It is recommended that you clean your pump filter once in 2 months. To clean pump filter: • Depress the lug downwardly to uncover the pump section of the toe board and pull it towards yourself and extract it.
- Page 28 CHAPTER 8: MAINTENANCE AND CLEANING OF YOUR MACHINE /DETERGENT DRAWER Your detergents may deposit residue in detergent drawer and housing of detergent drawer over time. To clean the residue formed, disassemble the detergent drawer in particular periods. To eject the detergent drawer: • Pull the detergent drawer up to the end • Keep on pulling by depressing on the flush cover in the detergent drawer already being pulled up to the end and then unsettle the detergent drawer.
- Page 29 CHAPTER 8: MAINTENANCE AND CLEANING OF YOUR MACHINE / SIPHON PLUG/BODY/DRUM SIPHON PLUG Disassemble the detergent drawer. Disassemble the flush stopper and clean the softener residues completely. Refit the flush stopper after cleaning it. Check whether it has settled properly. BODY Clean the outer body of your machine with warm water and a noninflammable cleaning agent that will not abrade the body of your machine. After rinsing with some water, dry it using a soft and dry cloth. DRUM Do not leave metallic objects such as needles, paper clips, coins, etc.
-
Page 30: Chapter 9: Practical Information
CHAPTER 9: PRACTICAL INFORMATION Alcoholic drinks: Spotted area should initially be washed using cold water, and then be wiped with glycerine and water and rinsed with vinegar-mixed water. Shoe shine: Spot should be rubbed out gently without damaging the cloth and be scrubbed and rinsed with detergent. - Page 31 Blood stain: Submerge your laundries in cold water for 30 minutes. If the stain is not removed, then submerge in a mixture of water and ammoniac (3 spoons of ammoniac in 4 litres of water) for 30 minutes. Cream, ice cream and milk: Submerge your laundries in cold water and scrub the spotted area with detergent.
-
Page 32: Chapter 10: Troubleshooting
CHAPTER 10: TROUBLESHOOTING All repairing operations required for your machine should be carried out by our authorised service. If your machine requires a repair or if you cannot remove the fault by the help of the information provided as follows: • Unplug your machine. - Page 33 FAULT POSSIBLE CAUSE REMOVING METHODS Adjust the amount of detergent based on Water being hard. (Dirty, hard, etc.) the instruction of detergent manufacturer. Unsatisfactory washing result. Laundries distributed in your machine Spread your laundries in the machine nonhomogenously. properly and homogeneously. As soon as the machine is loaded with The end of water discharging hose is Set the water discharging hose on appropriate...
-
Page 34: Chapter 11: Automatic Fault Warnings And What To Be Done
CHAPTER 11: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE Your machine is equipped with the systems which are capable of both taking necessary precautions and warning you in case of any breakdown by means of continuous self-checking during washing operations. TROUBLE CODE POSSIBLE FAULT WHAT TO DO... - Page 35 We reserve the right to change technical specifications. For any further information, please write to: info@hyundai-electronics.cz WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don’t use it or before a revision. There aren’t any parts in this appliance which are reparable by consumer.
- Page 36 Licensed by Hyundai Corporation, Korea.
