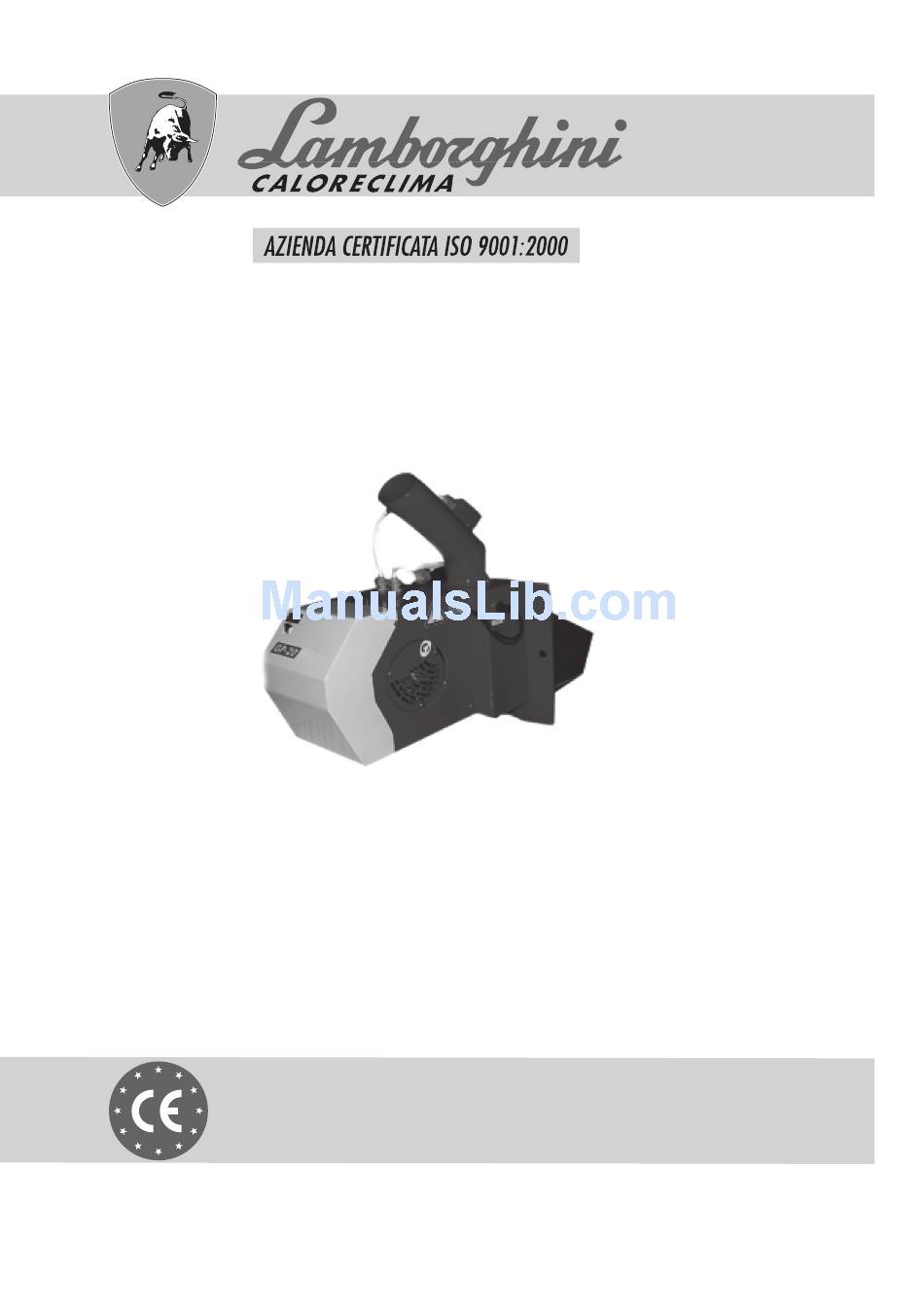

- Page 1 BRUCIATORE A PELLET PELLET BURNER BRÛLEUR À PELLETS GP 20 LIBRETTO DI INSTALLAZIONE E MANUTENZIONE INSTALLATION AND MAINTENANCE MANUAL NOTICE D’INSTALLATION ET D’ENTRETIEN...
- Page 2 Please read the instructions carefully as they provide important information about the safety, installation, use and maintenance of the burner. Keep the manual in a safe place for future consultation. Installation must be carried out by qualified personnel in conformance with technical standards, the national and local laws in force, and the instructions in the manual provided with the equipment.
-
Page 3: Table Of Contents
... on your excellent choice. And thank you for choosing our products. LAMBORGHINI CALORECLIMA is daily committed to the search for innovation technical solutions that will meet all requirements. The constant presence of our products on the Italian and international markets is guaranteed by a widespread network of Agents and Dealers who are backed up by “LAMBORGHINI SERVICE”, which ensures... -
Page 4: Introduction
The pellet burner is created for burning pellets from wooden fragments. It is installed in special boilers or adjusted ones, used to work with another type of fuel. TECHNICAL DATA DESCRIPTION GP 20 Fuel wooden pellets 6-12mm Indulgence power 10-20 Kw... - Page 5 GENERAL • It is absolutely forbidden the eliminating of this protection since it is directly connected to the fire safety. • The contact between the burner and the boiler should be well tight in order to prevent gas leaks in the service room. •...
-
Page 6: Description Of The Construction
GENERAL DESCrIPTION Of THE CONSTrUCTION 40° Burner Auger transporter Flexible tube - 2... -
Page 7: Main Knots And Mechanisms
GENERAL MAIN KNOTS AND MECHANISM The general appearance of the burner together with the feeding auger are shown on Fig. The set contains mainly the following composition parts: - Burner - Auger transporter - Flexible tube - Body, feeding chute and cover - Fan - Ignite heater - Control block... -
Page 8: Spare Parts List
GENERAL SPArE PArTS LIST In correspondence with any of our sales representatives regarding the bought burner, please provide the following infor- mation: 1. Serial number; 2. Working voltage and electricity frequency; 3. Delivery date; 4. Detailed description of the eventual damage; 5. -
Page 9: Position Of The Elements
GENERAL POSITION Of THE ELEMENTS - 1... - Page 10 GENERAL - 2...
- Page 11 GENERAL - ...
-
Page 12: Installation
INSTALLATION CONNECTING TO THE BOILEr • The device should be placed a in way, so there will be enough space for cleaning, removing the soot from the burner, the boiler and the draught pipes. • The burner must be installed in the boiler outlet with the relevant isolation. It must be joined up with nuts. Under one of the nuts there must be put a SPECIAL T-FIGURE TIN DETAIL which is for pushing the limit switch, INFORMING THAT THE BURNER IS INSTALLED. -
Page 13: Electrical Diagram
INSTALLATION ELECTrICAL DIAGrAM Boiler Start burner - signal from the boiler Working thermostat Brown ALARM Power 220 V~ Thermostat Black Neutral conduct Blue Yellow/green Start burner First feeding of the auger Switch – assembled burner Start burner –signal for Thermoswitch logic module Feeding and fitting block Photocell... -
Page 14: Getting In Operation
INSTALLATION GETTING IN OPErATION The device can start only if it is connected to the boiler by a chimney, providing enough traction, there is a pressure and pellets from the pellet transporter. Requirements for supplying pellets during the burner start: - the auger transporter must be placed in a way, so that it can easy get pellets from the bunker. - Page 15 INSTALLATION - If more than few attempts for ignition appear unsuccessful, for example if the fuel ends (parameter C1, set at two attemp- ts), then the device turns off the normal algorithm and a mode ALARM will start – a lamp ALARM will light constantly which is a signal for the user that the reason should be removed.
-
Page 16: Use And Maintenance
USE ANd MAINTENANcE MAINTENANCE ADJUSTING THE CONTROLLING LOGISTICAL MODULE The logistical module controls the burner. It is secured by a password, so that the currently running program will be safe from undesirable changes. The possible settings of the parameters are as they follow (in the brackets are shown the original manufacturer’s settings): - timer T1 –... - Page 17 USE ANd MAINTENANcE Settings of parameters T1, T2, T4, T6 and T7 can be done by the following pattern: - Push button Sel/OK on the logistical module. - A menu with buttons “arrow up” or “arrow down“ appears and a mode PARAMET must be chosen. - Push button Sel/OK.
-
Page 18: Burner Maintenance
USE ANd MAINTENANcE BUrNEr MAINTENANCE The device for pellets burning in designed in a way that it requires minimal maintenance. The maintenance level directly depends of the quality and the size of the used pellets. IMPORTANT! BEFORE STARTING SERVICE AND MAINTENANCE SHUT DOWN THE ELECTRICITY SUPPLYING BY THE BOILER’S MAIN SWITCH! Removing the ash: During the process of wooden pellets burning there remain about 1.5 % ash. -
Page 19: Possible Troubleshooting
USE ANd MAINTENANcE POSSIBLE TrOUBLESHOOTING ATTENTION ALL SERVICES ON THE ELECTRICAL SYSTEM MUST BE DONE BY A QUALIFIED ELECTRICAL TECHNICIAN • WHO HAS CAREFULLY READ THE WORKING MANUAL. The device does not work: - check if the pellets quantity is enough (lamp ALARM lights); - check if the auger transporter works (whether there is pellets feeding);... - Page 20 BrUCIATOrI CALDAIE MUrALI E TErrA A GAS GrUPPI TErMICI IN GHISA E IN ACCIAIO GENErATOrI DI ArIA CALDA TrATTAMENTO ACQUA CONDIZIONAMENTO Le illustrazioni e i dati riportati sono indicativi e non impegnano. La LAMBOrGHINI si riserva il diritto di apportare senza obbligo di preavviso tutte le modifiche che ritiene più...
