AZIENDA CERTIFICATA UNI EN ISO 9001
UNI EN ISO 9001 CERTIFIED COMPANY
TVRTKA S CERTIFIKATOM ISO 9001
PROIZVOD SA SERTIFIKATOM ISO 9001
ДРУЖЕСТВО, СЕРТИФИЦИРАНО ПО UNI EN ISO 9001

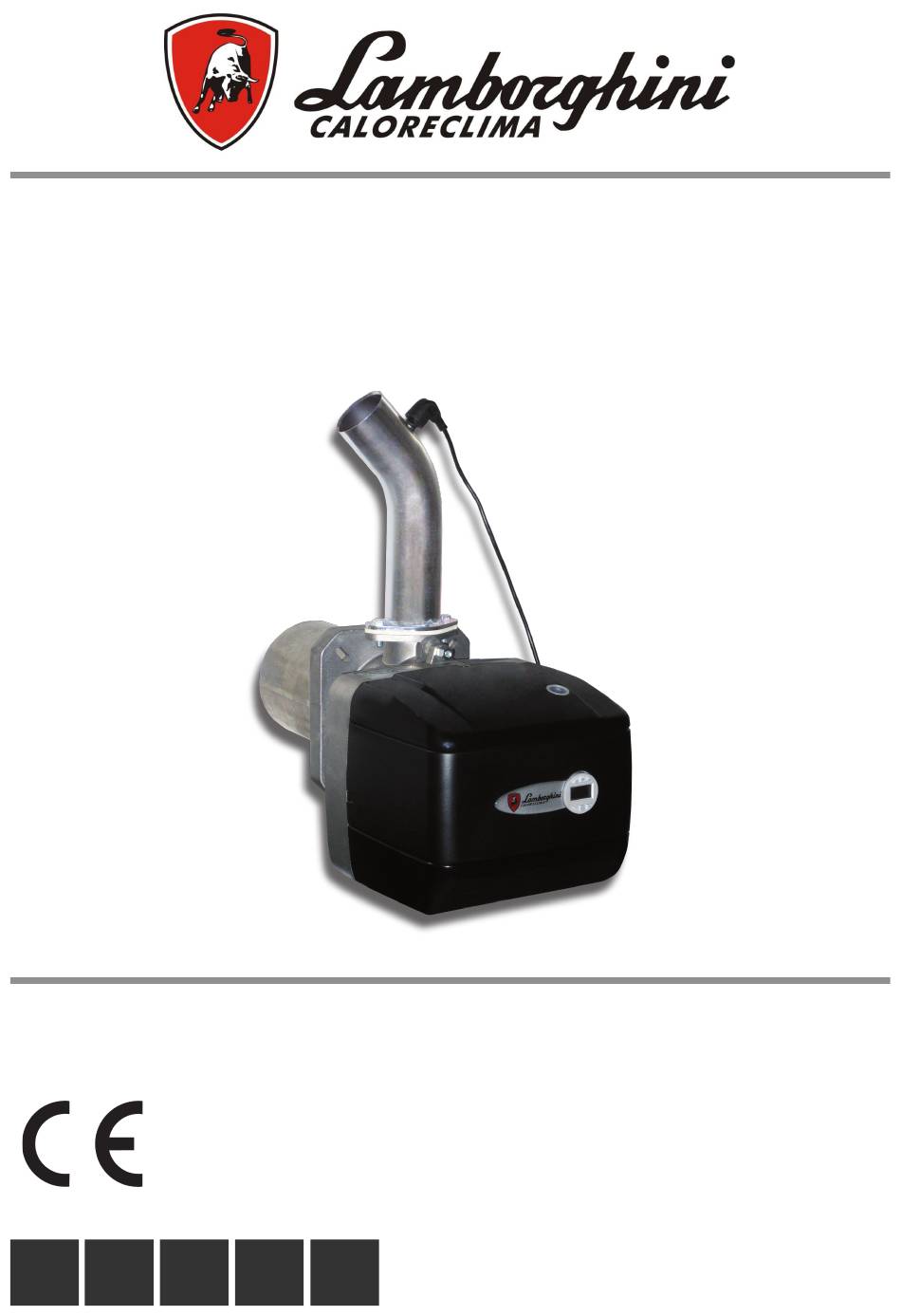

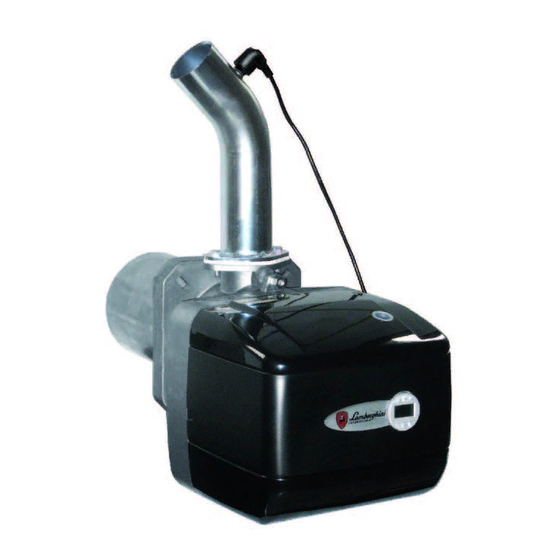

Bruciatore a pellet - Pellet burner
Plamenik na pelete - Gorionik na pelete
Пелетна горелка
ECO 3.4 P
ECO 5.5 P
Libretto uso e manutenzione
Installation and maintenance instructions
PRIRUČNIK ZA UPORABU I ODRŽAVANJE
IT GB HR RS BG
PRIRUČNIK ZA UPOTREBU I ODRŽAVANJE
Инструкции за монтаж и поддръжка
Advertisement
Table of Contents
Related Manuals for Lamborghini Caloreclima ECO 5.5 P
Summary of Contents for Lamborghini Caloreclima ECO 5.5 P
- Page 1 ДРУЖЕСТВО, СЕРТИФИЦИРАНО ПО UNI EN ISO 9001 Bruciatore a pellet - Pellet burner Plamenik na pelete - Gorionik na pelete Пелетна горелка ECO 3.4 P ECO 5.5 P Libretto uso e manutenzione Installation and maintenance instructions PRIRUČNIK ZA UPORABU I ODRŽAVANJE IT GB HR RS BG PRIRUČNIK ZA UPOTREBU I ODRŽAVANJE...
- Page 2 WARNINGS • Carefully read the instructions in this handbook, since they provide important information on safe installation, use and maintenance. • The instruction handbook is an integral part of the product and must be carefully kept by the user for future referen- •...
- Page 3 OPERATING INSTRUCTIONS • Introduction Dear Costumer, Thank you for choosing a burner featuring advanced design, cuttingedge technology, high reliability and quality construction. ECO P is a pellet burner wose compact size and original design make it suitable for use with the ma- jority of solid fuel-burning boilers avaliable on the market.
- Page 4 Indication during Operation Fig.2 Method A Fig.2 Method B and C The lighting request (generated on closing of the contact on terminals T1-T2 (see wiring diagram), in default setting conditions is indicated by activation of the radiator symbol (detail 10-fig.1). •...
- Page 5 3. The two digits of the CURRENT HOUR and the CLOCK icon flash on the display (detail 7-fig.1): set the exact hour with the + and – buttons (detail 4 and 6-fig.1), from 00 to 23. Confirm the hour by pres- sing the day/time setting button (detail 1-fig.1).
-
Page 6: Parameters Menu
3. Press the Programming button” P” (detail. 5 - fig. 1): 4.06:30 on Radiator flash, ON, 1 4.1 Use the + and - buttons (part. 4 e 6 fig. 1) to modify the start of the 1st ON time band; example 06:00 Press the Programming button”... - Page 7 Table 1 Parameter Description Range Default 3.4 P Default 5.5 P Delivery setpoint adjustement 30 – 80 °C 80°C 80°C Burner max. power 1 - 5 Burner operation methods 0 - 2 Press the “operation mode selection – M button (detail.2 - fig.1) for 5 seconds to exit the menu.
-
Page 8: Installation
• Operating instructions Once the burner is installed and correctly adjusted, its operation is fully automatic without requiring any control by the user. In case of anomalies or no fuel, the burner stops and shuts down. It is advisable to fill with before it completely finishes, to avoid irregular burner operation. - Page 9 • Installation in boiler Place of installation The room where the boiler and burner are installed must have openings to the outside as required by current regulations. If there are several burners or exhausters that can work together in the same room, the ventilation openings must be sized for simultaneonus operation of all the units.
- Page 10 • Electrical connections The burner is equipped with a multipole plug for the electrical connections; refer to the wiring diagram “Technical data and characteristics” for the connections. The connections to be made by the installer are: • supply line • request contact •...
-
Page 11: Service And Maintenance
• Pellet loading Pellet loading can be activated within 40 minutes of switching on the power to the burner. Within this time, the system makes avaliable three 5-minute attemps, during which only the auger is activated. The burner cannot be lit during pellet loading. Sequence: 1. -
Page 12: Burner Lighting
02. Burner management (With internal Clock or Contact) The rquest for burner lighting is activated by the Clock (during Automatic Heating Mode in ON Band or with Manual On Heating Mode) or if the contact on terminals T1-T2 is closed (wiring diagram). -It is necessary to set the Clock and possibly modify the weekly programme default setting. - Page 13 • Maintenance The burner requires periodical maintenance which must be performed by qualified personnel at least one a year. The basic operations to carry out are: • checking and cleaning the internals parts of burner and boiler as indicated in the following sections; •...
-
Page 14: Combustion Head
Checks on parts and components Make sure no dust has accumulated inside the fan and on the blades: it reduces the air flow, thus cau- sing pollutant combustion. Combustion head Make sure all parts of the combustion head are integral, not buckled by thehigh temperature, free of impurities coming from the room, and coorectly positioned. -
Page 15: Technical Data And Characteristics
TECHNICAL DATA AND CHARACTERISTICS • Dimensions Ø60 ØD ØG ØH ECO 3.4 P 139.7 ECO 5.5 P • General view and main components 8 Thermostat 85°C 1 Pressure transducer 9 Burner loading tube 2 Contoller 10 Motor 3 Burner body... - Page 16 • Technical data tab Data Unit 3.4 P 5.5 P Max. heating capacity 34.1 Min. heating capacity 13.7 Max. fuel delivery kg/h 11,6 Min. fuel delivery kg/h Electrical protection rating Power voltage/frequency V/Hz 230/50 230/50 Electrical absorption motor Igniter rated power Empty weight Hopper capacity Hopper content...
- Page 17 • Э л е т к р о с х е м а О п и с а н и е Ф о о т р е и з с о т р Д и п с л е й В...
- Page 18 Le illustrazioni e i dati riportati sono indicativi e non impegnano. La Lamborghini Calor si riserva il diritto di ap- portare senza obbligo di preavviso tutte le modifiche che ritiene più opportune per l’evoluzione del prodotto. The illustrations and data given are indicative and not binding. Lamborghini Calor reserves the right to make all modifications it deems appropriate for improvement of the product without forewarning.
