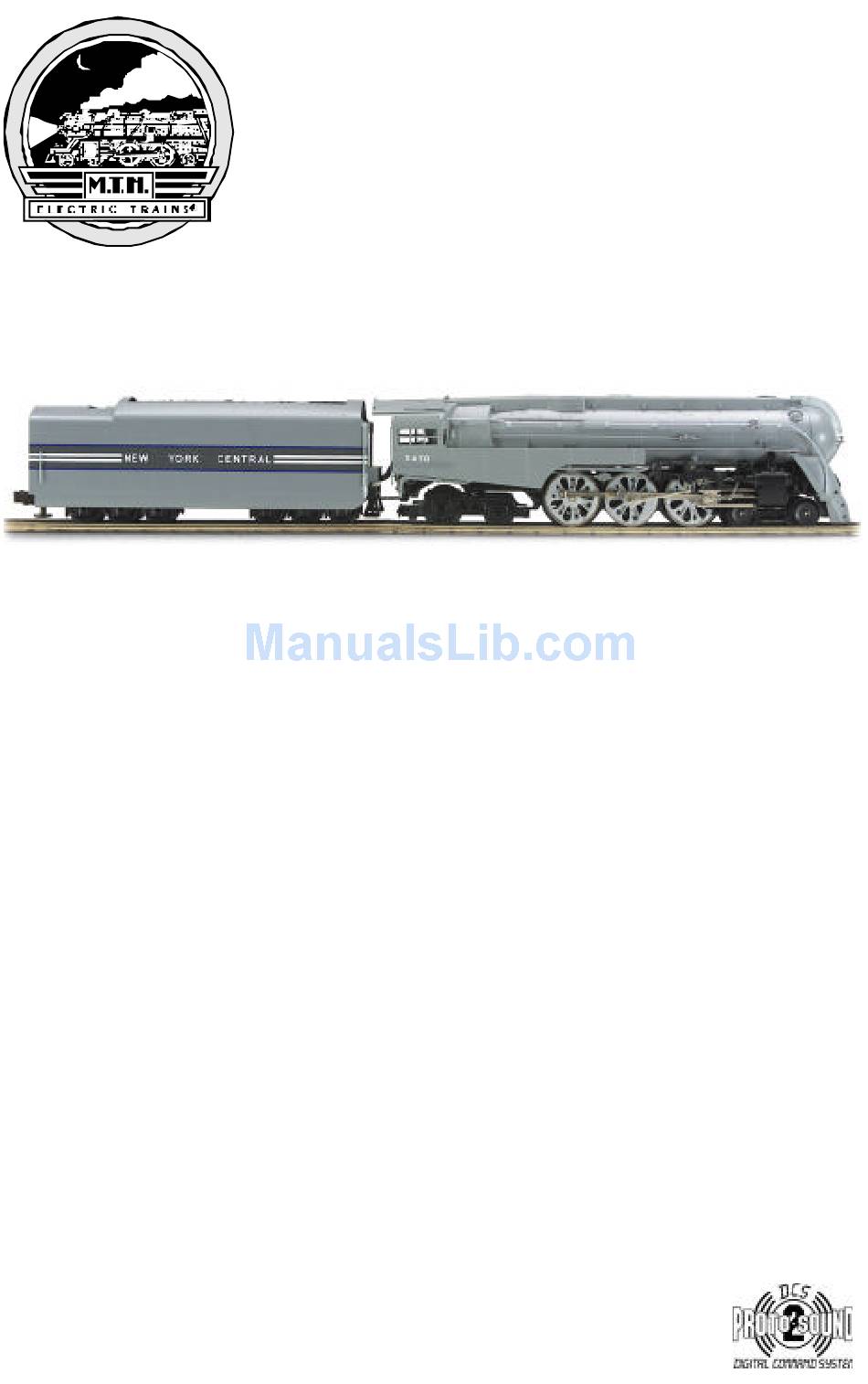

PREMIER DREYFUSS
STEAM ENGINE
OPERATING INSTRUCTIONS
This Premier Dreyfuss features a die-cast boiler and tender and operates on O-42 track.
This Premier Steam Engine contains state-of-the-art electronics with many built-in
automatic features for incredibly realistic operation. Despite these advanced features, the
locomotive is easy to operate with any compatible standard AC transformer that is
equipped with whistle and bell buttons (see the compatibility chart on page 20), and is
compatible with most other 3-rail locomotives, rolling stock, and accessories.
This locomotive is equipped with Proto-Sound 2.0 with Digital Command System
(DCS). This new system will allow you to operate your locomotive in Command mode
(when used with the DCS Remote Control System, sold separately) or Conventional
mode. Conventional operating features are described in the following pages, while the
DCS operating features are covered in the set of operating instructions that
accompanies the DCS equipment. Conventional Mode operation of this locomotive is
much simpler than operation of original Proto-Sound engines. For your own safety and
that of your equipment, please read the instructions before you operate this engine.
Advertisement
Table of Contents
Related Manuals for M.T.H. PREMIER DREYFUSS
Summary of Contents for M.T.H. PREMIER DREYFUSS
-
Page 1: Operating Instructions
PREMIER DREYFUSS STEAM ENGINE OPERATING INSTRUCTIONS This Premier Dreyfuss features a die-cast boiler and tender and operates on O-42 track. This Premier Steam Engine contains state-of-the-art electronics with many built-in automatic features for incredibly realistic operation. Despite these advanced features, the... -
Page 2: Table Of Contents
ProtoSmoke Unit Operation Lubrication and Greasing Instructions Locomotive Traction Tire Replacement Locomotive Light Bulb Replacement Self-Charging Battery Back-Up Troubleshooting Compatibility Transformer Compatibility Chart Additional Features with DCS Remote Control System Safety Precautions Service and Warranty Information Premier Dreyfuss Steam Engine... -
Page 3: Set Up
The second hole is for normal operation on O-42 track. At this point, you are ready to begin running your engine. Figure 1. Connect the Tender to the Engine Premier Dreyfuss Steam Engine... -
Page 4: Basic Operation
(see Fig. 2). Proto-Sound 2.0 Volume Adjustment Knob Figure 2. Manually Adjusting the Proto-Sound 2.0 Volume Premier Dreyfuss Steam Engine... -
Page 5: Proto-Sound 2.0 Operation
1 Bell, 3 Whistles Fire the Rear Coupler 1 Whistle, 2 Bells (from Neutral only) Speed Control On/Off 1 Whistle, 3 Bells Lock into a Direction/Unlock Reset to Factory Defaults 1 Whistle, 5 Bells (from Neutral only) Premier Dreyfuss Steam Engine... -
Page 6: Passenger Station Announcements (Psa)
Once the bell turns off, the operator regains control of the transformer’s bell and whistle buttons and can ring the bell or blow the whistle as usual. Premier Dreyfuss Steam Engine... -
Page 7: Tips On Using Psa
PSA can be triggered from Neutral. It will operate the same as if triggered while in motion except that, at the conclusion of the PSA, the engine will depart in the next direction of travel, as opposed to the direction it was traveling before entering Neutral. Premier Dreyfuss Steam Engine... -
Page 8: Proto-Coupler Operation
Note: When speed control is turned off, the Proto-Sound 2.0 system will limit the volume in order to operate more smoothly at lower voltages. Full volume is restored upon reactivating speed control. Premier Dreyfuss Steam Engine... -
Page 9: Lock Into A Direction State
Squealing Brakes play any time the engine’s speed decreases rapidly. Cab Chatter plays at random intervals when the engine idles in neutral. Engine Start-up and Shut-down sounds play when the engine is initially powered on or is powered off for five seconds or more. Premier Dreyfuss Steam Engine... -
Page 10: Maintenance
15 drops of fluid to prevent the wick from drying out. After removing the engine from storage, add another 25 drops of fluid, letting the wick soak up the fluid for 15 minutes prior to operation. Premier Dreyfuss Steam Engine... - Page 11 Replacement parts and wick replacement instructions are available directly from the M.T.H. Parts Department phone: 410-381-2580 e-mail: parts@mth-railking.com Figure 5. Inspecting the Smoke Unit mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532 Premier Dreyfuss Steam Engine...
-
Page 12: Lubrication And Greasing Instructions
Body Mounting Screws Body Mounting Screws Grease Screw (G) Lubricate Pivot Point (G) Figure 7. Location of Body Mount Screws and Greasing Points on the Locomotive Premier Dreyfuss Steam Engine... -
Page 13: Locomotive Traction Tire Replacement
6. Reinstall the side rods in the same positions as noted. Failure to align rods may cause binding or damage to the drive system. One set of replacement tires is included with your model. Additional sets are available directly from the M.T.H. Parts Department. Premier Dreyfuss Steam Engine... - Page 14 4. Gently push the wires back into the boiler body and reassemble the boiler, being careful not to pinch any wires. Unscrew light bracket Unplug wire from connector Unplug wires Figure 9. Changing the Tender Light. from harness Figure 8. Changing the Headlight. Premier Dreyfuss Steam Engine...
-
Page 15: Locomotive Light Bulb Replacement
Push the replacement bulb into position. 5. Reassemble in reverse order, taking care not to pinch any wires. Bracket that holds firebox light and cab light Figure 10. Replacing the Firebox and Cab Lights. Premier Dreyfuss Steam Engine... -
Page 16: Self-Charging Battery Back-Up
Do NOT use a 6-cell 7.2v battery like those found in most convenience stores. Unhook Wires, Remove and Replace Battery Figure 11. Replacing the Battery Premier Dreyfuss Steam Engine... -
Page 17: Troubleshooting
When I try to fire the coupler, PSA whistle button presses. starts. The Proto-Coupler won’t let the engine Try lubricating the coupler knuckle uncouple on the fly. with a dry graphite lubricant. Do NOT use oil. Premier Dreyfuss Steam Engine... - Page 18 Because there are a limited number of sound clips available in each PSA sequence, it is probable that some of these sound clips will be repeated from time to time. Premier Dreyfuss Steam Engine...
-
Page 19: Compatibility
This engine will operate on any traditional O-42 Gauge track system, ® ™ including M.T.H.’s RealTrax or ScaleTrax or traditional tubular track. It is also compatible with most standard AC transformers. (See page 20 for a complete list of compatible transformers and wiring instructions.) Premier Dreyfuss Steam Engine... -
Page 20: Transformer Compatibility Chart
Standard Lionel SW Unknown 130-Watt Standard Lionel TW 8-18v 175-Watt Standard Lionel ZW A,B,C or D 8-20v 275-Watt Standard Lionel Post-War A,B,C or D Common 0-20v 135/190 Watt Electronic Celebration Series ZW * Conventional Mode Only Premier Dreyfuss Steam Engine... -
Page 21: Additional Features With Dcs Remote Control System
Doppler Operation, including setting distance points for Doppler start, repeat, and stop modes • Independent Volume Control of Engine Sounds, Bell, Horn & Whistle for each Locomotive • Control up to 50 different DCS-Equipped Locomotives at one time with multiple TIUs Premier Dreyfuss Steam Engine... - Page 22 Programming Digital Command Operations for up to 250 Accessories and 250 Individual Switches • User Can Script, Record and Playback Train Routes Operating instructions for all DCS Command features will accompany the DCS remote control equipment. Premier Dreyfuss Steam Engine...
-
Page 23: Safety Precautions
In the event such conditions exist, the transformer should not be used until properly repaired. - As with all electrical appliances, this product should not be left in operation when unattended. Premier Dreyfuss Steam Engine... -
Page 24: Service And Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, do not return your product to the place of purchase. Instead, follow the instructions below to obtain warranty service as our dealer network is not prepared to service the product under the terms of this warranty.
